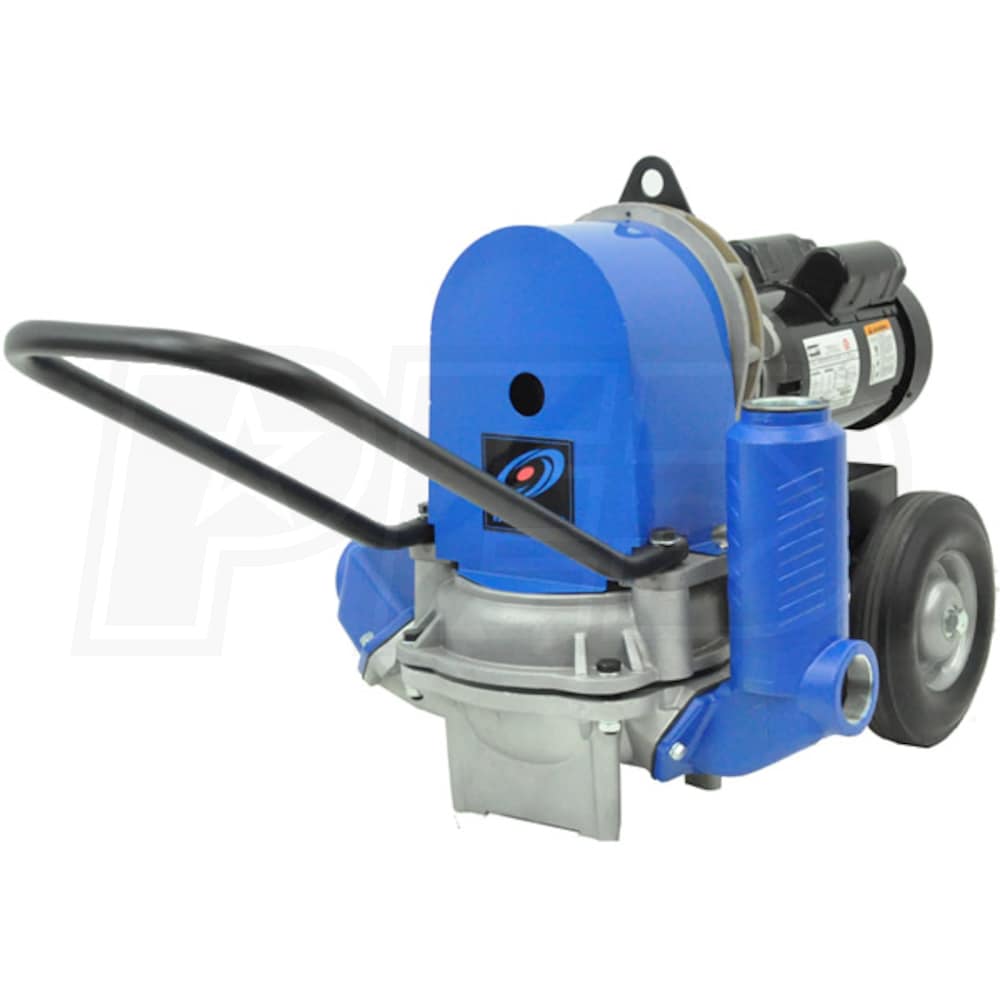

Tsurumi TDE5-200 - 32 GPM (2") Electric Diaphragm Pump w/ Wheel Kit
Model: TD5E-200
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$1,918.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
2"
Style
Diaphragm Pumps
GPM
32
Gallons
Inlet Size
2"
Style
Diaphragm
GPM
32 Gallons
Features
Features
  • Tsurumi Pump 2" Electric Diaphragm Pump
  • Ideal for muddy, slurry and thick liquids (high solid content)
  • Handles solids up to 1-1/4" diameter & Maximum Temperature 180°F
  • 115/230V 1.5 HP Single Phase, AC Motor
  • Manual reset overload protects the engine for maximum life
  • 2-Stage, Forged Gear Driven Transmission
  • Heavy-duty design, operates pump @ 40-strokes per minute
  • Sand Cast Aluminum Construction
  • Helps reduce weight while still being a very durable pump
  • Thermoplastic Santoprene Diaphragm
  • Provides extended "wear" life for more pumping and less maintenance
  • Built-In Check Valve For Faster Priming
  • Helps decrease priming time, once initial prime is created
  • Handle & Wheel Kit
  • Balanced design makes it easy to transport over uneven terrain
  • 90° Rotatable base allows for maximum ease-of-use
  • Modular Component Design
  • Allows for easier maintenance and cleanout
  • Also Includes :
  • 2" Steel Suction Strainer & (2) NPT Nipples
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
32 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.25 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet
GPH @ 0 feet
1920
GPH @ 5 feet
1620
GPH @ 10 feet
1500
GPH @ 15 feet
1260
GPH @ 20 feet
1140
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
165 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
43.3 Inches
Product Width
20.1 Inches
Product Height
23.2 Inches
Additional Model Numbers
TDE5-200, TD5E-200

Inlet Size
2"
Style
Diaphragm Pumps
GPM
32
Gallons
Inlet Size
2"
Style
Diaphragm
GPM
32 Gallons
Features
Features
  • Tsurumi Pump 2" Electric Diaphragm Pump
  • Ideal for muddy, slurry and thick liquids (high solid content)
  • Handles solids up to 1-1/4" diameter & Maximum Temperature 180°F
  • 115/230V 1.5 HP Single Phase, AC Motor
  • Manual reset overload protects the engine for maximum life
  • 2-Stage, Forged Gear Driven Transmission
  • Heavy-duty design, operates pump @ 40-strokes per minute
  • Sand Cast Aluminum Construction
  • Helps reduce weight while still being a very durable pump
  • Thermoplastic Santoprene Diaphragm
  • Provides extended "wear" life for more pumping and less maintenance
  • Built-In Check Valve For Faster Priming
  • Helps decrease priming time, once initial prime is created
  • Handle & Wheel Kit
  • Balanced design makes it easy to transport over uneven terrain
  • 90° Rotatable base allows for maximum ease-of-use
  • Modular Component Design
  • Allows for easier maintenance and cleanout
  • Also Includes :
  • 2" Steel Suction Strainer & (2) NPT Nipples
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
32 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.25 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet
GPH @ 0 feet
1920
GPH @ 5 feet
1620
GPH @ 10 feet
1500
GPH @ 15 feet
1260
GPH @ 20 feet
1140
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
165 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
43.3 Inches
Product Width
20.1 Inches
Product Height
23.2 Inches
Additional Model Numbers
TDE5-200, TD5E-200
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
32 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.25 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet
GPH @ 0 feet
1920
GPH @ 5 feet
1620
GPH @ 10 feet
1500
GPH @ 15 feet
1260
GPH @ 20 feet
1140
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
165 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
43.3 Inches
Product Width
20.1 Inches
Product Height
23.2 Inches
Additional Model Numbers
TDE5-200, TD5E-200
