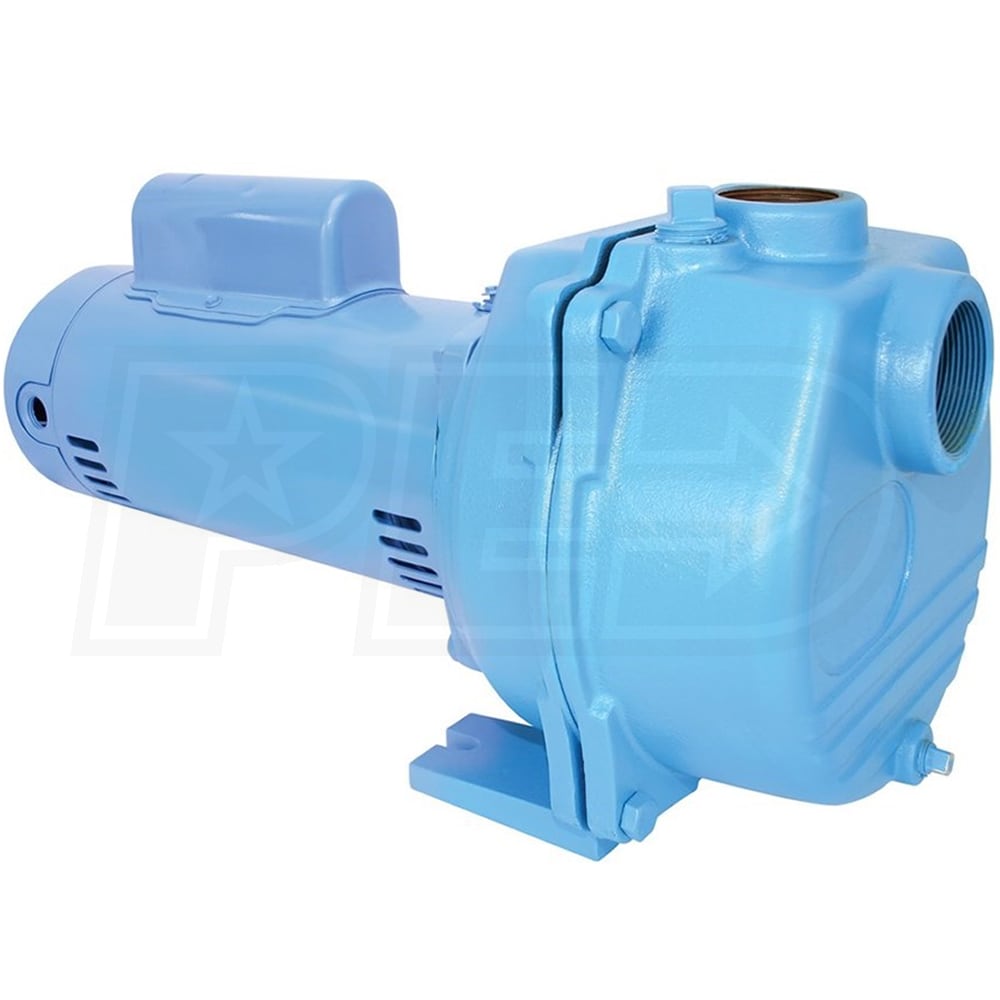

Little Giant LSP-200-C - 97 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump
Model: 558296
+
Share This Product
-
Product Description
-
3Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
97
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
97 Gallons
Features
Features
- 2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of wat
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 230 Volt Heavy-Duty Century Motor (3450 RPM)
- Low amp draw w/ single-phase capacitor start
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
97 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
110 Feet
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
76 Pounds
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119604
Inlet Size
2"
Style

GPM
97
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
97 Gallons
Features
Features
- 2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of wat
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 230 Volt Heavy-Duty Century Motor (3450 RPM)
- Low amp draw w/ single-phase capacitor start
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
97 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
110 Feet
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
76 Pounds
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119604
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
97 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
110 Feet
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
76 Pounds
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119604
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
what is the basic difference between a LSP-200-c Little Giant and a Franklin model FTB2CI-SSi ?
Clyde
from Texas
July 02, 2016
Answer
Besides the 2" suction and 1.5 discharge on the LSP-200-C vs the 1.5" suction AND discharge on the FTB2CI-SSI, the TurfBoss does offer a bit higher flow and pressure rating over the Little Giant model.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

0
No

0
