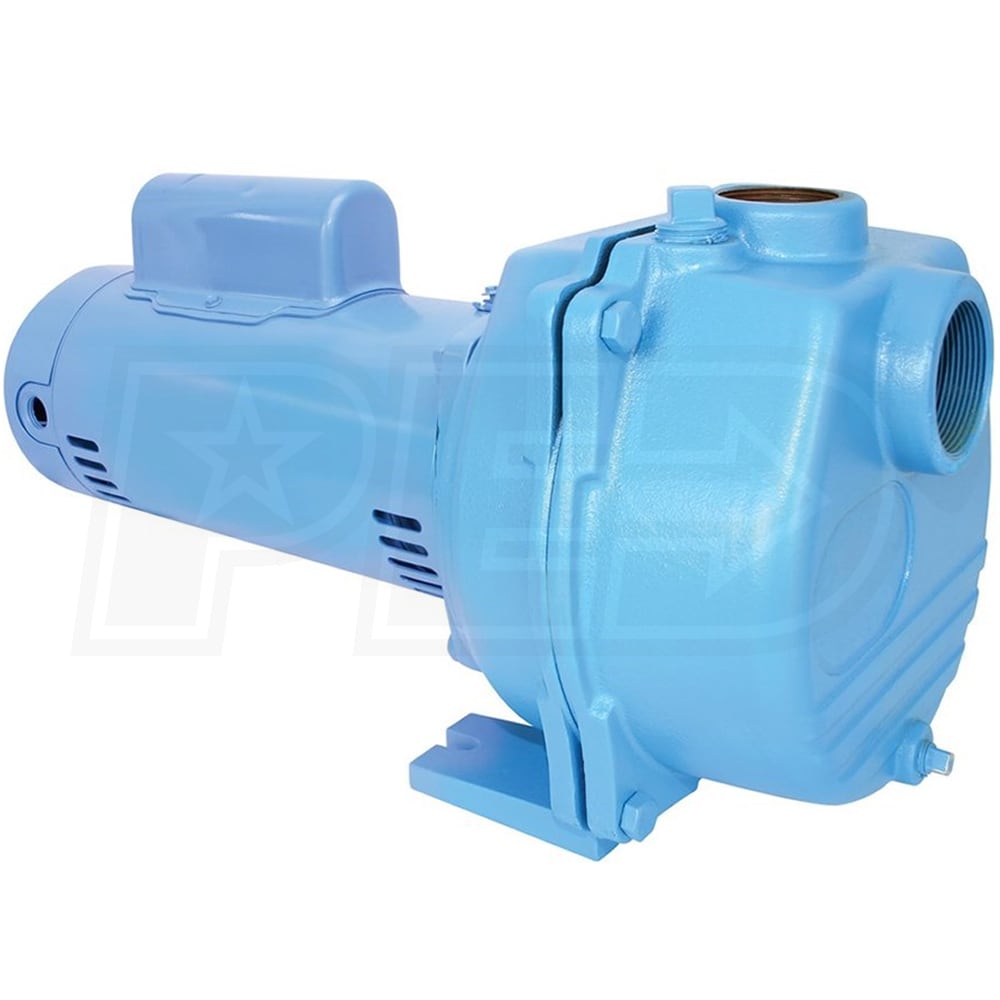

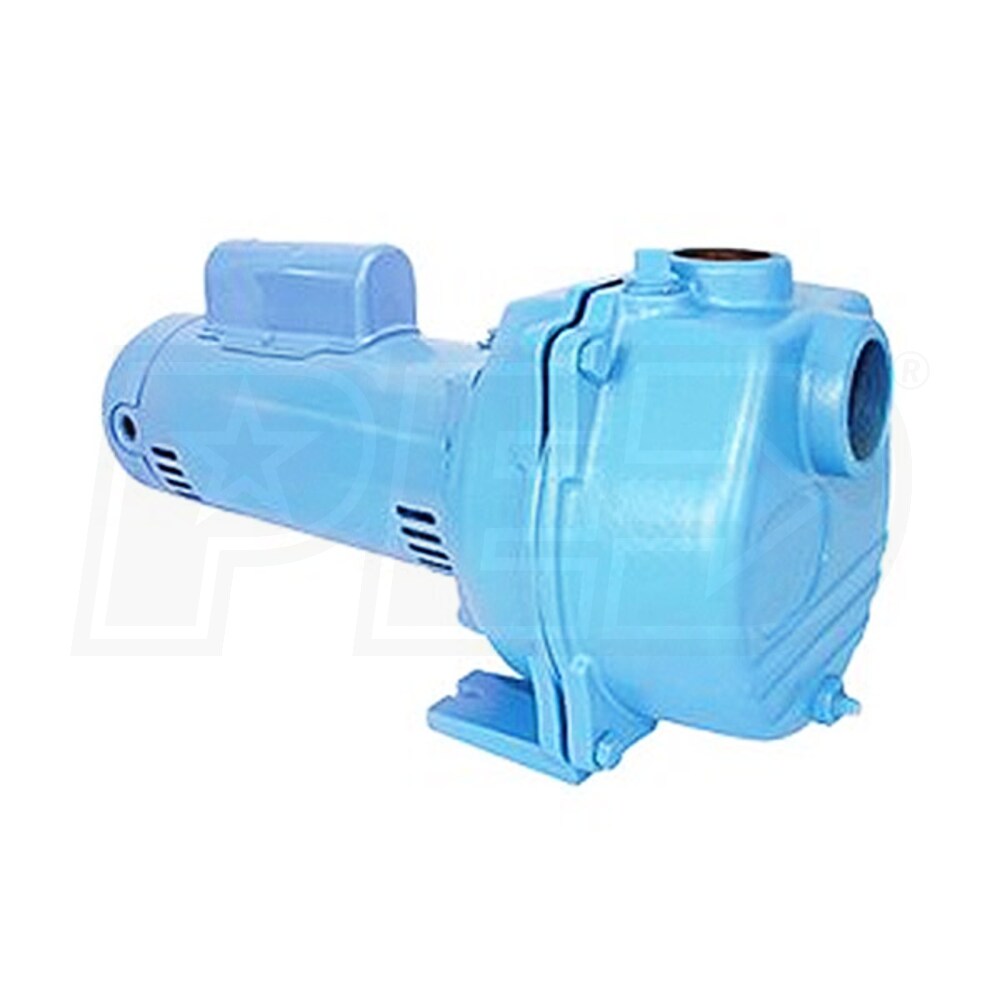

Little Giant LSP-150-C - 90 GPM 1-1/2 HP Cast Iron Sprinkler Pump
Model: 558295
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
90
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
90 Gallons
Features
Features
- 1-1/2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
- Voltage selector for simple connection to existing power source
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal agaisnt water leakage
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
12
Pump
Gallons Per Minute
90 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
47
Total Head Lift
108 Feet
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Weight
72 Pounds
Consumer Warranty
2 Years
Product Length
19.5 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119598
Inlet Size
2"
Style

GPM
90
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
90 Gallons
Features
Features
- 1-1/2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
- Voltage selector for simple connection to existing power source
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal agaisnt water leakage
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
12
Pump
Gallons Per Minute
90 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
47
Total Head Lift
108 Feet
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Weight
72 Pounds
Consumer Warranty
2 Years
Product Length
19.5 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119598
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
12
Pump
Gallons Per Minute
90 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
47
Total Head Lift
108 Feet
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Weight
72 Pounds
Consumer Warranty
2 Years
Product Length
19.5 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119598
