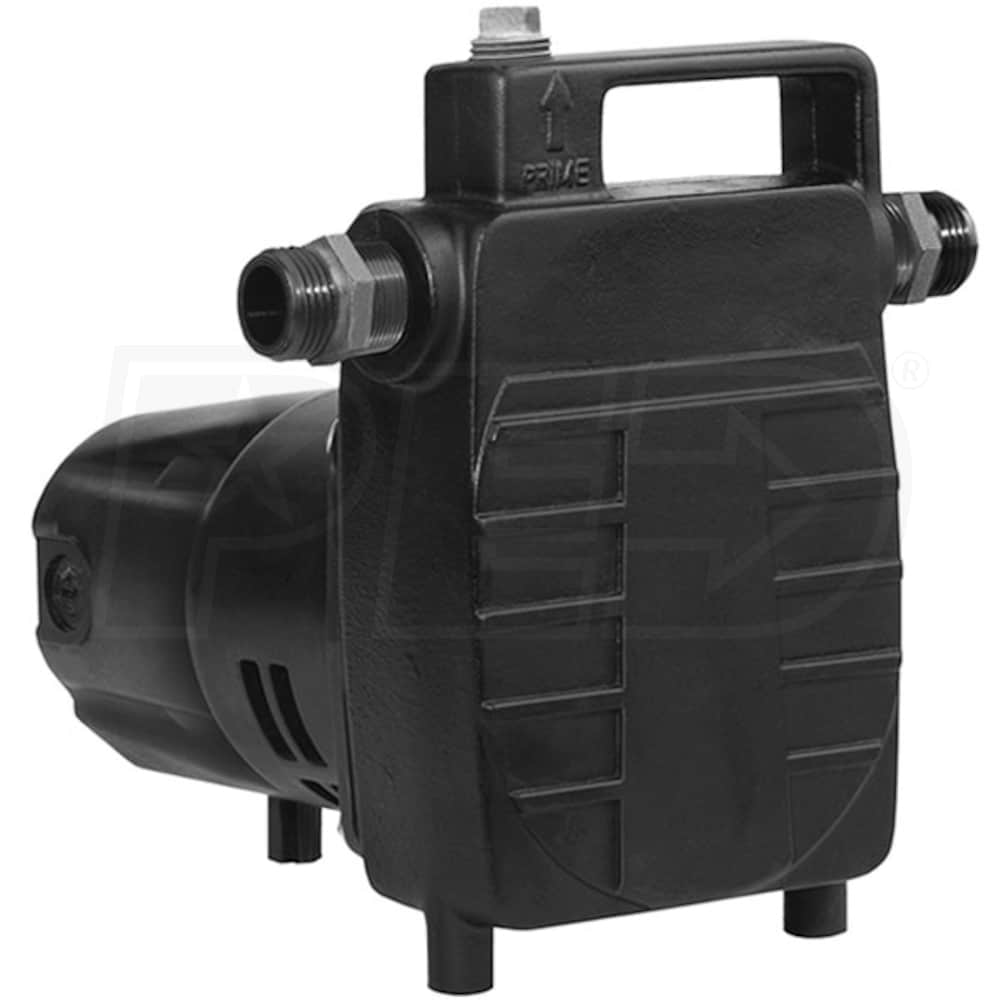

Little Giant UPSP-5 - 20.8 GPM 1/2 HP (3/4") Cast Iron Transfer/Booster Pump
Model: 555101
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3/4"
Style

GPM
20.83
Gallons
Inlet Size
3/4"
Style
Transfer
GPM
20.83 Gallons
Features
Features
- Portable 115-Volt Non-Submersible Transfer Pump
- Ideal for draining water beds, hot water tanks, appliances, etc.
- Can Be Used As A Booster Pump
- Increases household water pressure
- Perfect for for washing vehicles, sidewalks, & driveways
- Cast Iron Pump Housing w/ Epoxy-Coated Finish
- Designed to be rugged and rust resistant
- Built-In Carrying Handle
- Convenient design makes this pump easy to move around
- Self-Priming Design
- Provides up to 15’ vertical lift
- 3/4” Brass Garden Hose Adapters
- Provides strong, stable and secure connections
- 1250 GPH @ 0'
- 1152 GPH @ 20'
- 912 GPH @ 40'
- 648 GPH @ 60'
- 372 GPH @ 80'
- 90 GPH @ 100'
- OFF @ 105'
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
20.83 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Self Priming
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
15 Feet
Total Head Lift
105 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
16.6 Pounds
Consumer Warranty
1 Year
Product Length
9.9 Inches
Product Width
5.45 Inches
Product Height
9.15 Inches
UPC
010121551015
Inlet Size
3/4"
Style

GPM
20.83
Gallons
Inlet Size
3/4"
Style
Transfer
GPM
20.83 Gallons
Features
Features
- Portable 115-Volt Non-Submersible Transfer Pump
- Ideal for draining water beds, hot water tanks, appliances, etc.
- Can Be Used As A Booster Pump
- Increases household water pressure
- Perfect for for washing vehicles, sidewalks, & driveways
- Cast Iron Pump Housing w/ Epoxy-Coated Finish
- Designed to be rugged and rust resistant
- Built-In Carrying Handle
- Convenient design makes this pump easy to move around
- Self-Priming Design
- Provides up to 15’ vertical lift
- 3/4” Brass Garden Hose Adapters
- Provides strong, stable and secure connections
- 1250 GPH @ 0'
- 1152 GPH @ 20'
- 912 GPH @ 40'
- 648 GPH @ 60'
- 372 GPH @ 80'
- 90 GPH @ 100'
- OFF @ 105'
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
20.83 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Self Priming
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
15 Feet
Total Head Lift
105 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
16.6 Pounds
Consumer Warranty
1 Year
Product Length
9.9 Inches
Product Width
5.45 Inches
Product Height
9.15 Inches
UPC
010121551015
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
20.83 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Self Priming
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
15 Feet
Total Head Lift
105 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
16.6 Pounds
Consumer Warranty
1 Year
Product Length
9.9 Inches
Product Width
5.45 Inches
Product Height
9.15 Inches
UPC
010121551015
