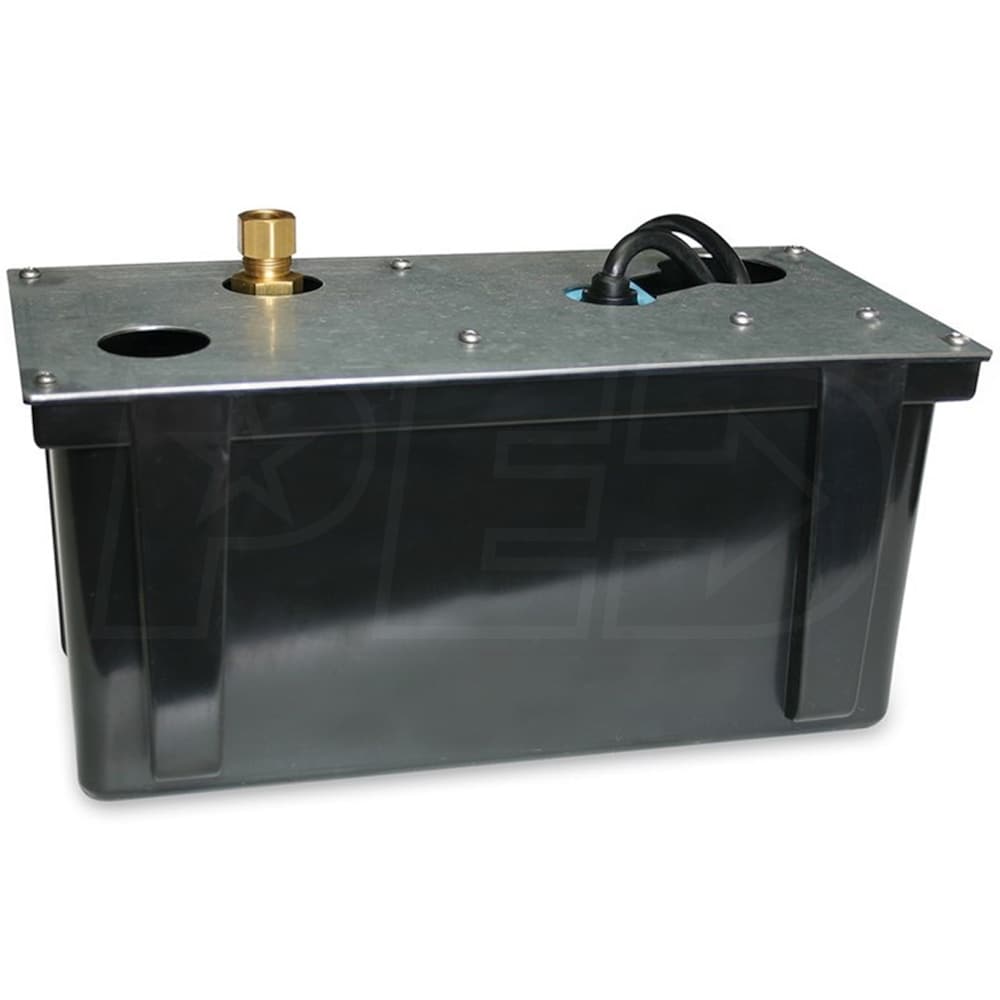

Little Giant 3-ABS - 5.1 GPM Condensate Pump w/ Integrated Float Switch (26' Lift)
Model: 551320
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$218.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
1-1/8"
Style
Condensation Pumps
GPM
5.1
Gallons
Inlet Size
1-1/8"
Style
Condensation
GPM
5.1 Gallons
Features
Features
  • 3-ABS Series Condensate Removal Pump w/ Integrated Float Switch
  • Self-Contained, high-volume, high head design
  • Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
  • Shallow-pan tank is only 5.68" tall (6.5" Tall w/ discharge fitting)
  • 1/12 HP High Performance Motor (115V)
  • Oil-filled and hermetically sealed to prevent overheating
  • Epoxy-Coated Cast Aluminum Pump Housing & Steel Tank Cover
  • Combined with a 1-gallon ABS tank makes this one robust pump
  • 1/2" MNPT Dscharge w/ Brass Check Valve
  • Compression fitting for 1/2" OD copper or rigid plastic tubing
  • Integrated Unique Float Switch For Reliable Automatic Operation
  • Turns On @ 4.5" & Off @ 3.5" and provides switch security
  • Nylon Volute & Impeller, Stainless Steel Shaft
  • No cast iron parts to rust or corrode, makes this pump last
  • Removable Float Housing & Inlet Filter Screen
  • Allows this pump to be or cleared of debris to extend pump life
  • 9-Foot Power Cord w/ Molded Plug
  • Makes this pump easy to install, plug & play, no hardwiring required
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Pump
Gallons Per Minute
5.1 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Maximum PSI
9.1
Total Head Lift
26 Feet
Submersible
No
Engine
Oil-Cooled
Yes
Horsepower
0.08 hp
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Weight
12 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
12.3 Inches
Product Width
6 Inches
Product Height
6.5 Inches
UPC
010121120013

Inlet Size
1-1/8"
Style
Condensation Pumps
GPM
5.1
Gallons
Inlet Size
1-1/8"
Style
Condensation
GPM
5.1 Gallons
Features
Features
  • 3-ABS Series Condensate Removal Pump w/ Integrated Float Switch
  • Self-Contained, high-volume, high head design
  • Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
  • Shallow-pan tank is only 5.68" tall (6.5" Tall w/ discharge fitting)
  • 1/12 HP High Performance Motor (115V)
  • Oil-filled and hermetically sealed to prevent overheating
  • Epoxy-Coated Cast Aluminum Pump Housing & Steel Tank Cover
  • Combined with a 1-gallon ABS tank makes this one robust pump
  • 1/2" MNPT Dscharge w/ Brass Check Valve
  • Compression fitting for 1/2" OD copper or rigid plastic tubing
  • Integrated Unique Float Switch For Reliable Automatic Operation
  • Turns On @ 4.5" & Off @ 3.5" and provides switch security
  • Nylon Volute & Impeller, Stainless Steel Shaft
  • No cast iron parts to rust or corrode, makes this pump last
  • Removable Float Housing & Inlet Filter Screen
  • Allows this pump to be or cleared of debris to extend pump life
  • 9-Foot Power Cord w/ Molded Plug
  • Makes this pump easy to install, plug & play, no hardwiring required
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Pump
Gallons Per Minute
5.1 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Maximum PSI
9.1
Total Head Lift
26 Feet
Submersible
No
Engine
Oil-Cooled
Yes
Horsepower
0.08 hp
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Weight
12 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
12.3 Inches
Product Width
6 Inches
Product Height
6.5 Inches
UPC
010121120013
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Pump
Gallons Per Minute
5.1 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Maximum PSI
9.1
Total Head Lift
26 Feet
Submersible
No
Engine
Oil-Cooled
Yes
Horsepower
0.08 hp
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Weight
12 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
12.3 Inches
Product Width
6 Inches
Product Height
6.5 Inches
UPC
010121120013
