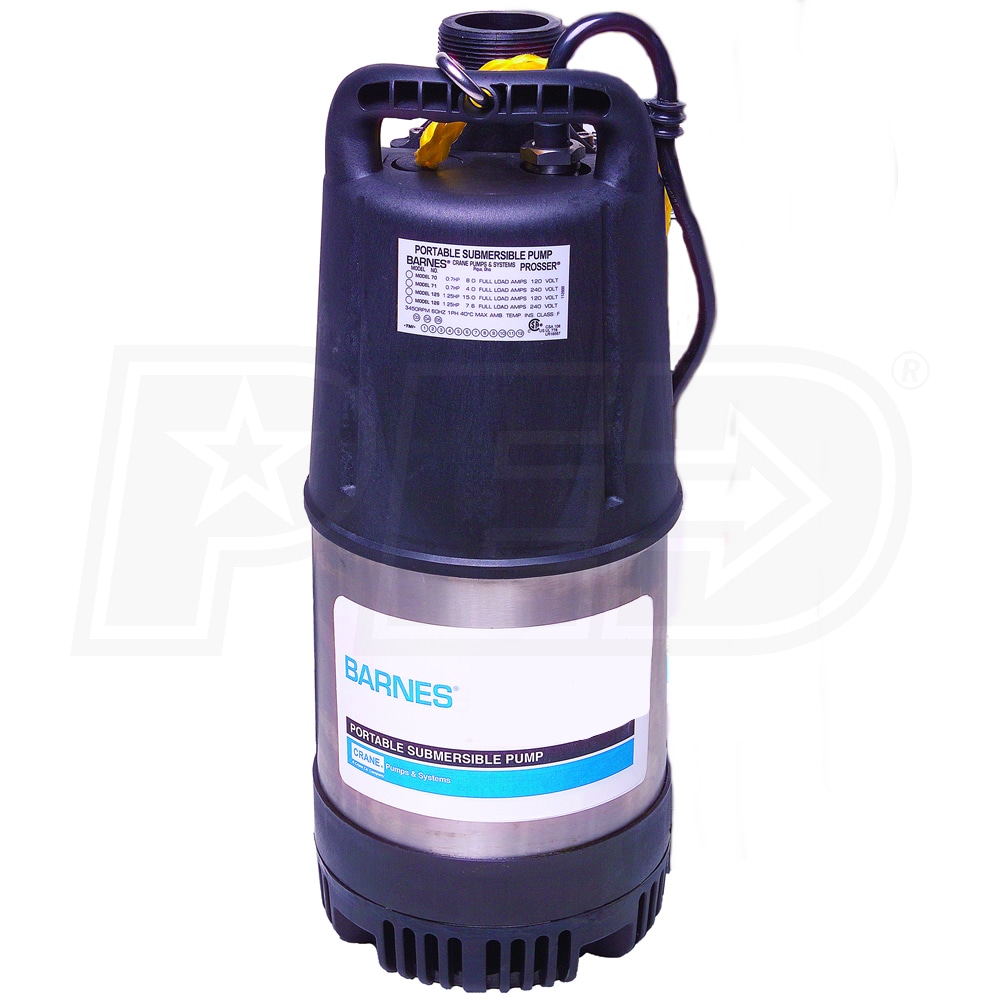

Barnes 126 - 105 GPM 1-1/4 HP Submersible Utility Pump (240V)
Model: 115126
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$818.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Utility Pumps
GPM
105
Gallons
Inlet Size
N/A
Style
Utility
GPM
105 Gallons
Features
Features
  • Barnes 126 - 1-1/4 HP Contractor-Grade Submersible Utility Pump (240V)
  • Ideal for water-removal on the jobsite or around the yard
  • Stainless Steel Motor Housing
  • Robust design for extended life in the most demanding applications
  • 1-1/4 HP Squirrel Cage Induction Motor - NEMA L (240V)
  • Water-cooled, with capacitor start/run and overload protection built-in
  • Non-Metallic Volute & Polyurethane Impeller
  • Allows for operation in up to 104F water
  • Rubberized, Non-Metallic Strainer
  • Helps extend pump life when small solids are present in water (1/4")
  • Double Mechanical Seals (Silicon/Carbide - Pump) & (Ceramic - Motor)
  • Assures maximum protection against pump failure
  • 420 Stainless Steel Motor Shaft
  • Robust design helps increase life-span of pump
  • 50' Power Cord w/ Bare Lead
  • Makes it easy to connect pump, even in remote locations
  • Compact Design - Only 7.5" Diameter
  • Allows this pump to operate in small spaces
  • High Capacity 2" Discharge
  • Provides up to 105 GPM of output
  • Dry Run Capability
  • Great for applications where water-removal levels vary
  • Also Includes Lifting Handle & 25' Polypropylene Lifting Rope (3/8")
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
7.6
Thermal Protection
Yes
Power Cord Length
50 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
105 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Stainless Steel
Impeller Material
Composite
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
50 Feet
Submersible
Yes
Engine
Horsepower
1.25 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Length
7.17 Inches
Product Height
18.54 Inches

Inlet Size
N/A
Style
Utility Pumps
GPM
105
Gallons
Inlet Size
N/A
Style
Utility
GPM
105 Gallons
