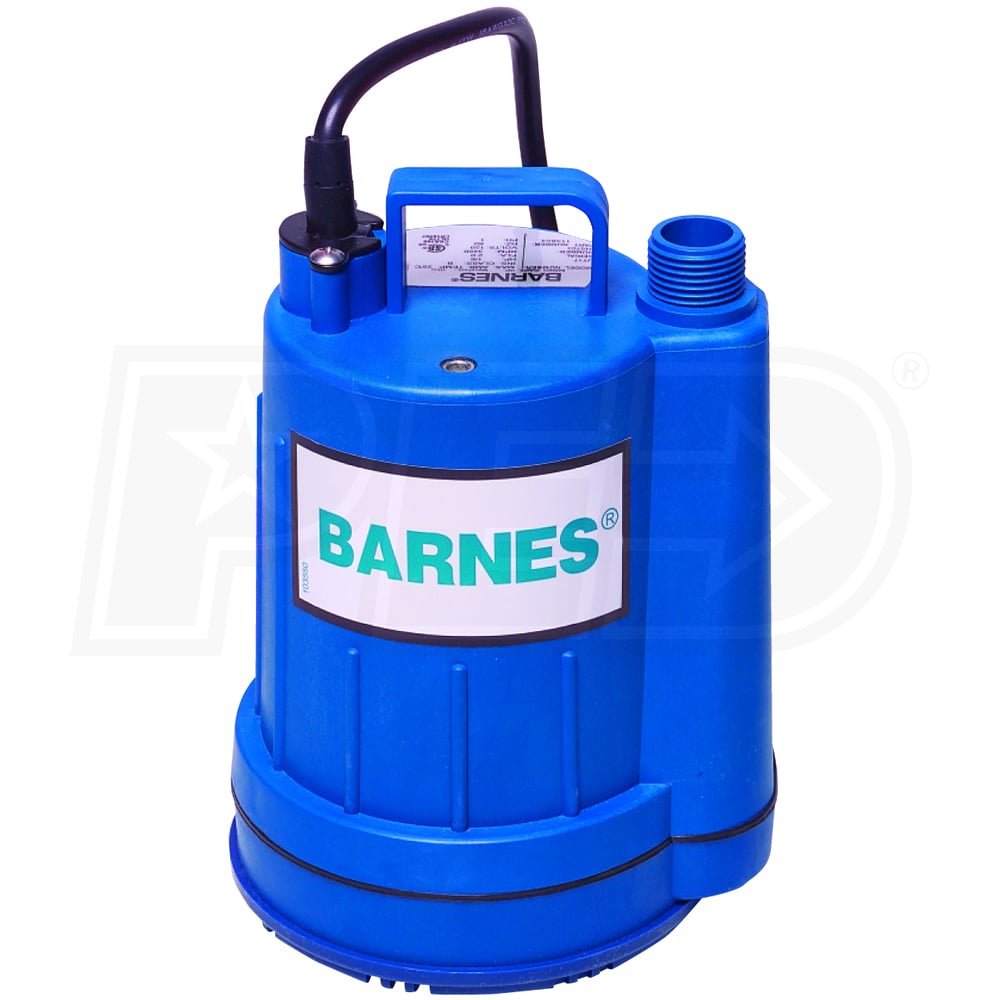

Barnes UT17 - 16 GPM 1/6 HP Submersible Utility Pump

Model:

113824

Write A Review
$105.00
Was $121.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Product Discontinued
Sorry, this product is currently unavailable.
Continue Shopping With These Categories
Shop All Fountain Pumps
Shop Barnes Utility Pumps
Barnes UT17 - 16 GPM 1/6 HP Submersible Utility Pump
Barnes UT17 - 16 GPM 1/6 HP Submersible Utility Pump
Model: 113824
$105.00
Was $121.00
Product Discontinued
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Utility

GPM

16 Gallons

  • Barnes UT17 - 1/6 HP Submersible Utility Pump
  • Great for a wide variety of dewatering applications
  • Thermoplastic Pump Body & Strainer
  • Corrosion-resistant design provides long life in sump applications
  • 1/6 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 2.0 FLA
  • 2-Vane, Semi-Open Thermoplastic Impeller
  • Allows for easy-passage of spherical solids up to 1/8"
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Bottom-Intake Design
  • Removes water to within 1/8" of surface
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • 3/4" Discharge
  • Can be used with standard garden hoses
  • 15-Power Cord w/ 3-Prong Plug
  • Allows for simple, plug-n-play operation
  • 2-Year Limited Warranty

Specifications

113824
specs product image PID-80838
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
16 Gallons
Outlet Diameter
3/4 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.125 inch
Handles Solids
Yes

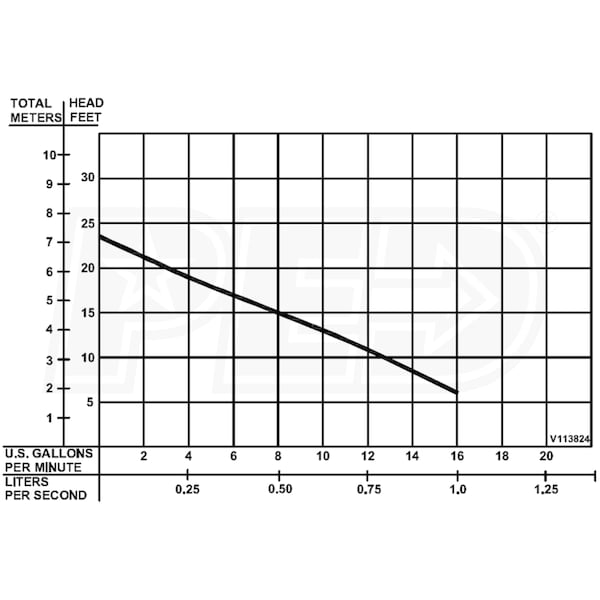

Total Head Lift
23 Feet
Submersible
Yes
Engine
Horsepower
0.16 hp
Overview
Weight
7 Pounds
Consumer Warranty
2 Years
Product Length
6.07 Inches
Product Width
5.47 Inches
Product Height
8.37 Inches
