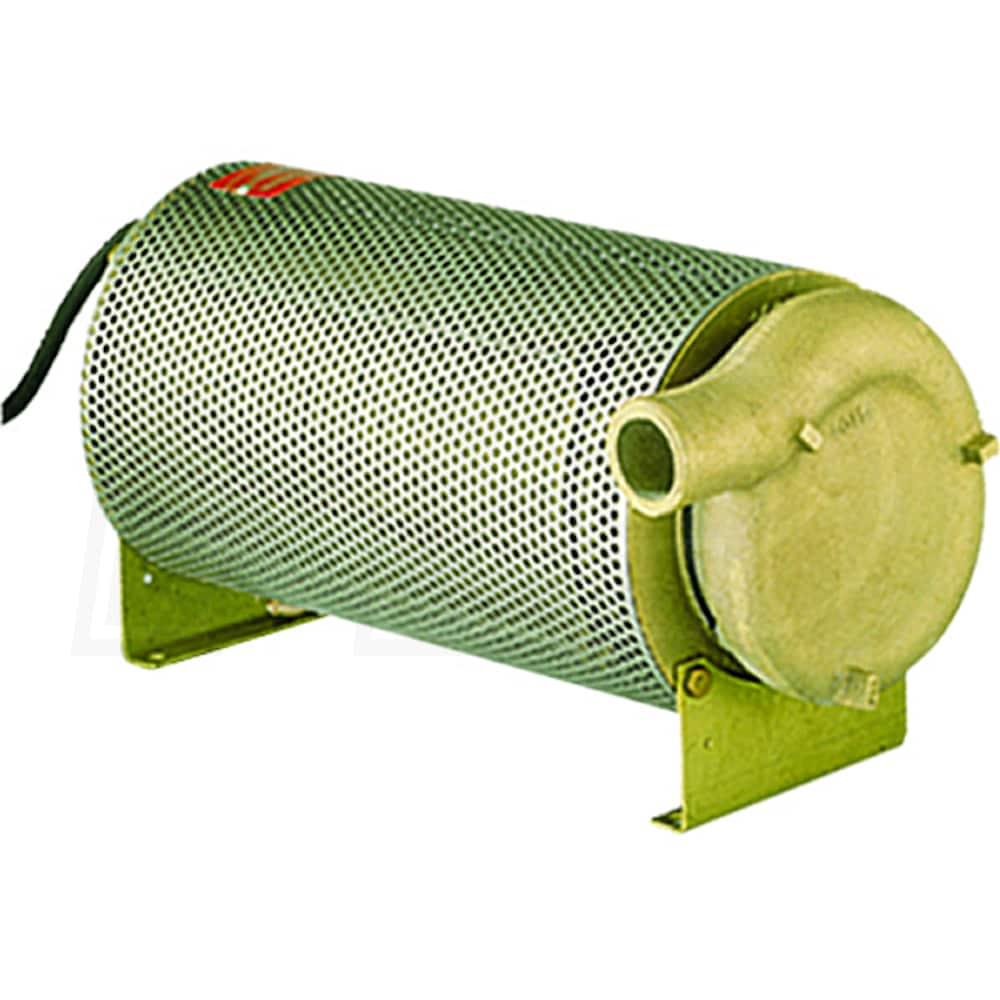

Barnes SFU51 - 1/2 HP Submersible Brass Fountain Pump
Model: 087782
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$1,299.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
N/A
Style
Fountain Pumps
GPM
78
Gallons
Inlet Size
N/A
Style
Fountain
GPM
78 Gallons
Features
Features
  • Barnes SFU51 - SFU Series 1/2 HP Submersible Fountain Pump
  • Designed for use in decorative water displays
  • Brass & Stainless Steel Construction
  • Helps extend pump life in aquatic applications
  • 304 Stainless Steel Intake Screen
  • Wrap-around design, with 5/32" diameter mesh helps prevent clogging
  • 1/2 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 9.5 FLA
  • Four-Vane Brass Impeller
  • Open design, allows for passage of small solids
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Motor Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated Ball (Motor End) & Sleeve (Pump End) Bearings
  • Provides increased life-span and quieter operation
  • 12-Foot 16/3 SOW Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Brass
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Starting Amps
21
Pump
Gallons Per Minute
78 Gallons
Outlet Diameter
1-3/4"
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
42 Feet
Submersible
Yes
Engine
Horsepower
0.5 hp
Overview
Weight
52 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches

Inlet Size
N/A
Style
Fountain Pumps
GPM
78
Gallons
Inlet Size
N/A
Style
Fountain
GPM
78 Gallons
Features
Features
  • Barnes SFU51 - SFU Series 1/2 HP Submersible Fountain Pump
  • Designed for use in decorative water displays
  • Brass & Stainless Steel Construction
  • Helps extend pump life in aquatic applications
  • 304 Stainless Steel Intake Screen
  • Wrap-around design, with 5/32" diameter mesh helps prevent clogging
  • 1/2 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 9.5 FLA
  • Four-Vane Brass Impeller
  • Open design, allows for passage of small solids
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Motor Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated Ball (Motor End) & Sleeve (Pump End) Bearings
  • Provides increased life-span and quieter operation
  • 12-Foot 16/3 SOW Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Brass
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Starting Amps
21
Pump
Gallons Per Minute
78 Gallons
Outlet Diameter
1-3/4"
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
42 Feet
Submersible
Yes
Engine
Horsepower
0.5 hp
Overview
Weight
52 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches
Product Specs
+−
Specifications
Base
Base Material
Brass
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Starting Amps
21
Pump
Gallons Per Minute
78 Gallons
Outlet Diameter
1-3/4"
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
42 Feet
Submersible
Yes
Engine
Horsepower
0.5 hp
Overview
Weight
52 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches
