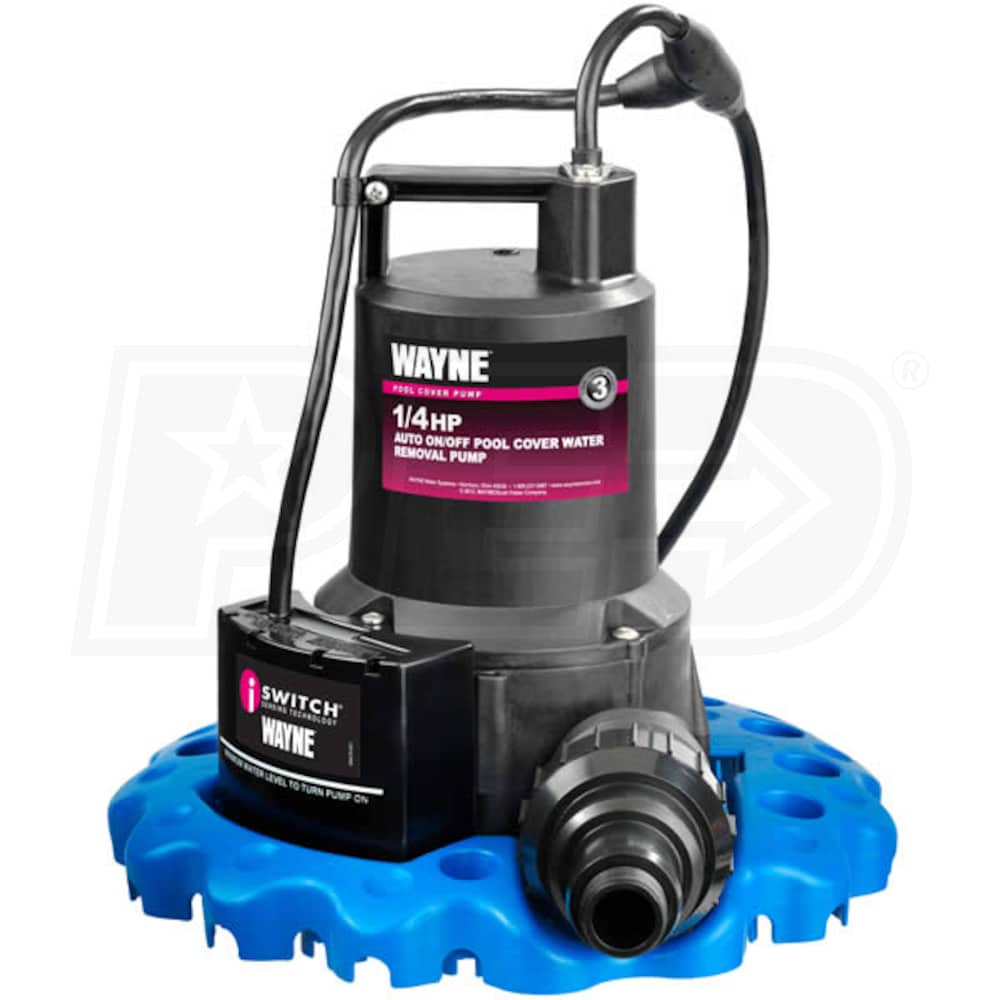

Wayne WAPC250 - 50 GPM 1/4 HP Automatic iSwitch® Pool Cover Pump
Model: WAPC250
+
Share This Product
-
Product Description
-
95Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
50
Gallons
Inlet Size
N/A
Style
Pool Cover
GPM
50 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic iSwitch® Pool Cover Pump
- Plug-In & leave the pump unattended for worry-free water removal
- Oil-Free Energy Efficent 1/4 HP Motor Rated @ Only 2.5 Amps
- Pumps Up To 3000 GPH
- iSwitch® Sensing Technology (2-1/2 On & 3/4" Off)
- Microprocessor controlled for optimal operation
- Sealed Thermoplastic Construction For Submersible Use
- With built-in debris and ice overload protection for added safety
- Check Valve Reducer (1-1/4" to 3/4")
- Minimizes short-cycling by keeping the pump primed.
- Built-In Strainer
- Filters debris to miminze cloggin
- 25-Foot Power Cord w/ 25-Foot "Pull To Shore" Rope
- Prevents damage to the pump cord & makes it easy to retrieve
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Power Cord Length
25 Feet
Pump
Gallons Per Minute
50 Gallons
Outlet Diameter
1-1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
GPH @ 0 feet
3000
GPH @ 5 feet
2350
GPH @ 10 feet
1600
GPH @ 15 feet
900
Built-in check Valve
Yes
Max Head
17 Feet
Submersible
Yes
Engine
Oil-Cooled
No
Horsepower
0.3 hp
Overview
Weight
13 Pounds
Consumer Warranty
3 Years
UPC
040066214973
Inlet Size
N/A
Style

GPM
50
Gallons
Inlet Size
N/A
Style
Pool Cover
GPM
50 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic iSwitch® Pool Cover Pump
- Plug-In & leave the pump unattended for worry-free water removal
- Oil-Free Energy Efficent 1/4 HP Motor Rated @ Only 2.5 Amps
- Pumps Up To 3000 GPH
- iSwitch® Sensing Technology (2-1/2 On & 3/4" Off)
- Microprocessor controlled for optimal operation
- Sealed Thermoplastic Construction For Submersible Use
- With built-in debris and ice overload protection for added safety
- Check Valve Reducer (1-1/4" to 3/4")
- Minimizes short-cycling by keeping the pump primed.
- Built-In Strainer
- Filters debris to miminze cloggin
- 25-Foot Power Cord w/ 25-Foot "Pull To Shore" Rope
- Prevents damage to the pump cord & makes it easy to retrieve
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Power Cord Length
25 Feet
Pump
Gallons Per Minute
50 Gallons
Outlet Diameter
1-1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
GPH @ 0 feet
3000
GPH @ 5 feet
2350
GPH @ 10 feet
1600
GPH @ 15 feet
900
Built-in check Valve
Yes
Max Head
17 Feet
Submersible
Yes
Engine
Oil-Cooled
No
Horsepower
0.3 hp
Overview
Weight
13 Pounds
Consumer Warranty
3 Years
UPC
040066214973
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Power Cord Length
25 Feet
Pump
Gallons Per Minute
50 Gallons
Outlet Diameter
1-1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
GPH @ 0 feet
3000
GPH @ 5 feet
2350
GPH @ 10 feet
1600
GPH @ 15 feet
900
Built-in check Valve
Yes
Max Head
17 Feet
Submersible
Yes
Engine
Oil-Cooled
No
Horsepower
0.3 hp
Overview
Weight
13 Pounds
Consumer Warranty
3 Years
UPC
040066214973
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Can this pump be used with a larger, 1.25" drain hose or can it only be used with a garden hose?
Nick
from Connecticut
February 11, 2018
Answer
Yes, you can use a 1.25" drain hose, but please be aware that the 1.25" port on the side of the pump is an NPT female port, so you may need a nipple to connect the hose. You may also need to purchase a 1.25" check valve.
