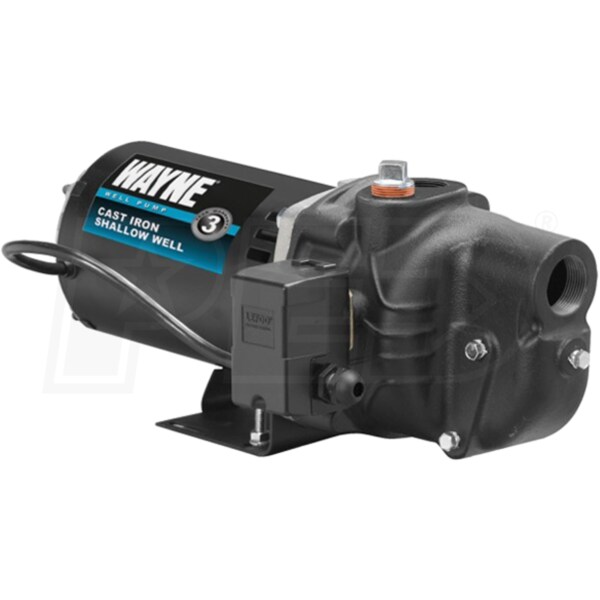

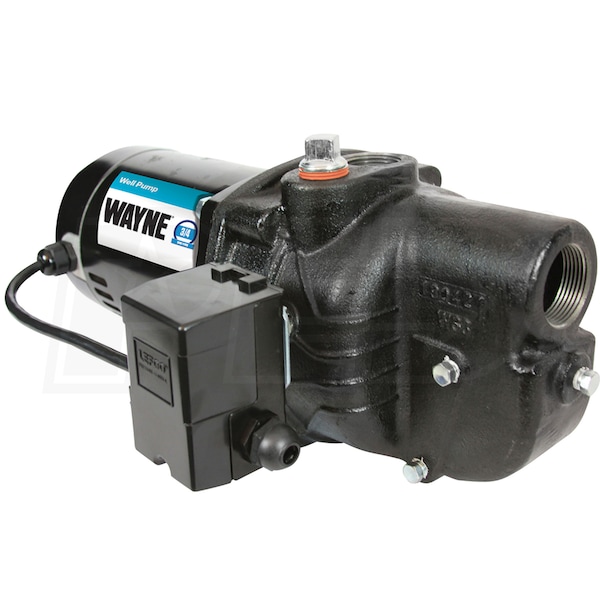

Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump

Model:

SWS75

Write a Review
$293.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump
Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump
Model: SWS75
$293.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

8.5 Gallons

  • Wayne Cast Iron Shallow Well Jet Pump
  • Assembled in the US with foreign and domestic parts
  • Designed For Wells 0' - 25' In Depth
  • Pumps up to 481 GPH @ 5' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 3/4 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • *Note - No Power Cord Included
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

SWS75
specs product image PID-4348
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
8.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066106131
