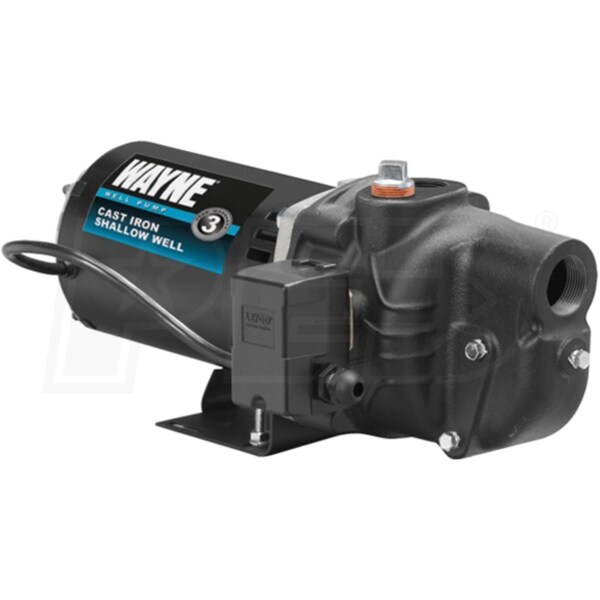

Wayne SWS100 - 1 HP Cast Iron Shallow Well Jet Pump
Model: SWS100
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
Number of Reviews(13)
Write a Review
Q&A (3)
$284.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-4 Business Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 13
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
8.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
8.5 Gallons
Features
Features
  • Wayne Cast Iron Shallow Well Jet Pump
  • Assembled in the US with foreign and domestic parts
  • Designed For Wells 0' - 25' In Depth
  • Pumps up to 338 GPH @ 5' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • *No Power Cord Included
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
8.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1 hp
Overview
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218797

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
8.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
8.5 Gallons
Features
Features
  • Wayne Cast Iron Shallow Well Jet Pump
  • Assembled in the US with foreign and domestic parts
  • Designed For Wells 0' - 25' In Depth
  • Pumps up to 338 GPH @ 5' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • *No Power Cord Included
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
8.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1 hp
Overview
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218797
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
8.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1 hp
Overview
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218797
Reviews
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
(13)
+−
Wayne SWS100 Reviews & Ratings
92% of Reviewers Recommend This Product
Product Q&A
(3)
+−
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+−
is it quiet?? I want a pump for my cabin (home) It will be mounted under the kitchen sin and suck water from our spring ~ 100' away and 6' elevation drop. It will suck thru a Culligan 5 micron filter and feed the kitchen- hot water tank, faucet and dishwasher . we bought a Bosch DW supposed to be real quiet. We want a quiet. pump. What do you recommend???
Rex Waldron
from Oregon
July 02, 2016
Answer
As long as the pump is installed as outlined in the pump installation manual, any of these pumps should be operating quietly.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Does the WayneShallow well pump come with a 110 electrical attached cord?
Vicki
from Minnesota
October 14, 2014
Answer
No, since these pumps are rated for either 120V or 240V, the wiring connections would be the responsibility of the installer.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
What is the maximum depth of a "shallow" well pump? I want to use an on top pump if possible and my well is 150 ft. deep
Alfred H
from Arkansas
April 03, 2013
Answer
Thank you for visiting Water Pumps Direct. In answer to your question, the maximum suction or depth that a shallow well pump can handle is 25 feet. A CONVERTIBLE JET PUMP can handle depths of up to 90 feet, max. In your case, the only option would be a DEEP WELL submersible pump, providing that you can get a 4" diameter pump into your well.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
