Tsurumi TDE5-300 - 59 GPM (3") Electric Diaphragm Pump w/ Wheel Kit
Model: TD5E-300
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style

GPM
59
Gallons
Inlet Size
3"
Style
Diaphragm
GPM
59 Gallons
Features
Features
- Tsurumi 3" Electric Diaphragm Pump
- Ideal for muddy, slurry and thick liquids (high solid content)
- Handles solids up to 1-5/8" diameter & Maximum Temperature 180°F
- 115/230V 1.5 HP Single Phase, AC Motor
- Manual reset overload protects the engine for maximum life
- 2-Stage, Forged Gear Driven Transmission
- Heavy-duty design, operates pump @ 40-strokes per minute
- Sand Cast Aluminum Construction
- Helps reduce weight while still being a very durable pump
- Thermoplastic Santoprene Diaphragm
- Provides extended "wear" life for more pumping and less maintenance
- Built-In Check Valve For Faster Priming
- Helps decrease priming time, once initial prime is created
- Handle & Wheel Kit
- Balanced design makes it easy to transport over uneven terrain
- 90° Rotatable base allows for maximum ease-of-use
- Modular Component Design
- Allows for easier maintenance and cleanout
- Also Includes :
- 3" Steel Suction Strainer & (2) NPT Nipples
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
59 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.625 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet

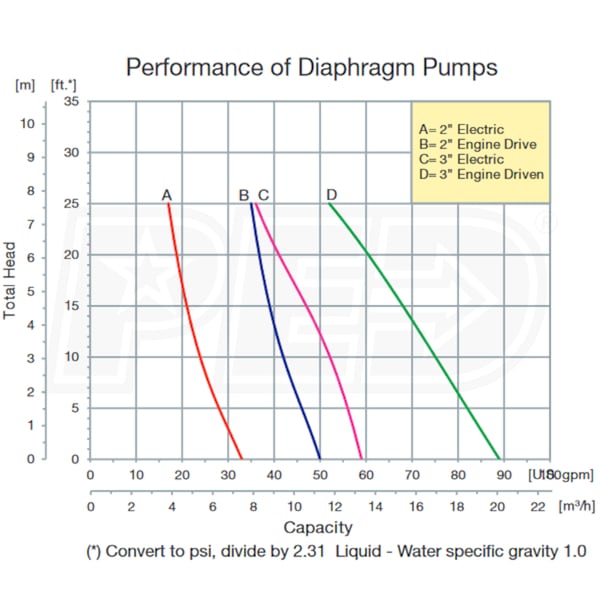

GPH @ 0 feet
3540
GPH @ 5 feet
3360
GPH @ 10 feet
3120
GPH @ 15 feet
2880
GPH @ 20 feet
2460
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
185 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44.1 Inches
Product Width
26.4 Inches
Product Height
23.4 Inches
Additional Model Numbers
TDE5-300, TD5E-300
Inlet Size
3"
Style

GPM
59
Gallons
Inlet Size
3"
Style
Diaphragm
GPM
59 Gallons
Features
Features
- Tsurumi 3" Electric Diaphragm Pump
- Ideal for muddy, slurry and thick liquids (high solid content)
- Handles solids up to 1-5/8" diameter & Maximum Temperature 180°F
- 115/230V 1.5 HP Single Phase, AC Motor
- Manual reset overload protects the engine for maximum life
- 2-Stage, Forged Gear Driven Transmission
- Heavy-duty design, operates pump @ 40-strokes per minute
- Sand Cast Aluminum Construction
- Helps reduce weight while still being a very durable pump
- Thermoplastic Santoprene Diaphragm
- Provides extended "wear" life for more pumping and less maintenance
- Built-In Check Valve For Faster Priming
- Helps decrease priming time, once initial prime is created
- Handle & Wheel Kit
- Balanced design makes it easy to transport over uneven terrain
- 90° Rotatable base allows for maximum ease-of-use
- Modular Component Design
- Allows for easier maintenance and cleanout
- Also Includes :
- 3" Steel Suction Strainer & (2) NPT Nipples
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
59 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.625 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet
GPH @ 0 feet
3540
GPH @ 5 feet
3360
GPH @ 10 feet
3120
GPH @ 15 feet
2880
GPH @ 20 feet
2460
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
185 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44.1 Inches
Product Width
26.4 Inches
Product Height
23.4 Inches
Additional Model Numbers
TDE5-300, TD5E-300
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
59 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Pump Head Material
Aluminum
Housing Material
Aluminum
Solids Handling Size
1.625 inch
Handles Solids
Yes
Suction Head
20 Feet
Total Head Lift
25 Feet
GPH @ 0 feet
3540
GPH @ 5 feet
3360
GPH @ 10 feet
3120
GPH @ 15 feet
2880
GPH @ 20 feet
2460
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Submersible
No
Engine
Horsepower
1.5 hp
Accessories
Strainer
Yes
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Weight
185 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44.1 Inches
Product Width
26.4 Inches
Product Height
23.4 Inches
Additional Model Numbers
TDE5-300, TD5E-300
