Product Description
+−
Inlet Size
4"
Style

GPM
500
Gallons
Inlet Size
4"
Style
Trash
GPM
500 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- PTO-Powered 4” Self-Priming Trash Pump
- For high volume water transfer/evacuation applications
- Primes in seconds, not minutes, using the tractor's power
- The ability to pump solids up to 2" diameter
- Designed To Last For Years, No Engine To Maintain
- Die cast aluminum centrifugal pump w/ cast iron wear parts
- Viton® mechanical seal, Buna-N flapper valve and o-rings
- TGIC Powder Coated Steel Frame
- Extends frame life from everyday wear and tear
- 3-Point Hitch Design
- Includes tractor mounting hardware & PTO Shaft
- For Use With 15-HP or Greater, Category 1 Tractors (540 RPM)
- Runs for over 2 hours on 1 gallon of fuel
Specifications
Pump
Gallons Per Minute
500 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Viton
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
120 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
15 HP
Accessories
Tool Kit
No
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
325 Pounds
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
32 Inches
Product Height
33 Inches
Inlet Size
4"
Style

GPM
500
Gallons
Inlet Size
4"
Style
Trash
GPM
500 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- PTO-Powered 4” Self-Priming Trash Pump
- For high volume water transfer/evacuation applications
- Primes in seconds, not minutes, using the tractor's power
- The ability to pump solids up to 2" diameter
- Designed To Last For Years, No Engine To Maintain
- Die cast aluminum centrifugal pump w/ cast iron wear parts
- Viton® mechanical seal, Buna-N flapper valve and o-rings
- TGIC Powder Coated Steel Frame
- Extends frame life from everyday wear and tear
- 3-Point Hitch Design
- Includes tractor mounting hardware & PTO Shaft
- For Use With 15-HP or Greater, Category 1 Tractors (540 RPM)
- Runs for over 2 hours on 1 gallon of fuel
Specifications
Pump
Gallons Per Minute
500 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Viton
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
120 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
15 HP
Accessories
Tool Kit
No
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
325 Pounds
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
32 Inches
Product Height
33 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
500 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Viton
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
120 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
15 HP
Accessories
Tool Kit
No
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
325 Pounds
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
32 Inches
Product Height
33 Inches
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

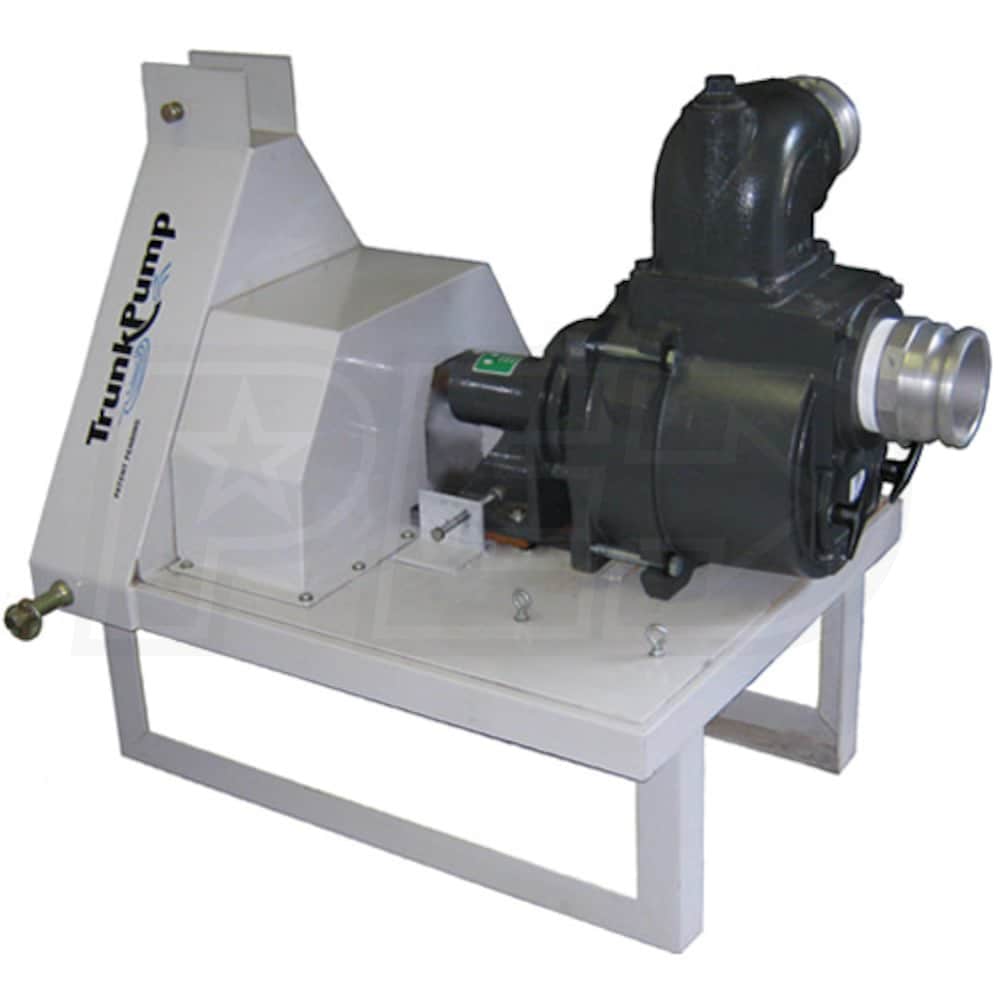

TrunkPump TP-4PTR - 500 GPM (4") PTO Trash Pump






×
