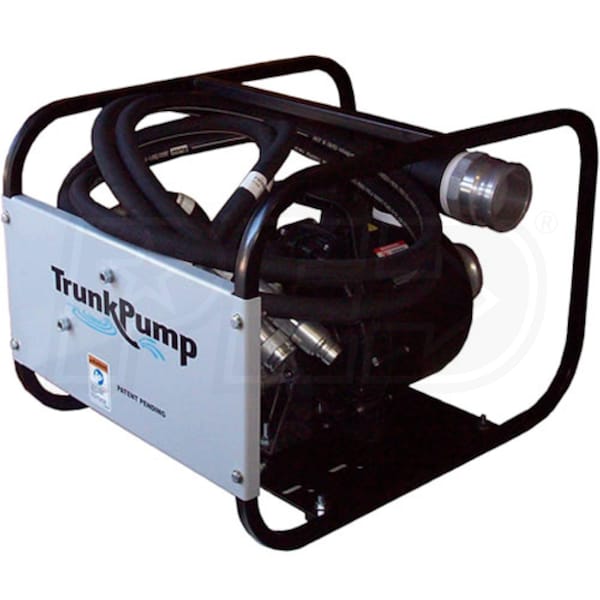

TrunkPump TP-2HYD - 190 GPM (2") Hydraulic Drive Water Pump (Skid Steer)
TrunkPump TP-2HYD - 190 GPM (2") Hydraulic Drive Water Pump (Skid Steer)
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
190
Gallons
Inlet Size
2"
Style
Dewatering
GPM
190 Gallons
Features
Features
- Hydraulically-Driven 2” Self-Priming Water Pump
- For a wide range of water/liquid transfer/evacuation applications
- Designed To Last For Years
- Compact roll cage design w/ camlock pump fittings
- Hydraulic flow regulating manifold
- 8' Hydraulic hoses w/ male & female Flush Face Quick Disconnect
- Added Features
- Self-priming to 25'
- Built-in check valve
- Runs On A Bobcat Down To A Dingo
- Requires Remote Hydraulics w/ 9-30 GPM & 1200 PSI Minimum
Specifications
Pump
Gallons Per Minute
190 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Stainless Steel
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Tool Kit
No
Strainer
No
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Product Length
25 Inches
Product Width
19 Inches
Product Height
19 Inches
Inlet Size
2"
Style
GPM
190
Gallons
Inlet Size
2"
Style
Dewatering
GPM
190 Gallons
Features
Features
- Hydraulically-Driven 2” Self-Priming Water Pump
- For a wide range of water/liquid transfer/evacuation applications
- Designed To Last For Years
- Compact roll cage design w/ camlock pump fittings
- Hydraulic flow regulating manifold
- 8' Hydraulic hoses w/ male & female Flush Face Quick Disconnect
- Added Features
- Self-priming to 25'
- Built-in check valve
- Runs On A Bobcat Down To A Dingo
- Requires Remote Hydraulics w/ 9-30 GPM & 1200 PSI Minimum
Specifications
Pump
Gallons Per Minute
190 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Stainless Steel
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Tool Kit
No
Strainer
No
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Product Length
25 Inches
Product Width
19 Inches
Product Height
19 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
190 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Stainless Steel
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Tool Kit
No
Strainer
No
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Product Length
25 Inches
Product Width
19 Inches
Product Height
19 Inches
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
I am looking for a trash pump for my tractor. A safety feature prevents me from operating my PTO when not in the tractor seat. I do, however, have power beyond hydraulics with 9 gpm continuous flow. Will the TP-2HYD work at ground-level, behind the tractor using my remotes -- or does it need to be elevated? Is this unit designed to pump for many hours continuously? If a PTO option is better, I can put a weight on the seat to use, but this is a pain!
Charlie
from Iowa
February 01, 2015
Answer
The TrunkPump TP-2HYD can be used at ground level. You just need to be sure there is in the neighborhood of 10gpm 1250psi hydraulic flow from the hydraulic source to power the pump.
If you have any other questions let me know.
If you have any other questions let me know.
