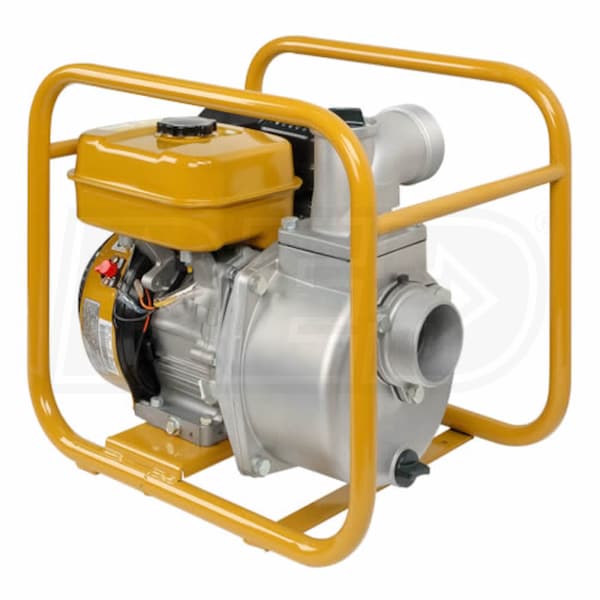

Subaru PKX301 - 256 GPM (3") Water Pump

Subaru PKX301 - 256 GPM (3") Water Pump
Model: PKX301
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1/4"
Style
Fountain Pumps
GPM
256
Gallons
Engine
Inlet Size
1/4"
Style
Fountain
GPM
256 Gallons
Engine
Robin Subaru
Features
Features
  • Self-Priming Design
  • Requires initial priming to operate
  • Ceramic Carbon Mechanical Seal
  • Self-lubricating seal provides rugged construction for long life
  • Cast Iron Impeller and Volute
  • Ensures maximum durability and performance
  • Shimmable Impeller
  • Adjustable clearance as pump wears from dirt and grit
  • 6 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 256 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .95-Gallon Fuel Tank w/ Strainer
  • Provides 2.5 hours of peak run time on a full tank
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum sound reduction
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Includes Standard Accessories
  • Tool kit, hose coupling, strainer and hose band
Specifications
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
6 hp
Fuel Tank Size
0.95 Gallons
Run Time
2.5 Hours
Consumer Engine Warranty
3 Years
Pump
Gallons Per Minute
256 Gallons
Inlet Diameter
1/4"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
102 Feet
Maximum PSI
44
Submersible
Yes
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
19.9 Inches
Product Width
15.2 Inches
Product Height
18.4 Inches
Consumer Warranty
3 Years

Inlet Size
1/4"
Style
Fountain Pumps
GPM
256
Gallons
Engine
Inlet Size
1/4"
Style
Fountain
GPM
256 Gallons
Engine
Robin Subaru
Features
Features
  • Self-Priming Design
  • Requires initial priming to operate
  • Ceramic Carbon Mechanical Seal
  • Self-lubricating seal provides rugged construction for long life
  • Cast Iron Impeller and Volute
  • Ensures maximum durability and performance
  • Shimmable Impeller
  • Adjustable clearance as pump wears from dirt and grit
  • 6 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 256 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .95-Gallon Fuel Tank w/ Strainer
  • Provides 2.5 hours of peak run time on a full tank
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum sound reduction
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Includes Standard Accessories
  • Tool kit, hose coupling, strainer and hose band
Specifications
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
6 hp
Fuel Tank Size
0.95 Gallons
Run Time
2.5 Hours
Consumer Engine Warranty
3 Years
Pump
Gallons Per Minute
256 Gallons
Inlet Diameter
1/4"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
102 Feet
Maximum PSI
44
Submersible
Yes
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
19.9 Inches
Product Width
15.2 Inches
Product Height
18.4 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
6 hp
Fuel Tank Size
0.95 Gallons
Run Time
2.5 Hours
Consumer Engine Warranty
3 Years
Pump
Gallons Per Minute
256 Gallons
Inlet Diameter
1/4"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
102 Feet
Maximum PSI
44
Submersible
Yes
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
19.9 Inches
Product Width
15.2 Inches
Product Height
18.4 Inches
Consumer Warranty
3 Years
