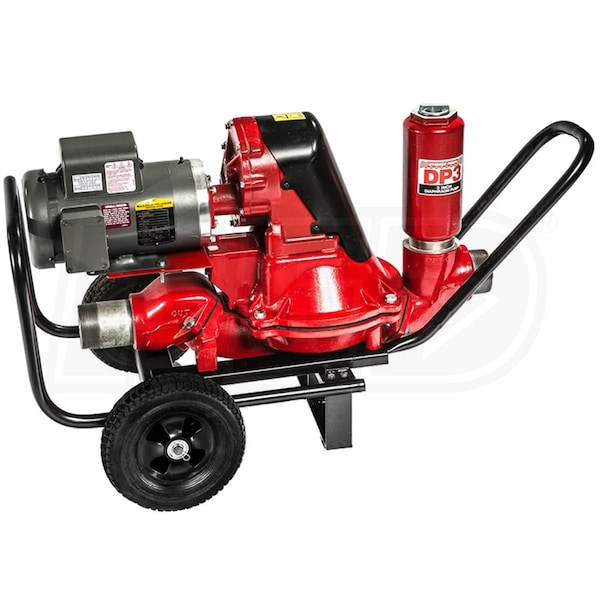

Riverside Pumps DP3E - 50 GPM (3") Diaphragm Pump w/ 2.0 HP Baldor-Reliance Motor
Riverside Pumps DP3E - 50 GPM (3") Diaphragm Pump w/ 2.0 HP Baldor-Reliance Motor
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style
GPM
50
Gallons
Inlet Size
3"
Style
Diaphragm
GPM
50 Gallons
Features
Features
- Riverside 3" Electric Diaphragm Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 2 HP Baldor-Reliance Motor
- Provides reliable power for the pump
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 1" Steel Roll Cart
- Provides added protection during operation, transportation & storage
- 2-Year Pump Warranty
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
50 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Horsepower
2 hp
Accessories
Hose
Sold Separately
Overview
Weight
156 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Inlet Size
3"
Style
GPM
50
Gallons
Inlet Size
3"
Style
Diaphragm
GPM
50 Gallons
Features
Features
- Riverside 3" Electric Diaphragm Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 2 HP Baldor-Reliance Motor
- Provides reliable power for the pump
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 1" Steel Roll Cart
- Provides added protection during operation, transportation & storage
- 2-Year Pump Warranty
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
50 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Horsepower
2 hp
Accessories
Hose
Sold Separately
Overview
Weight
156 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
50 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Horsepower
2 hp
Accessories
Hose
Sold Separately
Overview
Weight
156 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
