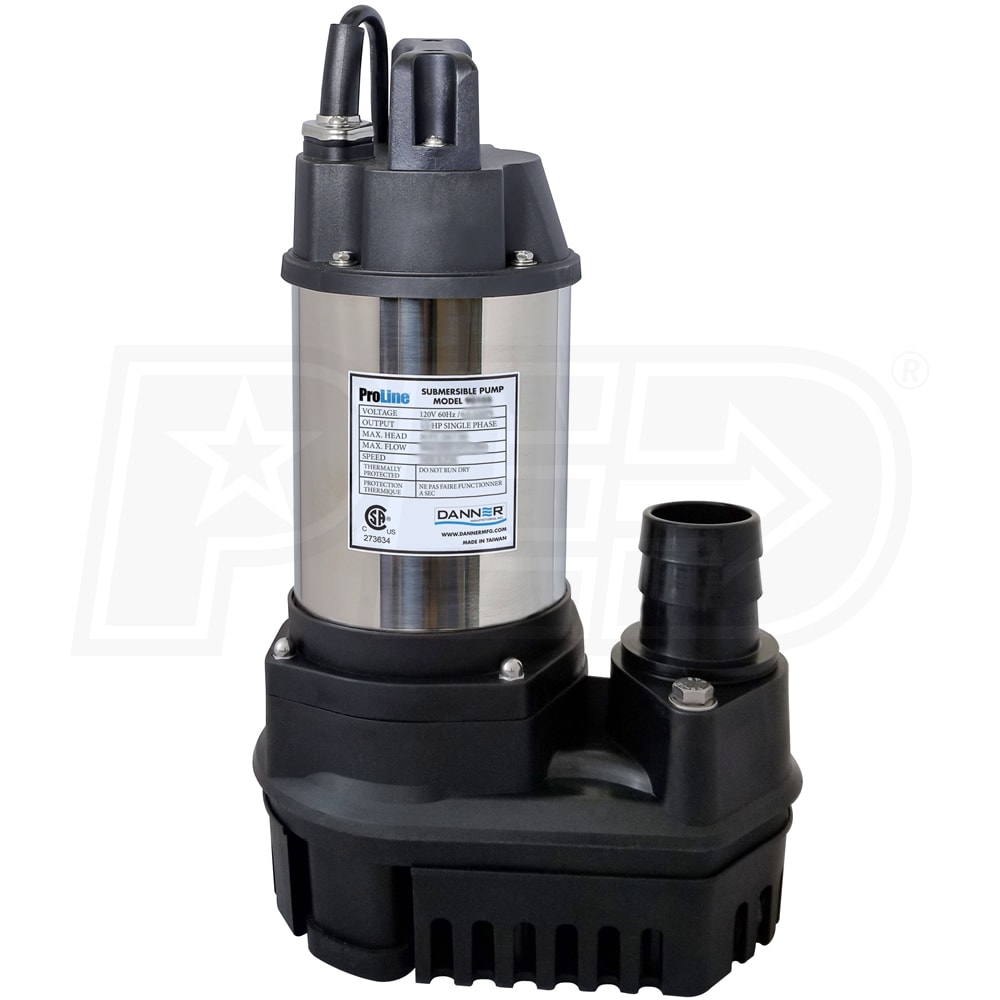

Pondmaster ProLine - 31 GPM 1/6 HP High Flow Submersible Stainless Steel Pond/Fountain Pump
Model: 90101
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
31
Gallons
Inlet Size
N/A
Style
Pond
GPM
31 Gallons
Features
Features
- ProLine Continuous Duty Submersible Water Pump
- For ponds, fountains, waterfalls, recirculation and drainage
- 1/6 HP, Thermally-Protected Motor
- Self-resetting automatic protection against overload and overheat
- Stainless Steel Motor Housing
- Corrosion-resistant design for maximum protection
- Fiberglass Reinforced Plastic (FRP) Vortex Impeller
- For increased torque flow which eliminates clogging and binding
- Removable Intake Screen
- Passes up to 3/4" solids with screen removed
- Double Silicone Carbide Mechanical Seals (impeller side)
- Helps extend the life of the pump in harsh environments
- 1-1/2" FNPT Discharge
- Includes 1- 1/2" & 2" Barbed fittings
- 20' Grounded Power Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
2.7
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
31 Gallons
Outlet Diameter
1-1/2"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
GPH @ 0 feet
1860
GPH @ 5 feet
1600
GPH @ 10 feet
1308
GPH @ 15 feet
846
GPH @ 20 feet
200
Max Head
23 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.16 hp
Overview
Weight
9.3 Pounds
Consumer Warranty
2 Years
Product Length
7.5 Inches
Product Width
5.2 Inches
Product Height
12.2 Inches
UPC
025033901018
Inlet Size
N/A
Style

GPM
31
Gallons
Inlet Size
N/A
Style
Pond
GPM
31 Gallons
Features
Features
- ProLine Continuous Duty Submersible Water Pump
- For ponds, fountains, waterfalls, recirculation and drainage
- 1/6 HP, Thermally-Protected Motor
- Self-resetting automatic protection against overload and overheat
- Stainless Steel Motor Housing
- Corrosion-resistant design for maximum protection
- Fiberglass Reinforced Plastic (FRP) Vortex Impeller
- For increased torque flow which eliminates clogging and binding
- Removable Intake Screen
- Passes up to 3/4" solids with screen removed
- Double Silicone Carbide Mechanical Seals (impeller side)
- Helps extend the life of the pump in harsh environments
- 1-1/2" FNPT Discharge
- Includes 1- 1/2" & 2" Barbed fittings
- 20' Grounded Power Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
2.7
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
31 Gallons
Outlet Diameter
1-1/2"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
GPH @ 0 feet
1860
GPH @ 5 feet
1600
GPH @ 10 feet
1308
GPH @ 15 feet
846
GPH @ 20 feet
200
Max Head
23 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.16 hp
Overview
Weight
9.3 Pounds
Consumer Warranty
2 Years
Product Length
7.5 Inches
Product Width
5.2 Inches
Product Height
12.2 Inches
UPC
025033901018
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
2.7
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
31 Gallons
Outlet Diameter
1-1/2"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
GPH @ 0 feet
1860
GPH @ 5 feet
1600
GPH @ 10 feet
1308
GPH @ 15 feet
846
GPH @ 20 feet
200
Max Head
23 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.16 hp
Overview
Weight
9.3 Pounds
Consumer Warranty
2 Years
Product Length
7.5 Inches
Product Width
5.2 Inches
Product Height
12.2 Inches
UPC
025033901018
