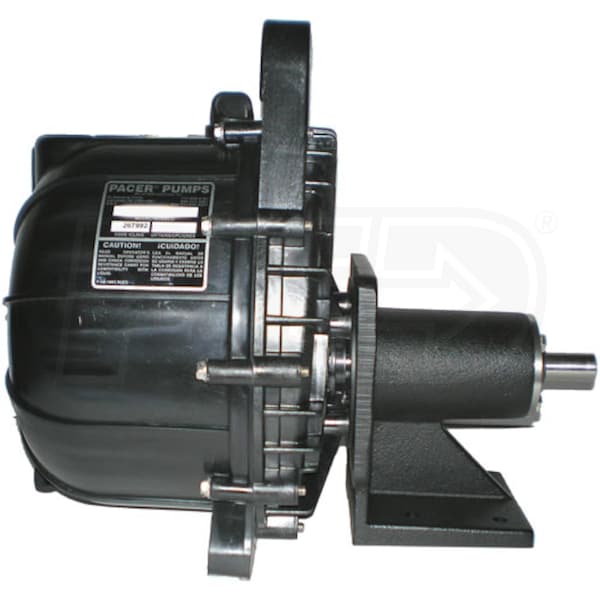

Pacer SE3LLCSS - 280 GPM (3") Cast-Iron Pedestal Mounted Water Pump

Model:

SE3LL CSS

Write a Review
$429.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

Pacer SE3LLCSS - 280 GPM (3
Pacer SE3LLCSS - 280 GPM (3") Cast-Iron Pedestal Mounted Water Pump
Model: SE3LL CSS
$429.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

3"

Style

Dewatering

GPM

280 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • S-Series 3" Multi-Purpose Pump Head
  • Designed for agricultural, transfer & dewatering applications
  • Cast-Iron Pedestal w/ Stainless Steel Shaft For Flexible Coupling
  • Compatible w/ electric motors or gas engines
  • Required Power
  • 5-HP electric motors (3450 RPM)
  • 5-HP gas engines (3600 RPM)
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • For use w/ water, salt water, waste water, mild acids & bases
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal & External Stainless Steel Fasteners
  • Extends the useful life of the pump
  • All S series self-priming pumps use a shaft
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SE3LL CSS
Pump
Gallons Per Minute
280 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
80 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
18 Pounds
Consumer Warranty
1 Year

Reviews

(2)
Pacer SE3LL CSS Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
Jim, does this pump have bearings that will allow it to be powered by pullys and belts, or does it need direct drive couplers. Also looking at shaft I assume it turns clockwise for direct drive. Is that the case?
Mac M
from California
November 04, 2013
Answer
Thank you for your interest in Water Pumps Direct. The SE3LL CSS is a 3" polyester 'S' pump that is close-coupled to a cast iron pedestal. The pedestal has a 3/4" thru-shaft. One end for mounting the pump to, and the other for driving the pump. This pump could support a pulley and side load application. The pump impeller needs a CCW rotatation for proper flow. This would mean the PTO side of the pedestal would turn CW.
Was this answer helpful?
Yes
0
No
0
