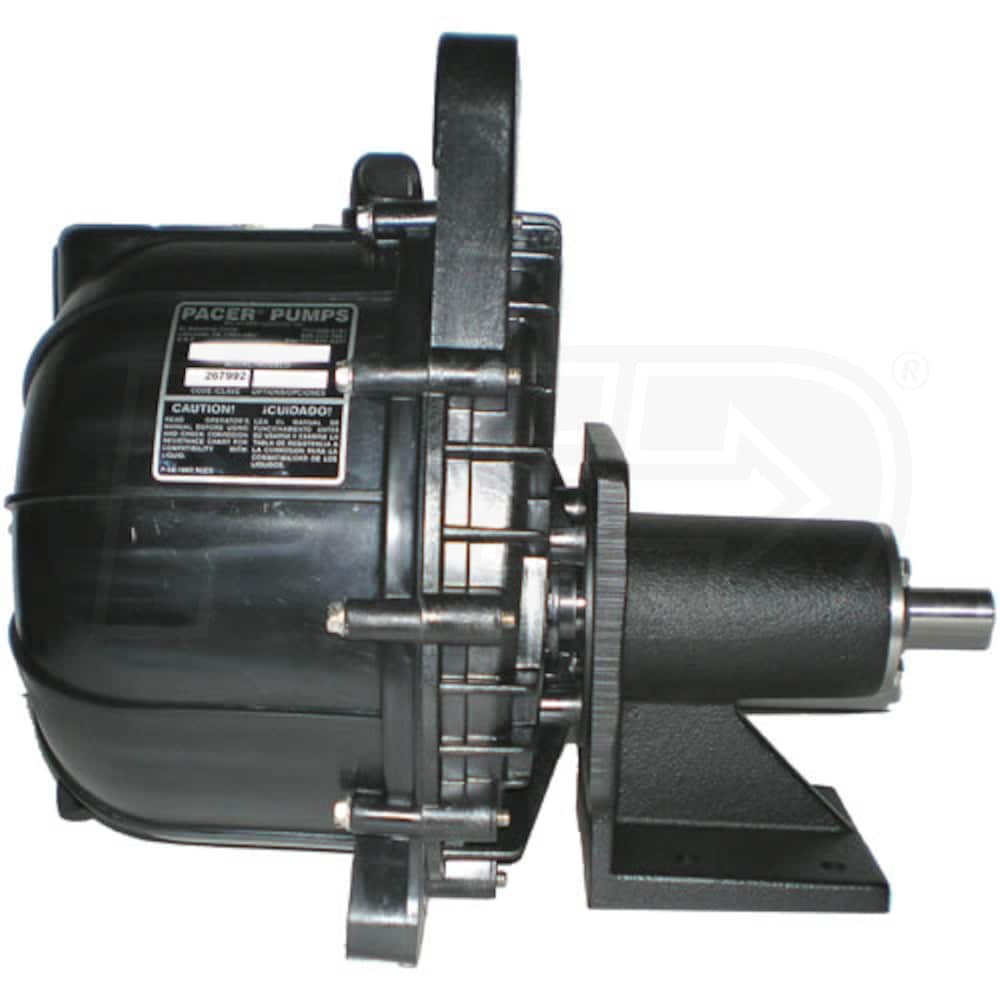

Pacer SE2FLCSS - 160 GPM (2") Cast-Iron Pedestal Mounted Water Pump
Pacer SE2FLCSS - 160 GPM (2") Cast-Iron Pedestal Mounted Water Pump
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
160
Gallons
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- S-Series 2" Multi-Purpose Pump Head
- Designed for agricultural, transfer & dewatering applications
- Cast-Iron Pedestal w/ Stainless Steel Shaft For Flexible Coupling
- Compatible w/ electric motors or gas engines
- Required Power
- 3-HP electric motors (3450 RPM)
- 3-HP gas engines (3600 RPM)
- Glass-Reinforced Polyester Housing, Volute & Impeller
- For use w/ water, salt water, waste water, mild acids & bases
- Standard EPDM Elastomers (O-Rings & Gasket)
- Compatible with many agricultural chemicals
- EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
- Extends the useful life of the pump
- Internal & External Stainless Steel Fasteners
- High quality components that are built to last
- All ‘S’ series self-priming pumps use a ¾” shaft
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Inlet Size
2"
Style
GPM
160
Gallons
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- S-Series 2" Multi-Purpose Pump Head
- Designed for agricultural, transfer & dewatering applications
- Cast-Iron Pedestal w/ Stainless Steel Shaft For Flexible Coupling
- Compatible w/ electric motors or gas engines
- Required Power
- 3-HP electric motors (3450 RPM)
- 3-HP gas engines (3600 RPM)
- Glass-Reinforced Polyester Housing, Volute & Impeller
- For use w/ water, salt water, waste water, mild acids & bases
- Standard EPDM Elastomers (O-Rings & Gasket)
- Compatible with many agricultural chemicals
- EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
- Extends the useful life of the pump
- Internal & External Stainless Steel Fasteners
- High quality components that are built to last
- All ‘S’ series self-priming pumps use a ¾” shaft
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Specs
+−
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Submersible
No
Engine
Continuous Operation
Yes
Accessories
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Is the input shaft stainless steel?
Lennis L.
from Wisconsin
February 27, 2017
Answer
The Pacer model SE2FLPE has a carbon steel shaft. The Pacer SE2FLCSS - 160 GPM (2") Cast-Iron Pedestal Mounted Water Pump is the same pump BUT with a stainless steel shaft.
