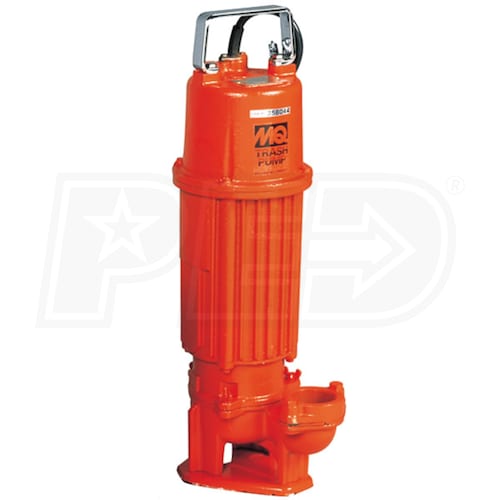

Multiquip ST2010TCUL - 95 GPM (2") Submersible Trash Pump
Model: ST2010TCUL
+
Share This Product
-
Product Description
-
3Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
95
Gallons
Inlet Size
N/A
Style
Trash
GPM
95 Gallons
Features
Features
- Multiquip Submersible Trash Pump
- Lightweight & compact for moving water w/ debris (1" Max)
- Highly-Efficient 1-HP 9.4-Amp Motor
- Continuous duty rated, capable of pumping up to 5700 GPH
- Internal Thermal Overload Protection
- Prevents electrical damage to the pump
- Cast Iron Impeller
- Increase wear resistance when abrasive particles are present
- Industrial Cast Iron Housing
- Built to handle heavy usage & tough applications
- Open Intake Design
- Allows for dewatering of surfaces up to 2"
- Easy Clean-Out Design
- Allows you to get the pump back in service fast
- Molded 50-Foot Power Cord w/ Strain Relief
- Plenty of cord for outdoor applications
- 1-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
50 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
95 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
1 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Max Head
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Transport Handle
Yes
Overview
Weight
77 Pounds
Consumer Warranty
1 Year
Product Width
10.3 Inches
Product Height
24.5 Inches
Inlet Size
N/A
Style

GPM
95
Gallons
Inlet Size
N/A
Style
Trash
GPM
95 Gallons
Features
Features
- Multiquip Submersible Trash Pump
- Lightweight & compact for moving water w/ debris (1" Max)
- Highly-Efficient 1-HP 9.4-Amp Motor
- Continuous duty rated, capable of pumping up to 5700 GPH
- Internal Thermal Overload Protection
- Prevents electrical damage to the pump
- Cast Iron Impeller
- Increase wear resistance when abrasive particles are present
- Industrial Cast Iron Housing
- Built to handle heavy usage & tough applications
- Open Intake Design
- Allows for dewatering of surfaces up to 2"
- Easy Clean-Out Design
- Allows you to get the pump back in service fast
- Molded 50-Foot Power Cord w/ Strain Relief
- Plenty of cord for outdoor applications
- 1-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
50 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
95 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
1 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Max Head
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Transport Handle
Yes
Overview
Weight
77 Pounds
Consumer Warranty
1 Year
Product Width
10.3 Inches
Product Height
24.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
50 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
95 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
1 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Max Head
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Transport Handle
Yes
Overview
Weight
77 Pounds
Consumer Warranty
1 Year
Product Width
10.3 Inches
Product Height
24.5 Inches
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
How many amps does this draw at startup?
Steve
from Ohio
March 05, 2020
Answer
According to their SPEC SHEET, this pump has a starting amp rating of 53.
