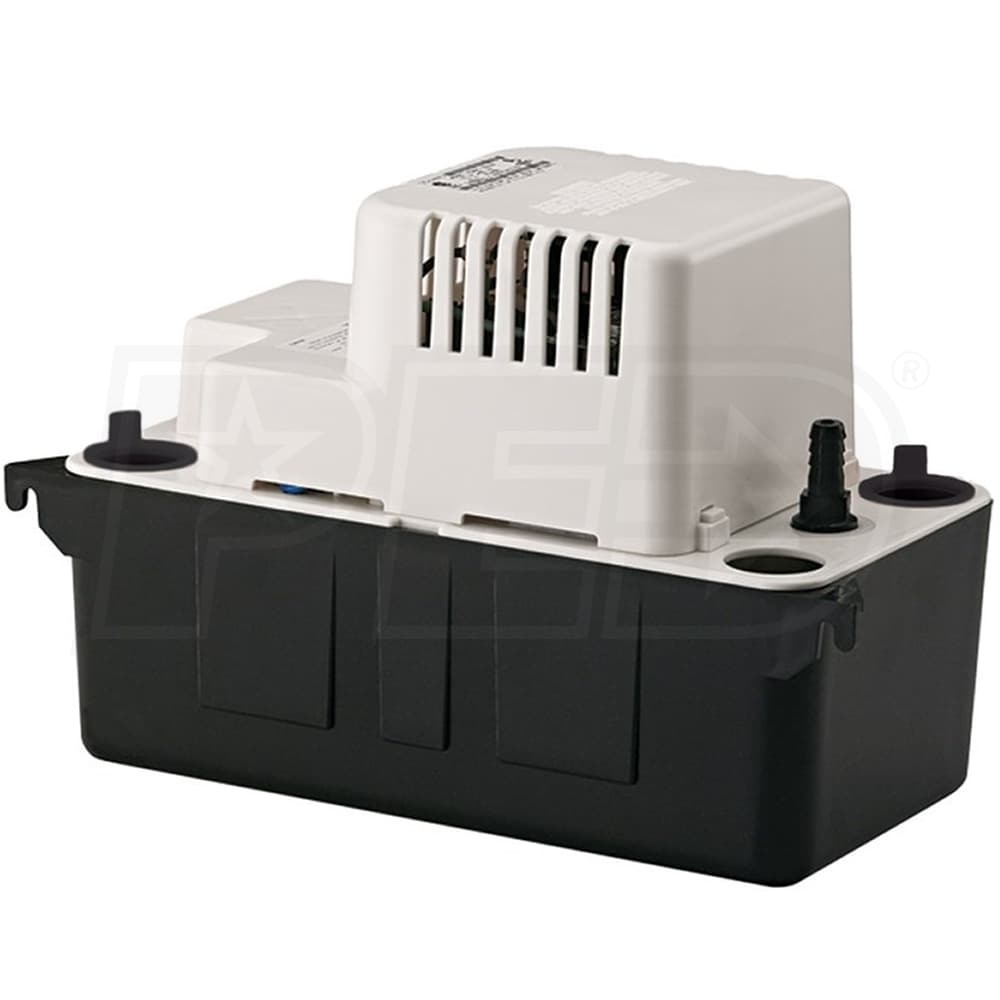

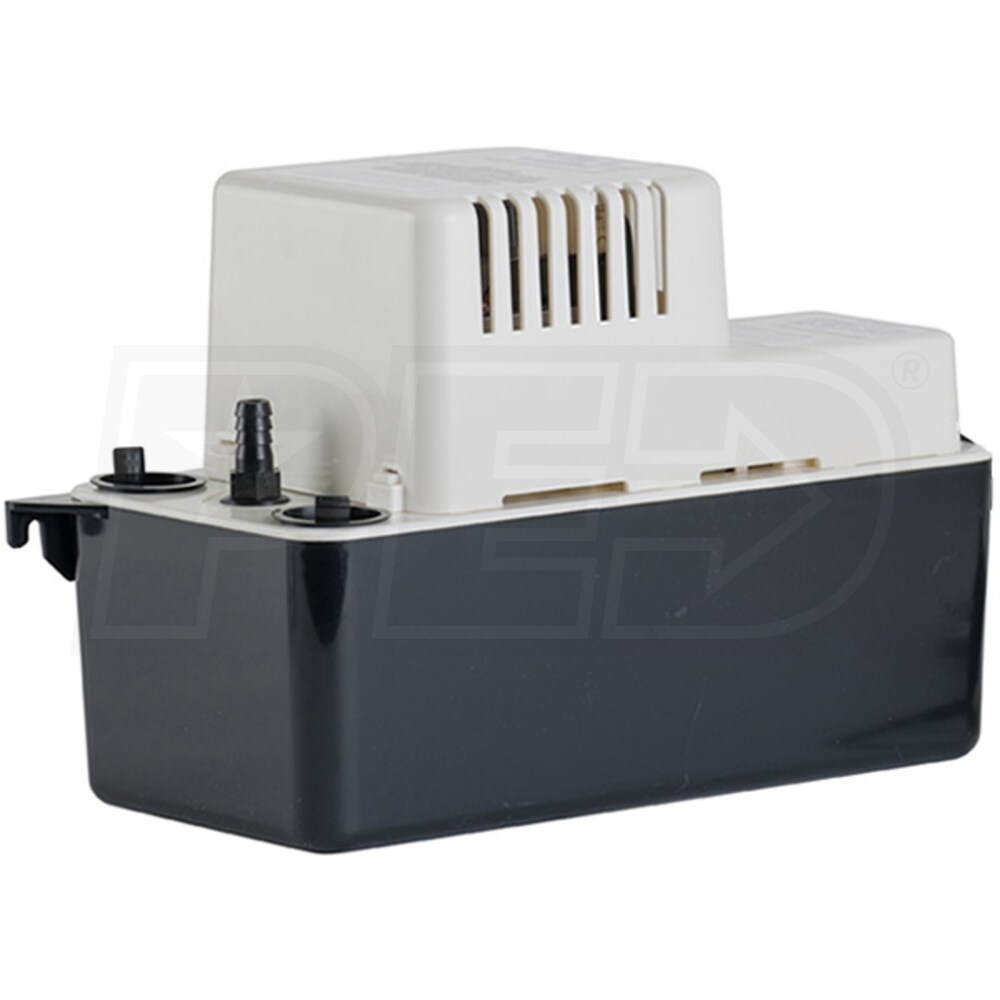

Little Giant VCMA-15ULT - 1.1 GPM Thermoplastic Condensate Removal Pump (15' Lift) 554411
Model: 554411
+
Share This Product
-
Product Description
-
3Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1/2"
Style

GPM
1.13
Gallons
Inlet Size
1/2"
Style
Condensation
GPM
1.13 Gallons
Features
Features
- Automatic Condensate Removal Pump
- Capable of pumping up to 15' vertically
- Ideal For Household Applications
- Removes condensation from air handlers, boilers & furnaces
- High-Impact ABS Thermoplastic Construction & 1/2 Gallon Reservoir
- Rust-proof and suitable for high-efficiency gas furnaces
- Removable Built-In Check Valve
- Designed for ease of maintenance
- 3 Inlet Drain Holes
- Designed for versatile applications
- OFF @ 15'
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
1.13 Gallons
Inlet Diameter
1/2"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
15 Feet
Submersible
No
Engine
Continuous Operation
No
Accessories
Float Switch
Yes
Overview
Weight
4.3 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
5 Inches
Product Height
7 Inches
UPC
010121544116
Additional Model Numbers
C15, 554411
Inlet Size
1/2"
Style

GPM
1.13
Gallons
Inlet Size
1/2"
Style
Condensation
GPM
1.13 Gallons
Features
Features
- Automatic Condensate Removal Pump
- Capable of pumping up to 15' vertically
- Ideal For Household Applications
- Removes condensation from air handlers, boilers & furnaces
- High-Impact ABS Thermoplastic Construction & 1/2 Gallon Reservoir
- Rust-proof and suitable for high-efficiency gas furnaces
- Removable Built-In Check Valve
- Designed for ease of maintenance
- 3 Inlet Drain Holes
- Designed for versatile applications
- OFF @ 15'
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
1.13 Gallons
Inlet Diameter
1/2"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
15 Feet
Submersible
No
Engine
Continuous Operation
No
Accessories
Float Switch
Yes
Overview
Weight
4.3 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
5 Inches
Product Height
7 Inches
UPC
010121544116
Additional Model Numbers
C15, 554411
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
1.13 Gallons
Inlet Diameter
1/2"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
15 Feet
Submersible
No
Engine
Continuous Operation
No
Accessories
Float Switch
Yes
Overview
Weight
4.3 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
5 Inches
Product Height
7 Inches
UPC
010121544116
Additional Model Numbers
C15, 554411
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Is 554411 the replacement for 554401?
Ron B.
from Colorado
June 10, 2017
Answer
It's the same pump Ron but it includes 20 feet of 3/8" poly tubing for the discharge. The model 554401 is JUST the pump. We only offer the model 554411 at this time.
Was this answer helpful?
Yes

0
No

0
+−
On a Little Giant C15 condensate pump, what are the measurements of water height in the tank when the internal float switch will cause the pump to turn on and when the float switch will cause the pump to turn off.
Tom Boyd
from Michigan
August 02, 2013
Answer
Tom,
According to the owner's manual. "The pump is controlled by a float/switch mechanism which turns the pump on when approximately 2-1/4" of water collects in the tank, and automatically switches off when the tank drains to approximately 1-1/4"."
According to the owner's manual. "The pump is controlled by a float/switch mechanism which turns the pump on when approximately 2-1/4" of water collects in the tank, and automatically switches off when the tank drains to approximately 1-1/4"."
Was this answer helpful?
Yes

0
No

0
