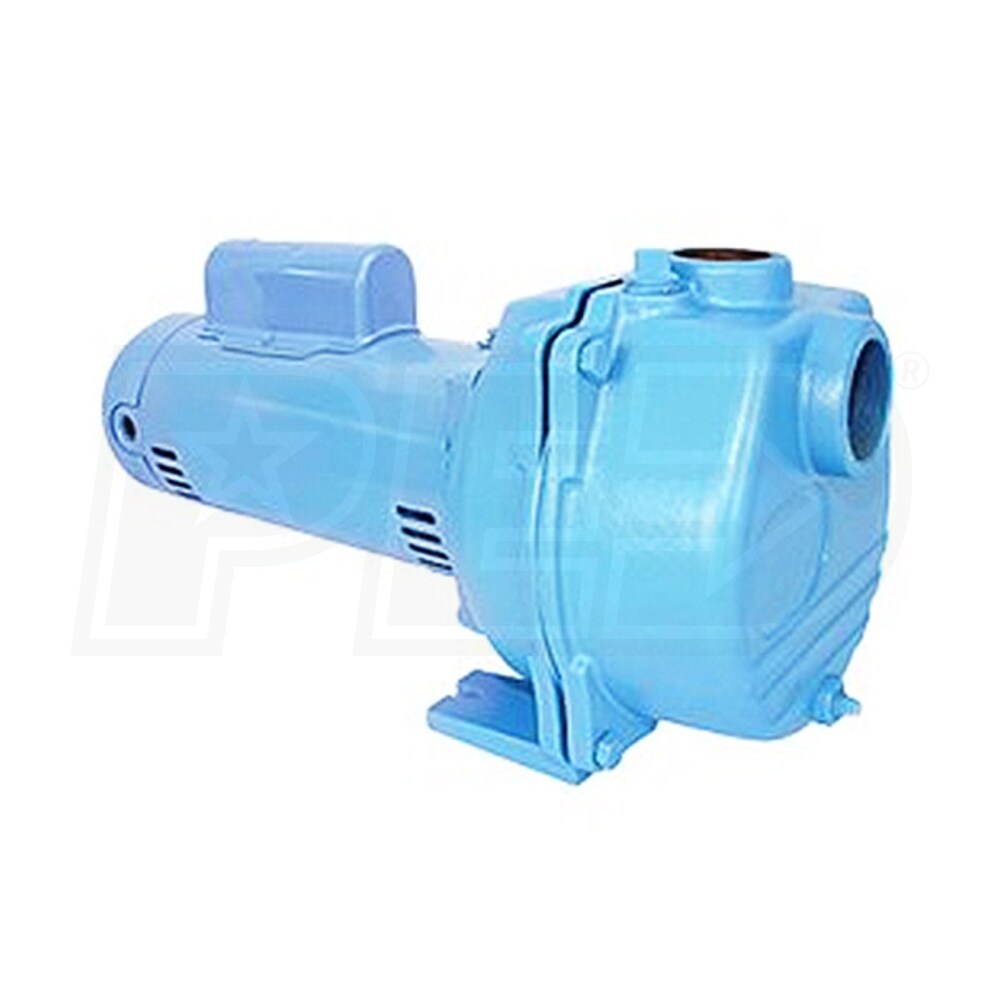

Little Giant LSPH-200-C - 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI)

Little Giant LSPH-200-C - 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI)
Our Price
Compare Prices
Shipping Info
Model: 558298
(Based on expert analysis, manufacturer ratings and customer reviews)
3.7 out of 53.7 out of 53.7 out of 53.7 out of 53.7 out of 5
Number of Reviews (3)
Write A Review
$679.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$679.00Buy Now
$679.00Visit Site
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Sprinkler Pumps
GPM
85
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
85 Gallons
Features
Features
  • 2 HP Lawn High-Pressure Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Provides up to 55 Max PSI
  • Heavy-Duty Cast Iron Housing & Seal Plate
  • Designed for years of service and reliability
  • 230 Volt Heavy-Duty Century Motor (3450 RPM)
  • Low amp draw w/ single-phase capacitor start
  • Self-Priming Design w/ Priming Plug
  • After initial fill, no additional priming required
  • 5/8" Rotating Mechanical Seal
  • Provides a reliable seal agaisnt water leakage
  • Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
  • Provides corrosion resistance and 110F max operating temperature
  • Built-In Drain Plug
  • Makes it easy to drain the pump before storage
  • 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
85 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Total Head Lift
125 Feet
Maximum PSI
55
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
73 Pounds
Product Length
21 Inches
Product Width
12 Inches
Product Height
12? Inches
Consumer Warranty
2 Years
UPC
010121141049

Inlet Size
2"
Style
Sprinkler Pumps
GPM
85
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
85 Gallons
Features
Features
  • 2 HP Lawn High-Pressure Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Provides up to 55 Max PSI
  • Heavy-Duty Cast Iron Housing & Seal Plate
  • Designed for years of service and reliability
  • 230 Volt Heavy-Duty Century Motor (3450 RPM)
  • Low amp draw w/ single-phase capacitor start
  • Self-Priming Design w/ Priming Plug
  • After initial fill, no additional priming required
  • 5/8" Rotating Mechanical Seal
  • Provides a reliable seal agaisnt water leakage
  • Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
  • Provides corrosion resistance and 110F max operating temperature
  • Built-In Drain Plug
  • Makes it easy to drain the pump before storage
  • 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
85 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Total Head Lift
125 Feet
Maximum PSI
55
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
73 Pounds
Product Length
21 Inches
Product Width
12 Inches
Product Height
12? Inches
Consumer Warranty
2 Years
UPC
010121141049
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Pump
Gallons Per Minute
85 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Total Head Lift
125 Feet
Maximum PSI
55
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
73 Pounds
Product Length
21 Inches
Product Width
12 Inches
Product Height
12? Inches
Consumer Warranty
2 Years
UPC
010121141049
