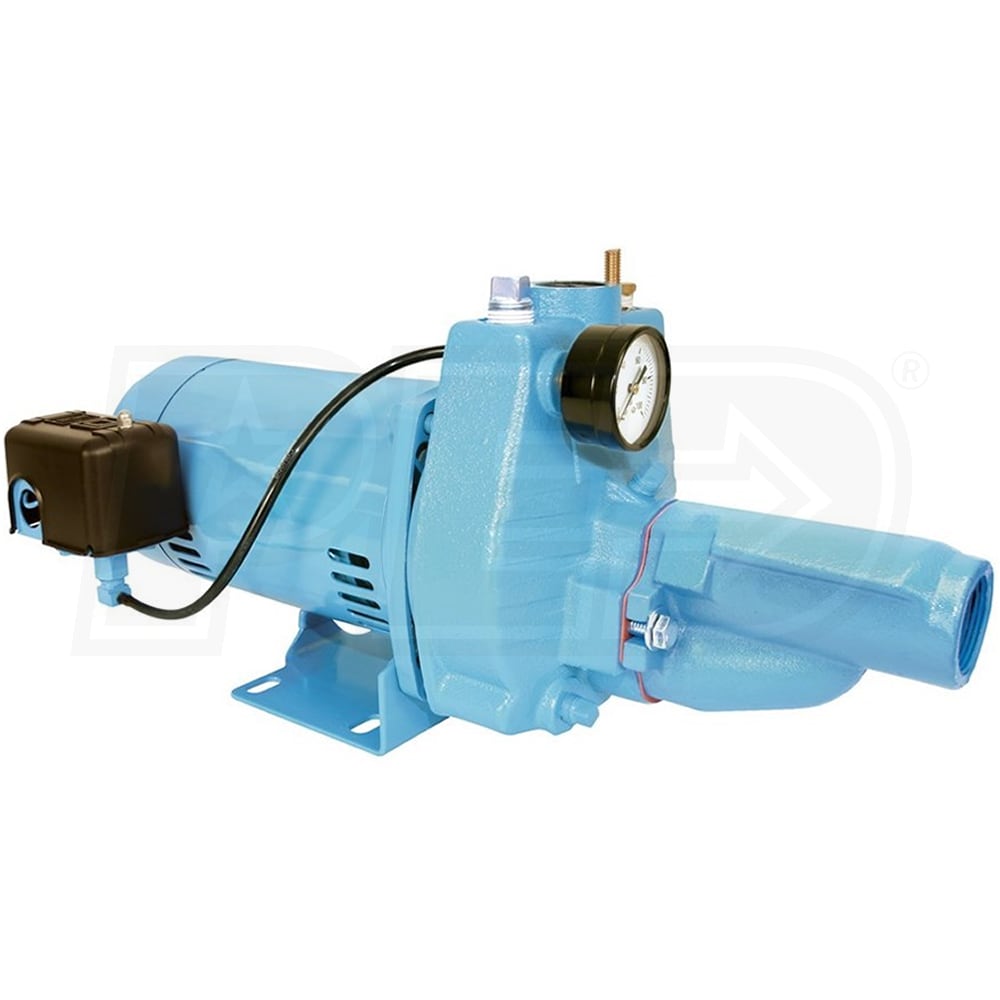

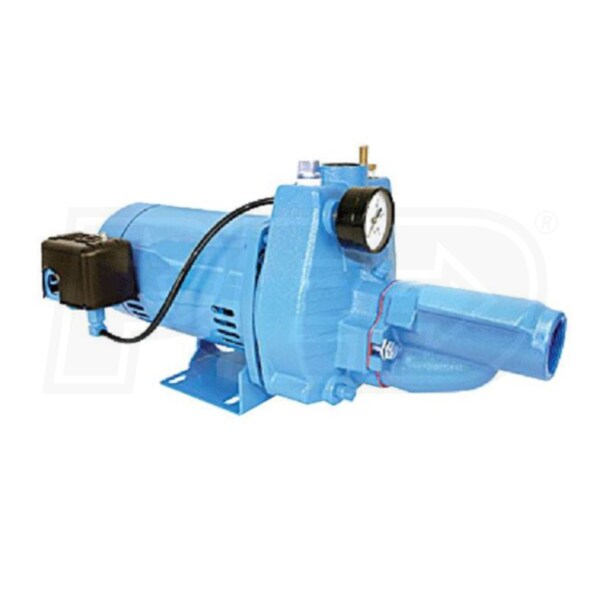

Little Giant JPC-050-C - 1/2 HP Cast Iron Convertible Jet Pump w/ Injector Kit
Little Giant JPC-050-C - 1/2 HP Cast Iron Convertible Jet Pump w/ Injector Kit
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
11.1
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
11.1 Gallons
Features
Features
- 1/2 HP Convertible Jet Pump w/ Deep Well Venturi
- Ideal for use in shallow wells (less than 25’)
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monior pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minmizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- 1-Inch Discharge
- Compatible with most residential plumbing applications
- 2 Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
11.1 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
71
Total Head Lift
176 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
18.78 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
010121119529
Inlet Size
1-1/4"
Style
GPM
11.1
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
11.1 Gallons
Features
Features
- 1/2 HP Convertible Jet Pump w/ Deep Well Venturi
- Ideal for use in shallow wells (less than 25’)
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monior pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minmizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- 1-Inch Discharge
- Compatible with most residential plumbing applications
- 2 Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
11.1 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
71
Total Head Lift
176 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
18.78 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
010121119529
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
11.1 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
71
Total Head Lift
176 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
18.78 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
010121119529
