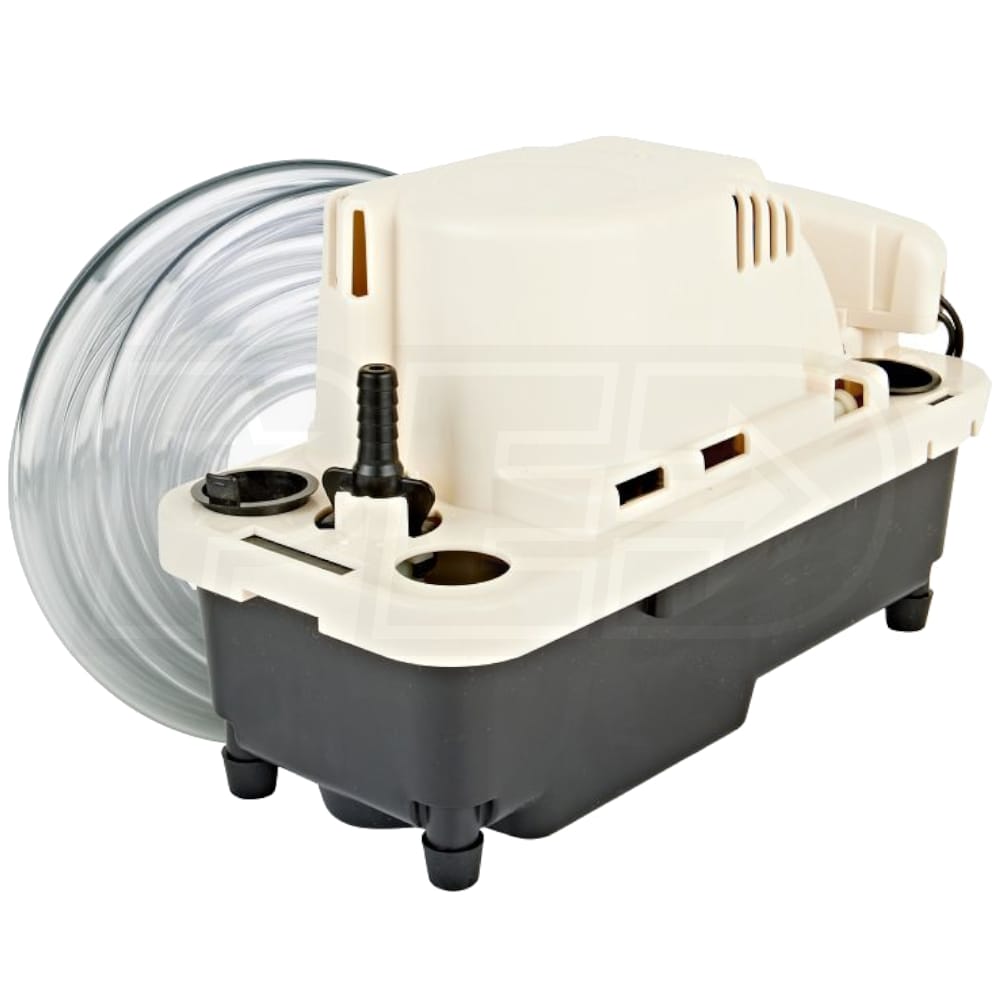

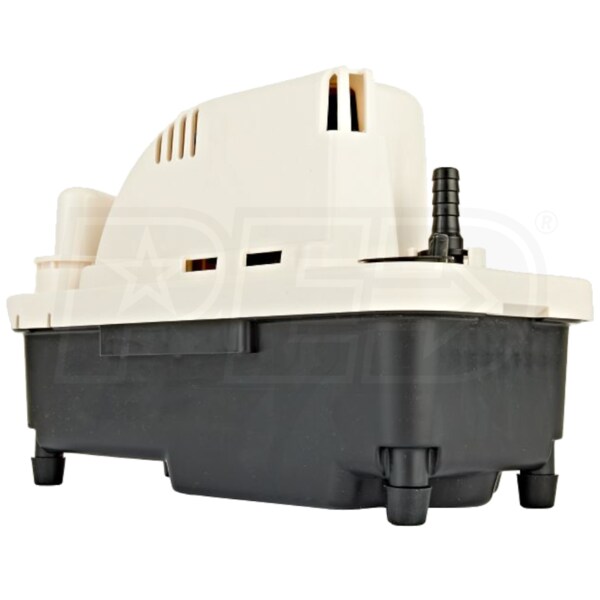

Little Giant VCMA-20ULST-PRO - 1.4 GPM High Capacity Pro Series Condensate Removal Pump w/ 20' Tubing

Model:

554650

Write A Review
$151.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Little Giant VCMA-20ULST-PRO - 1.4 GPM High Capacity Pro Series Condensate Removal Pump w/ 20' Tubing
Little Giant VCMA-20ULST-PRO - 1.4 GPM High Capacity Pro Series Condensate Removal Pump w/ 20' Tubing
Model: 554650
$151.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/8 Inch

Style

Condensation

GPM

1.4 Gallons

  • VCMA-20ULST-PRO Series High Capacity Condensate Removal Pump

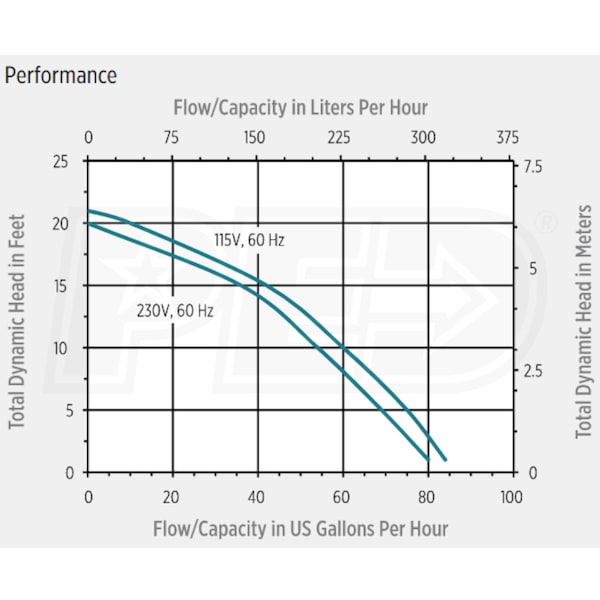

  • Capable of pumping up to 84 GPH @ 1', 60 GPH @10' (Off @ 21')
  • Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
  • Also for high efficiency oil & gas-fired condensing furnaces/boiler equipment
  • High-Impact ABS Thermoplastic Housing/Motor Cover Volute & Switch Float
  • Engineered to minimize rust and corrosion in moist environments
  • Thermally Protected, 1/30 HP High Performance Motor (115V)
  • Energy efficient at only 1.5A; Improved cooling for longer life
  • 3/8" O.D. Barbed Discharge Adapter
  • Makes servicing this pump an easy task
  • Internal Float Switch For Start & Stop Operation w/ Ext. Test Switch
  • Vertical centrifugal pump design, for water up to 140F
  • External, Safety Overflow Switch w/ (2) 5" Switch Lead Wires
  • Dual function NO & NC operation (Set to NO from factory)
  • Oil Resistant 1/3 Gallon Tank w/ (3) 1-1/8" Inlets w/ Removable Cap Plug
  • Suits the needs of a wide variety of residential/HVAC applications
  • "Quick Install" Wall Mounting Bracket & Rubber Pump Feet
  • Minimizes noises and vibration during operation
  • 6' Power Cord w/ 3-Prong Plug
  • Includes: 20' 3/8" I.D. Vinyl Discharge Tubing
  • 2-Year Limited Warranty
  • *Note Replaces Model 554550
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

554650
specs product image PID-151853
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.4 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
3/8 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Maximum PSI
9.1
Total Head Lift
21 Feet
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.03 hp
Overview
Product Category
Water Pump
Weight
5 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
10.2 Inches
Product Width
4.8 Inches
Product Height
6.5 Inches
Accessories
Float Switch
Yes
Hose
Sold Separately
