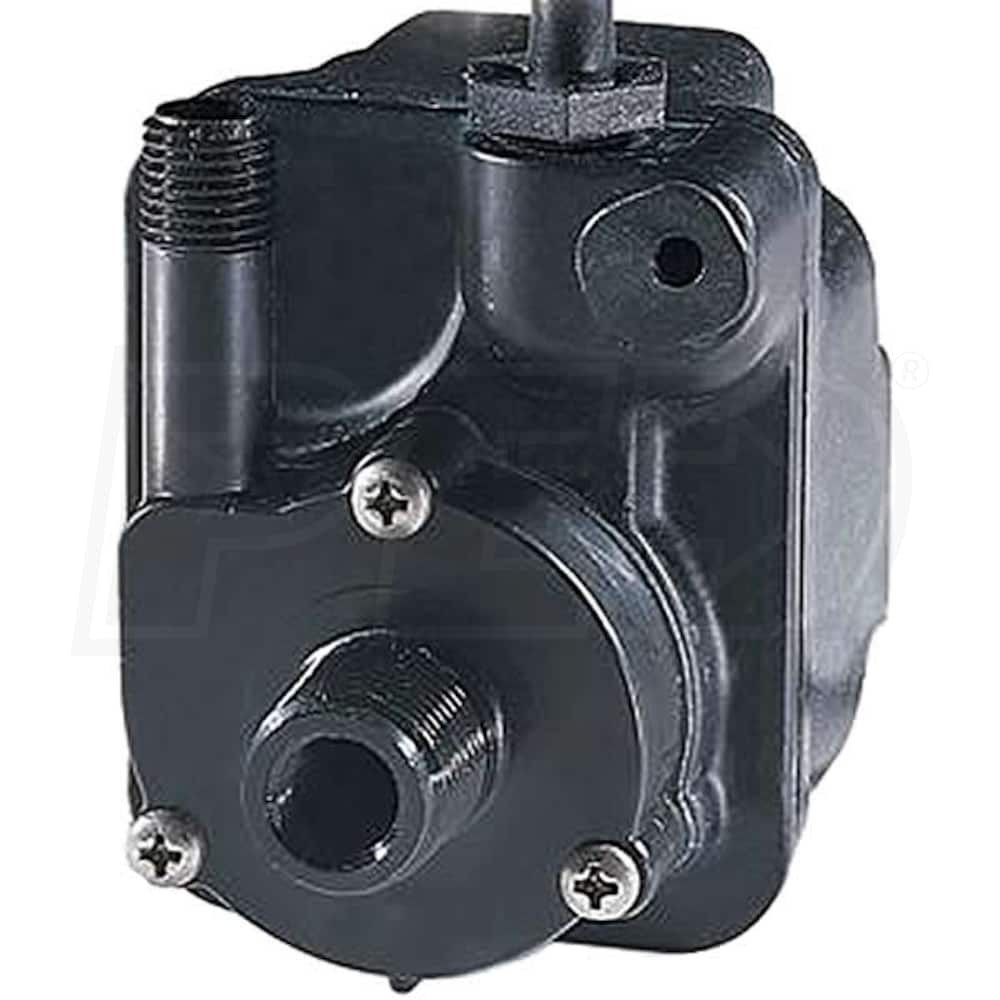

Little Giant 1-EA-42 - 2.8 GPM 1/125 HP Dual-Purpose Epoxy Encapsulated (Potted) Pump

Model:

518087

Write a Review
$75.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 4 In-Stock
Ships Thursday, Apr 22nd
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Little Giant 1-EA-42 - 2.8 GPM 1/125 HP Dual-Purpose Epoxy Encapsulated (Potted) Pump
Little Giant 1-EA-42 - 2.8 GPM 1/125 HP Dual-Purpose Epoxy Encapsulated (Potted) Pump
Model: 518087
$75.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1/2"

Style

Utility

GPM

2.8 Gallons

  • Little Giant 1-EA Series Epoxy Encapuslated Direct Drive Pump
  • For water transfer/recirculation/displays & machine tool colants
  • For Submersible or In-Line Use
  • 1/125 HP Epoxy Encapsulated Motor
  • Glass-Filled Polyester Houing
  • Epoxy Coated Cast Aluminum Cover
  • Nylon Volute
  • Viton Shaft Seal
  • UL & CSA Listed
  • Additional Specs:

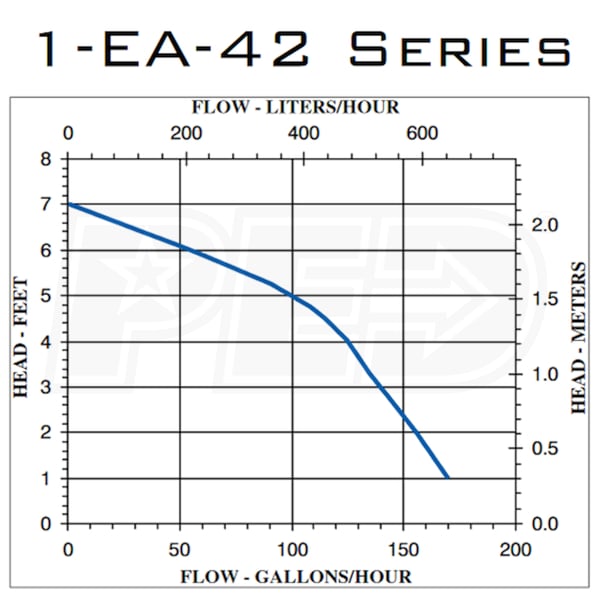

  • Capacity: 170 GPH @ 1'
  • Shut Off: 7'
  • Liquid Temprature: Up to 100°F
  • Discharge: 1/4" MNPT
  • Intake: 1/2" MNPT & 1/4" FNPT
  • Impeller: Nylon
  • Cord: 10'
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

518087
Motor
Voltage
120 Volt
Running Amps
.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
2.8 Gallons
Inlet Diameter
1/2"
Outlet Diameter
1/4"
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
7 Feet
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Overview
Weight
3.17 Pounds
Consumer Warranty
1 Year
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.5 Inches
UPC
010121180871

Reviews

(5)
Little Giant 518087 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
Can the discharge hose be converted to a 1/2" diameter and still achieve a total of 7 foot of head lift?
Mark R.
from Wisconsin
August 06, 2017
Answer
Hi Mark. You can ALWAYS increase the diameter of your discharge hose without losing any pump performance, so to answer your question, yes you can. Just please be aware that this pump will NOT pump any higher than 7 feet vertically and setting it up for that total 7 foot head lift will max out the performance and power of that pump. This could result in a shorter than normal pump life. In other words, if your application requires a total 7 foot vertical head lift, I would suggest a pump that has a higher head rating.
