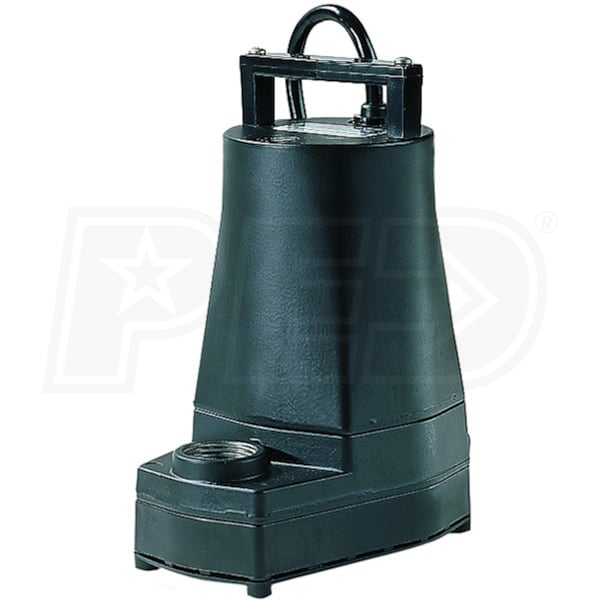

Little Giant 5-MSPR - 20 GPM (1") Aluminum Submersible Utility Pump
Model: 505486
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
20
Gallons
Inlet Size
N/A
Style
Utility
GPM
20 Gallons
Features
Features
- Submersible Multi-Purpose Utility Pump
- Ideal for emergency water removal
- Great for basements, rooftops, window wells and crawl spaces
- 1/6 HP Energy Efficient Motor
- Continuous duty rated with thermal overload protection
- Epoxy-Coated Cast Aluminum Construction w/ Viton Shaft Seal
- Designed to maximize pump life
- Screened Bottom Intake
- Removes water to within 1/8" of surface
- Screen removes for easy cleaning
- Perfect For Quick & Easy Household Use
- 1" discharge w/ 3/4" garden hose adapter
- 10' power cord
Specifications
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
20 Gallons
Outlet Diameter
1"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
26 Feet
Submersible
Yes
Engine
Horsepower
0.16 hp
Overview
Weight
9 Pounds
Consumer Warranty
1 Year
Product Length
6.1 Inches
Product Width
4.4 Inches
Product Height
8.6 Inches
UPC
010121054868
Inlet Size
N/A
Style

GPM
20
Gallons
Inlet Size
N/A
Style
Utility
GPM
20 Gallons
Features
Features
- Submersible Multi-Purpose Utility Pump
- Ideal for emergency water removal
- Great for basements, rooftops, window wells and crawl spaces
- 1/6 HP Energy Efficient Motor
- Continuous duty rated with thermal overload protection
- Epoxy-Coated Cast Aluminum Construction w/ Viton Shaft Seal
- Designed to maximize pump life
- Screened Bottom Intake
- Removes water to within 1/8" of surface
- Screen removes for easy cleaning
- Perfect For Quick & Easy Household Use
- 1" discharge w/ 3/4" garden hose adapter
- 10' power cord
Specifications
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
20 Gallons
Outlet Diameter
1"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
26 Feet
Submersible
Yes
Engine
Horsepower
0.16 hp
Overview
Weight
9 Pounds
Consumer Warranty
1 Year
Product Length
6.1 Inches
Product Width
4.4 Inches
Product Height
8.6 Inches
UPC
010121054868
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
20 Gallons
Outlet Diameter
1"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
26 Feet
Submersible
Yes
Engine
Horsepower
0.16 hp
Overview
Weight
9 Pounds
Consumer Warranty
1 Year
Product Length
6.1 Inches
Product Width
4.4 Inches
Product Height
8.6 Inches
UPC
010121054868
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Hi Jim,
I am looking to buy either Little Giant model 505000 or 505486. What is the difference between these models? I have been looking at the specs and everything looks pretty much the same. I don't see how the voltage listed for the 505000 - is this the difference? Also, do you know if they still make Geyser pumps? I currently have this brand and it has worked well for 20 years. Was really hoping to get another one!
Thank you
Thank you
Kim
from New York
May 13, 2015
Answer
The 505500 is blue and the 505486 is black and is 1/2" taller than the 505000. That is the ONLY difference. Both pumps are rated at 120 volts. Geyser pump were and still are made by Simer Pumps and is a line of pump that we also offer.
http://www.waterpumpsdirect.com/quick_search.php
http://www.waterpumpsdirect.com/quick_search.php
Was this answer helpful?
Yes

0
No

0
