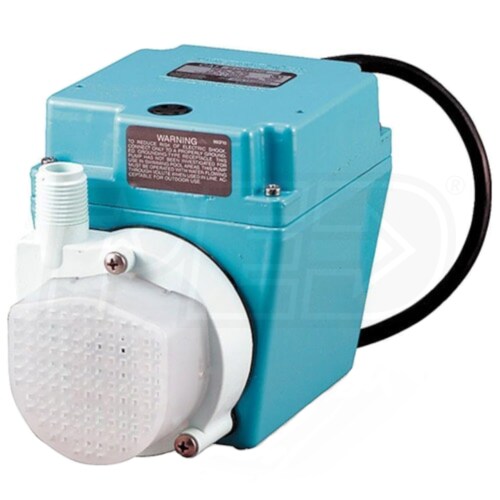

Little Giant 4E-34NR - 13.5 GPM 1/12 HP Submersible Water Pump
Model: 504203
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3/4"
Style

GPM
13.5
Gallons
Inlet Size
3/4"
Style
Utility
GPM
13.5 Gallons
Features
Features
- 4E-34NR Oil-Filled, Direct Drive Submersible Water Pump
- For water transfer/recirculation/displays & machine tool colants
- 1/12 HP Oil-Filled Heavy Duty Motor
- Epoxy Coated Cast Aluminum Housing & Cover
- Nylon Volute
- Aluminum Backplate
- Viton Shaft Sweal
- UL Listed
- Additional Specs:
- Capacity: 810 GPH @ 1'
- Shut Off: 24.5'
- Liquid Temprature: Up to 120°F
- Discharge: 1/2" MNPT
- Intake: 3/4" FNPT
- Impeller: Nylon
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
13.5 Gallons
Inlet Diameter
3/4"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
24.5 Feet
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.08 hp
Overview
Weight
8.5 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.5 Inches
Product Height
5.5 Inches
UPC
010121042032
Inlet Size
3/4"
Style

GPM
13.5
Gallons
Inlet Size
3/4"
Style
Utility
GPM
13.5 Gallons
Features
Features
- 4E-34NR Oil-Filled, Direct Drive Submersible Water Pump
- For water transfer/recirculation/displays & machine tool colants
- 1/12 HP Oil-Filled Heavy Duty Motor
- Epoxy Coated Cast Aluminum Housing & Cover
- Nylon Volute
- Aluminum Backplate
- Viton Shaft Sweal
- UL Listed
- Additional Specs:
- Capacity: 810 GPH @ 1'
- Shut Off: 24.5'
- Liquid Temprature: Up to 120°F
- Discharge: 1/2" MNPT
- Intake: 3/4" FNPT
- Impeller: Nylon
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
13.5 Gallons
Inlet Diameter
3/4"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
24.5 Feet
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.08 hp
Overview
Weight
8.5 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.5 Inches
Product Height
5.5 Inches
UPC
010121042032
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
13.5 Gallons
Inlet Diameter
3/4"
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
24.5 Feet
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.08 hp
Overview
Weight
8.5 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.5 Inches
Product Height
5.5 Inches
UPC
010121042032
