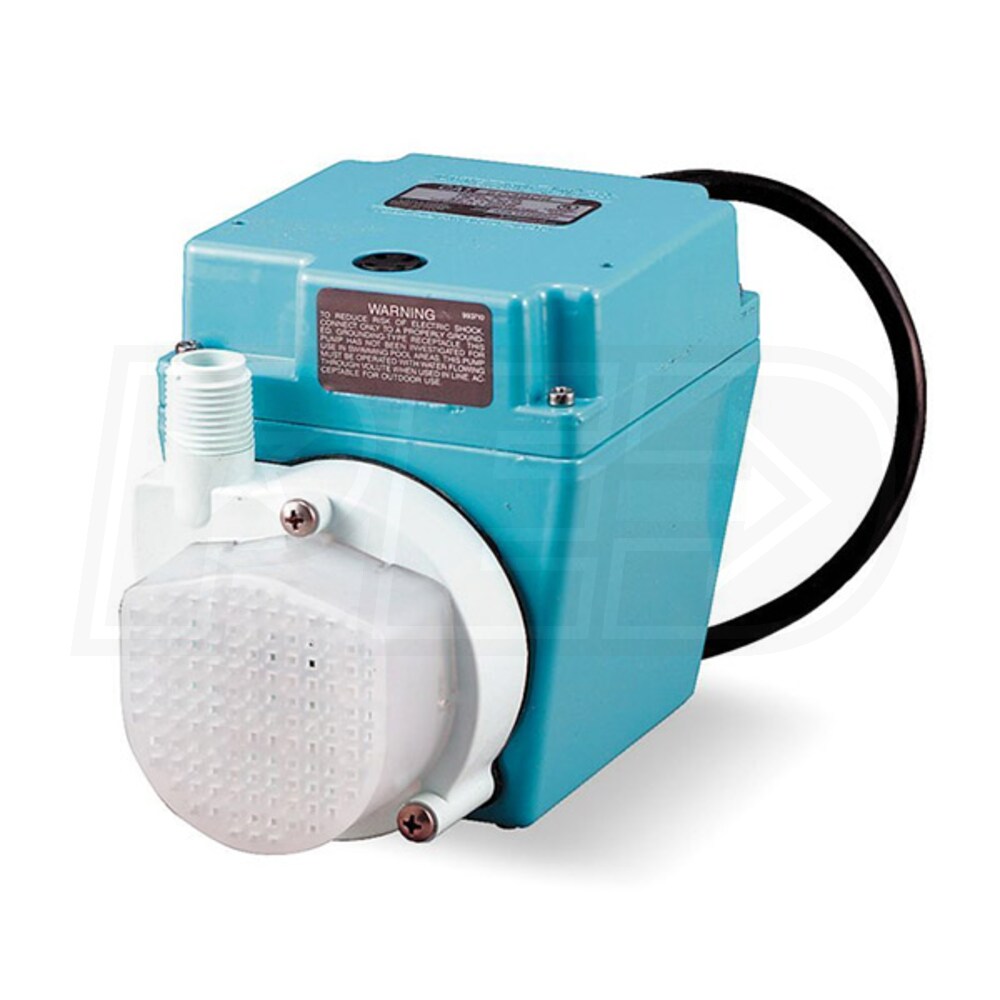

Little Giant 3E-12N - 8.3 GPM 1/15 HP Dual-Purpose Submersible Fountain Pump
Model: 503103
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$154.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 09, 2020
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Fountain Pumps
GPM
8.3
Gallons
Inlet Size
N/A
Style
Fountain
GPM
8.3 Gallons
Features
Features
  • Little Giant 3E-12N Oil-Filled Direct Drive Pump
  • For water transfer/recirculation/displays & machine tool colants
  • For Submersible or In-Line Use
  • 1/15 HP Oil-Filled Motor
  • Epoxy Coated Cast Aluminum Housing & Cover
  • Nylon Volute
  • Aluminum Backplate
  • Viton Shaft Seal
  • Polypropylene Screen
  • UL Listed
  • Additional Specs:
  • Capacity: 500 GPH @ 1'
  • Shut Off: 17'
  • Liquid Temprature: Up to 120°F
  • Discharge: 1/2" MNPT
  • Intake: 1/2" FNPT
  • Impeller: Nylon
  • Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
3.2
Pump
Gallons Per Minute
8.3 Gallons
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Total Head Lift
17.3 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.06 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.4 Inches
Product Height
5.4 Inches
UPC
010121031036

Inlet Size
N/A
Style
Fountain Pumps
GPM
8.3
Gallons
Inlet Size
N/A
Style
Fountain
GPM
8.3 Gallons
Features
Features
  • Little Giant 3E-12N Oil-Filled Direct Drive Pump
  • For water transfer/recirculation/displays & machine tool colants
  • For Submersible or In-Line Use
  • 1/15 HP Oil-Filled Motor
  • Epoxy Coated Cast Aluminum Housing & Cover
  • Nylon Volute
  • Aluminum Backplate
  • Viton Shaft Seal
  • Polypropylene Screen
  • UL Listed
  • Additional Specs:
  • Capacity: 500 GPH @ 1'
  • Shut Off: 17'
  • Liquid Temprature: Up to 120°F
  • Discharge: 1/2" MNPT
  • Intake: 1/2" FNPT
  • Impeller: Nylon
  • Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
3.2
Pump
Gallons Per Minute
8.3 Gallons
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Total Head Lift
17.3 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.06 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.4 Inches
Product Height
5.4 Inches
UPC
010121031036
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
3.2
Pump
Gallons Per Minute
8.3 Gallons
Outlet Diameter
1/2"
Housing Material
Aluminum
Impeller Material
Nylon
Total Head Lift
17.3 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.06 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.4 Inches
Product Height
5.4 Inches
UPC
010121031036
