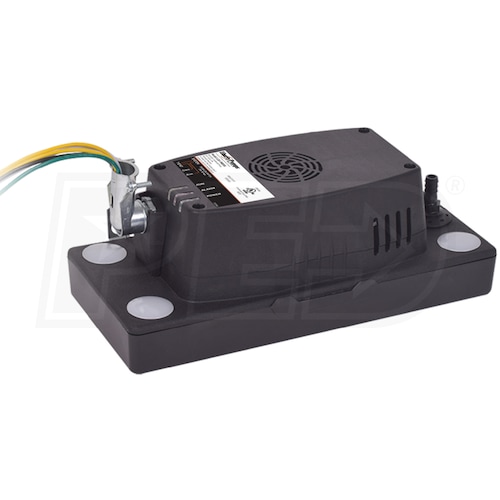

Liberty Pumps LCU-PR20S - Plenum Rated Condensate Pump (115V) w/ Safety Switch (22' Lift)
Model:
LCU-PR20S
Number of Reviews
(0)
Write A Review
Ask a Question
$187.50
Free Shipping
×
Free Shipping
*This product qualifies for
Free Shipping
anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks
View Shipping Details
Shipping Details
ZIP Code
Update
Free to Lower 48 States
Standard Rates to
Alaska
,
Hawaii
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
Liberty Pumps LCU-PR20S - Plenum Rated Condensate Pump (115V) w/ Safety Switch (22' Lift)
Model: LCU-PR20S
Number of Reviews
(0)
Ask a Question
$187.50
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Inlet Size
3/4 Inch
Style
Condensation
GPM
1.66 Gallons
Liberty Pumps LCU-PR Series - Plenum Rated Condensate Pump (115V)
Capable of pumping up to 22' vertically
PLENUM Rated
For air conditioning, refrigeration & dehumidification equipment
Installed in air-handling and plenum applications having limited space
3/8 Gallon High-Impact ABS Tank
Provides plenty of volume which prevents constant cycling
(4) 3/4" Inlet Drain Holes & 3/8" O.D. Barbed Outlet
Universal design for multiple applications
Barbed fitting with integrated check valve
Indicator Lights
Easily see what's going on with your pump
Built-In Safety Switch
Prevents overflow from a clogged discharge or pump failure
Vibration Dampening Feet & Motor Mounts
Allows for quieter operation
Designed For Hardwired Applications
Flying leads, Fitting accepts 1/2" flexible conduit
Temperature Ratings
Continuous duty 140°F
Maximum inlet temperature 160°F
Not suitable for contact with steam or gases that exceed 160°F
LCU-PR Meets UL Standard 2043 For Plenum Applications
3-Year Limited Warranty
California residents see
Prop 65 WARNINGS
Show All Features
×
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
LCU-PR20S
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.9
Pump
Gallons Per Minute
1.66 Gallons
Inlet Diameter
3/4 Inch
Outlet Diameter
3/8 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
22 Feet
Check Valve Included
Yes
Submersible
No
Overview
Product Category
Water Pump
Weight
5 Pounds
Consumer Warranty
3 Years
Product Length
11.375 Inches
Product Width
5.5 Inches
Product Height
4.25 Inches
UPC
671812159233
