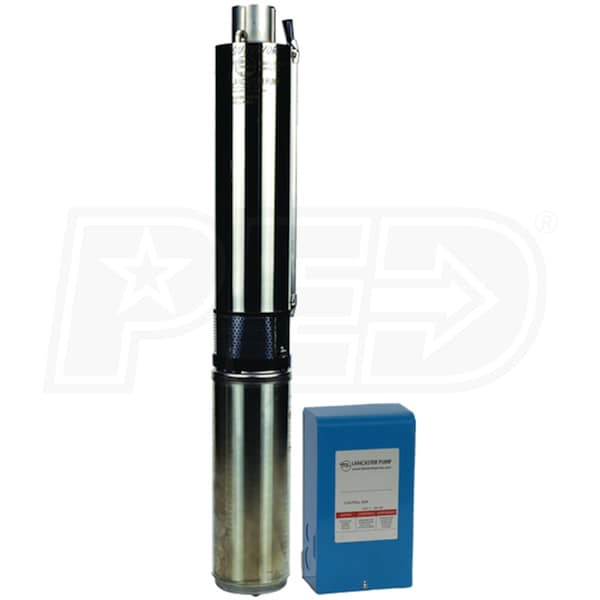

Lancaster Pump 3LSPU10008-2 - 1 HP 15 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB

Lancaster Pump 3LSPU10008-2 - 1 HP 15 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB
Model: 2-3LSPU10008-2
$682.06
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$682.06Buy Now
No Sales Tax* (Except IL)$682.06Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
15
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
15 Gallons
Features
Features
  • SURVIVOR U-Series 15 GPM 4" Sub. Well Pump (3-Wire 230V)
  • For 4" I.D. or + Wells (<260'); 3-Wire Starting - Control Box Included
  • 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Capacitor-start induction run (CSIR) design; continuous duty rated
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
  • Superior strength, while minmizing corrosion & Field replaceable check valve
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • 1 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
  • Includes 230V relay, start capacitor & 2 ground/cable terminals
  • NEMR 3R Outdoor rated, painted steel enclosure, QD components
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
7
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1 hp
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
260 Feet
Maximum PSI
111
Submersible
Yes
Accessories
Control Box
Yes
Overview
Assembly Required
Yes
Weight
31 Pounds
Product Length
26.65 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years

Inlet Size
N/A
Style
Deep Well
GPM
15
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
15 Gallons
Features
Features
  • SURVIVOR U-Series 15 GPM 4" Sub. Well Pump (3-Wire 230V)
  • For 4" I.D. or + Wells (<260'); 3-Wire Starting - Control Box Included
  • 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Capacitor-start induction run (CSIR) design; continuous duty rated
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
  • Superior strength, while minmizing corrosion & Field replaceable check valve
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • 1 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
  • Includes 230V relay, start capacitor & 2 ground/cable terminals
  • NEMR 3R Outdoor rated, painted steel enclosure, QD components
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
7
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1 hp
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
260 Feet
Maximum PSI
111
Submersible
Yes
Accessories
Control Box
Yes
Overview
Assembly Required
Yes
Weight
31 Pounds
Product Length
26.65 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
7
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1 hp
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
260 Feet
Maximum PSI
111
Submersible
Yes
Accessories
Control Box
Yes
Overview
Assembly Required
Yes
Weight
31 Pounds
Product Length
26.65 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Reviews
(3)
+
Lancaster Pump 2-3LSPU10008-2 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Do I need to buy a check valve or anything else with this pump?
Jim
from Connecticut
March 03, 2017
Answer
These pumps do include a built-in check valve. If however, your total vertical head lift exceeds 100 feet, you would need to install an additional check valve at every 100 foot level. You can also check out the Pump Manual for additional accessories that you may need to purchase. Please note that we only provide the pump. Any additional accessories needed for installation should be accessible at your local hardware or big box store.
