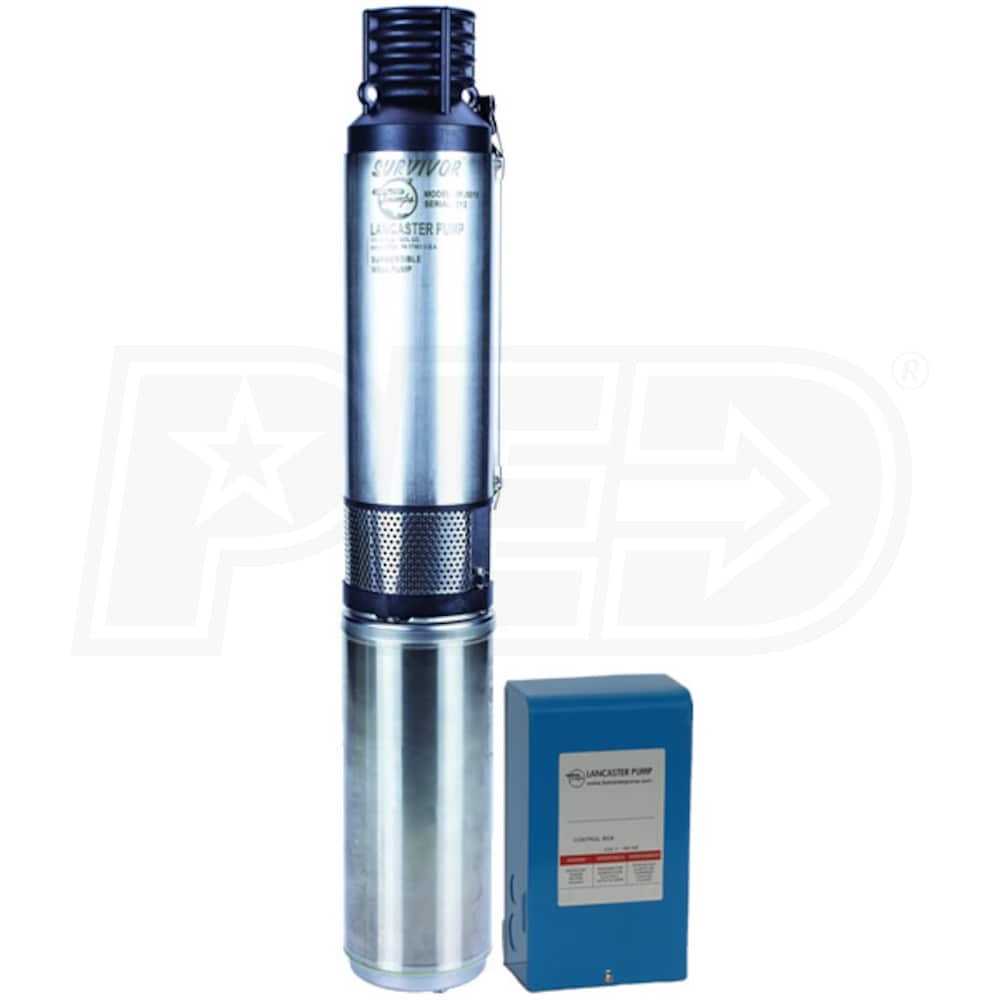

Lancaster Pump 3LPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump (3-Wire 230V) & CB

Model:

2-3LPT5007-2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Lancaster Pump 3LPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump (3-Wire 230V) & CB
Lancaster Pump 3LPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump (3-Wire 230V) & CB
Model: 2-3LPT5007-2
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

10 Gallons

  • SURVIVOR T-Series 10 GPM 4" Sub. Well Pump (3-Wire 230V)
  • For 4" I.D. or + Wells (<220'); 3-Wire Starting - Control Box Included
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Capacitor-start induction run (CSIR) - Req. Control Box (Included)
  • Stainless Steel Motor Casing & Splined Shaft End
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25 Glass-filled Noryl® Discharge Head & Motor Support
  • Minimizes corrosion from high mineral content water
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 1/2 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
  • Includes 230V relay, start capacitor & 2 ground/cable terminals
  • NEMR 3R Outdoor rated, painted steel enclosure, QD components
  • 3-Year Limited Warranty

Specifications

2-3LPT5007-2
specs product image PID-57867
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
6.4
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Thermoplastic
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
94
Total Head Lift
220 Feet
Submersible
Yes
Engine
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
23.7 Pounds
Consumer Warranty
3 Years
Product Length
23.03 Inches
Product Width
3.81 Inches
Accessories
Control Box
Yes
