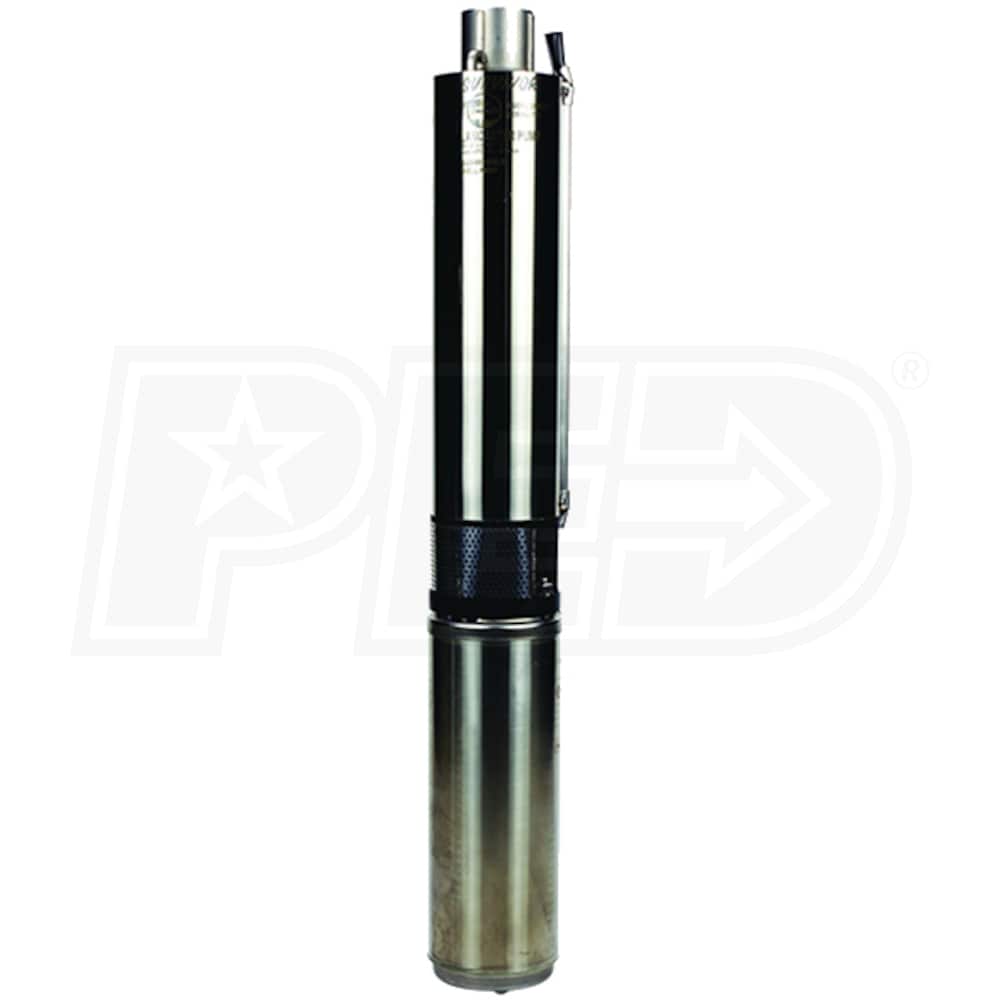

Lancaster Pump 2SPW15009-2 - 1-1/2 HP 22 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)

Model:

2-2SPW15009-2

Write A Review
$1,344.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Lancaster Pump 2SPW15009-2 - 1-1/2 HP 22 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)
Lancaster Pump 2SPW15009-2 - 1-1/2 HP 22 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)
Model: 2-2SPW15009-2
$1,344.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Inlet Size

N/A

Style

Deep Well

GPM

22 Gallons

  • SURVIVOR W-Series 22 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<260'); 2-Wire Starting - No Control Box Required
  • 1-1/2 HP Franklin Electric Encapsulated Sub. Motor
  • Capacitor-start induction run (CSIR) design; continuous duty-rated
  • Stainless Steel Motor Casing & Glass-filled Noryl® Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
  • Superior strength, while minimizing corrosion & Field replaceable check valve
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy Wall, High-Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • 3-Year Limited Warranty

Specifications

2-2SPW15009-2
specs product image PID-139902
Motor
Voltage
240 Volt Single-Phase
Wire
2-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
124
Total Head Lift
310 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
38.1 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
31.81 Inches
Product Width
3.81 Inches

Reviews

Lancaster Pump 2-2SPW15009-2 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
Does this pump have a check valve already installed?
Tony
from Illinois
December 21, 2023
How long does this pump generally last?
Britt
from Mississippi
December 18, 2023
