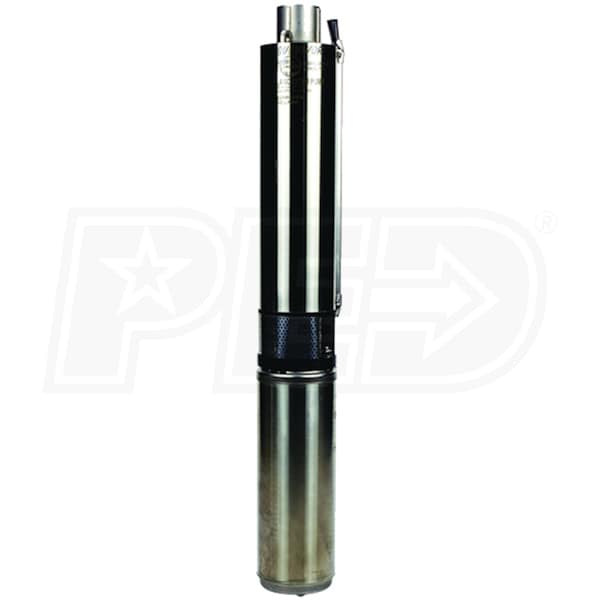

Lancaster Pump 2LSPL5009-2 - 1/2 HP 7 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)

Lancaster Pump 2LSPL5009-2 - 1/2 HP 7 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)
Model: 2-2LSPL5009-2
$442.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$442.00Buy Now
No Sales Tax* (Except IL)$442.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
7
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
7 Gallons
Features
Features
  • SURVIVOR L-Series 7 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<300'); Two-Wire Starting - No Control Box Req
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Noryl« Motor Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
300 Feet
Maximum PSI
128
Submersible
Yes
Overview
Weight
25.6 Pounds
Product Length
24.57 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years

Inlet Size
N/A
Style
Deep Well
GPM
7
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
7 Gallons
Features
Features
  • SURVIVOR L-Series 7 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<300'); Two-Wire Starting - No Control Box Req
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Noryl« Motor Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
300 Feet
Maximum PSI
128
Submersible
Yes
Overview
Weight
25.6 Pounds
Product Length
24.57 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
300 Feet
Maximum PSI
128
Submersible
Yes
Overview
Weight
25.6 Pounds
Product Length
24.57 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Do I need to buy a check valve or anything else with this pump?
Jim
from Connecticut
March 03, 2017
Answer
These pumps do include a built-in check valve. If however, your total vertical head lift exceeds 100 feet, you would need to install an additional check valve at every 100 foot level. You can also check out the Pump Manual for additional accessories that you may need to purchase. Please note that we only provide the pump. Any additional accessories needed for installation should be accessible at your local hardware or big box store.
