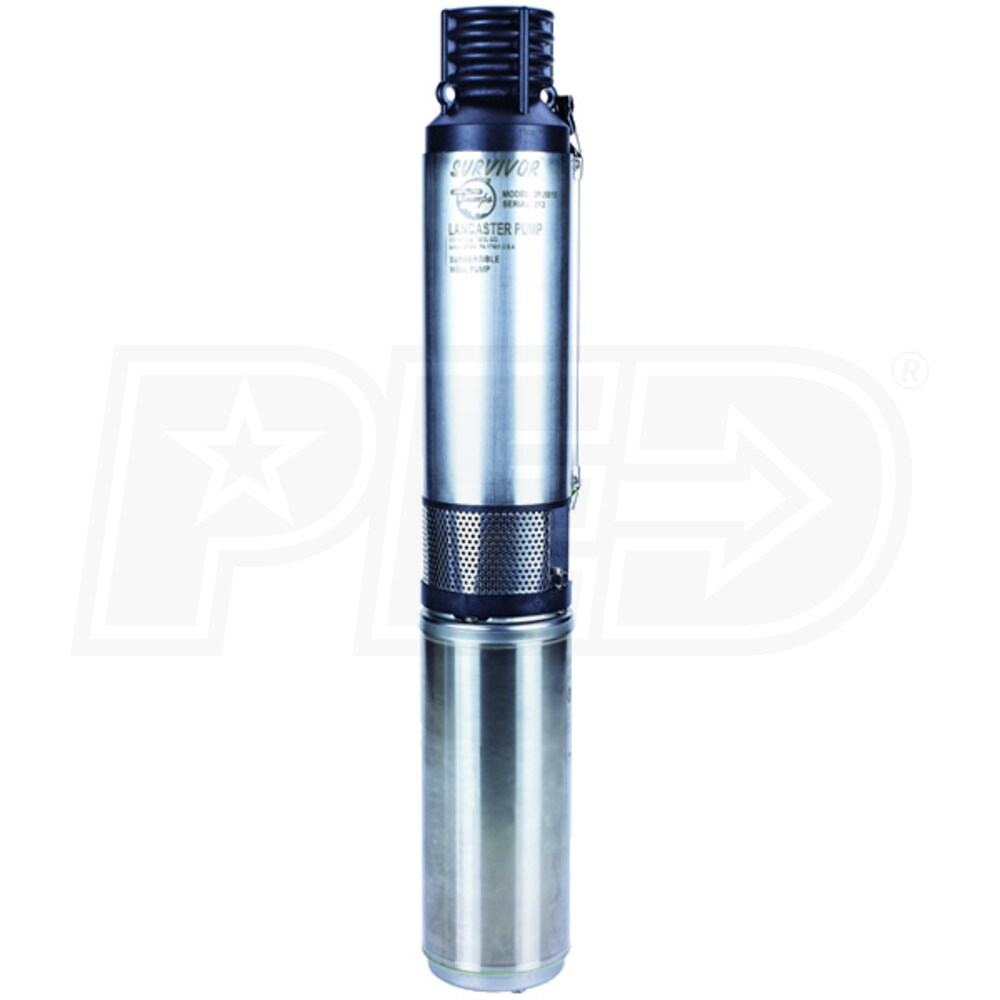

Lancaster Pump 2LPU7506-2 - 3/4 HP 15 GPM Deep Well Submersible Pump (2-Wire 230V)
Model:
2-2LPU7506-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
15 Gallons
- SURVIVOR U-Series 15 GPM 4" Sub. Well Pump (2-Wire 230V)
- For 4" I.D. or + Wells (<180'); 2-Wire Starting - No Control Box Required
- 3/4 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
- Capacitor-start induction run (CSIR) design; continuous duty rated
- Stainless Steel Motor Casing & SS Splined Hex Shaft End
- Hermetically sealed, permanently lubricated, for greater heat exchange
- Built-In Lighting Arrestors & Automatic Reset Overload
- Provides surge and overhead protection for increased protection
- 1.25 Glass-filled Noryl® Discharge Head & Motor Support
- Minimizes corrosion, Field replaceable check valve & molded handles
- Balanced Teflon® Impregnated Thermoplastic Impellers
- Reduces overall friction to maximize water flow
- Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
- Each stage has separate comp. thrust washer for added protection
- Heavy wall, High Quality SS Pump Casing & SS Intake Screen
- Sized inside for perfect stage alignment; wouldn't snap off during install
- 3-Year Limited Warranty
Specifications
2-2LPU7506-2

Motor
Voltage
240 Volt Single-Phase
Running Amps
7
Wire
2-Wire
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Thermoplastic
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
81
Total Head Lift
180 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 HP
Overview
Assembly Required
Yes
Weight
26.2 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
24.47 Inches
Product Width
3.81 Inches
Accessories
Control Box
No
