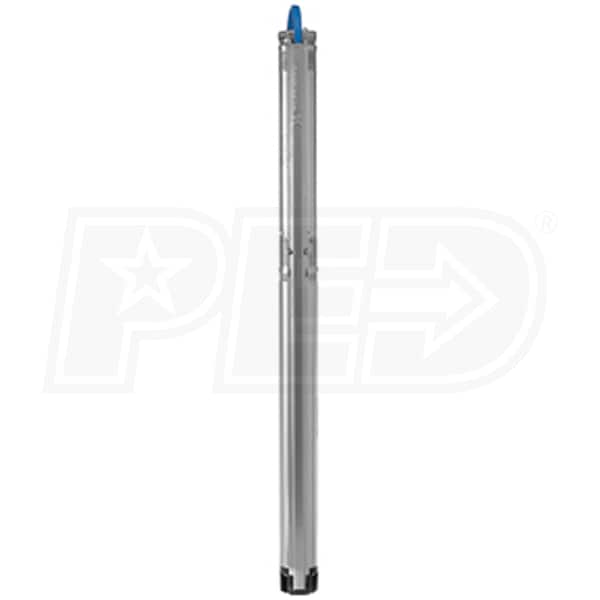

Grundfos 5SQE05-90 - 5 GPM 1/2 HP SQE-Series Deep Well Submersible Pump (90' Rated Head) (2W - 115V)
Model:
96160206
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
5 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Grundfos 5SQE05-90 - SQE Series 3" Submersible Well Pump (2W - 115V)
- Ideal for use with 3" I.D. or larger boreholes
- Rated 5 GPM @ 90' Head Lift

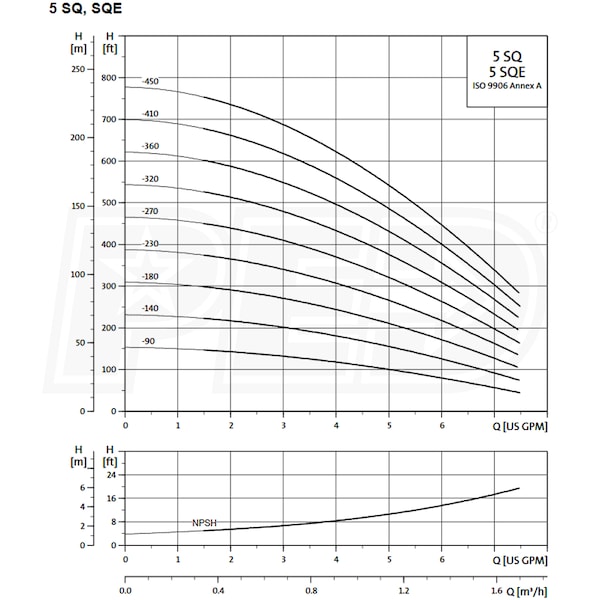

- Please see documents for sizing / pump curve information
- *Requires Grundfos CU 301 Constant Pressure Kit (Not Included) (Model 96438895)
- Constantly adapts pump performance to meet the demand for water
- Can provide constant water pressure from 40 -100 PSI
- 1/2 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 115V)
- Variable-speed, electronically controlled, communicates with CU 301 status box
- Highly-efficient Permanent-Magnet (PM) design w/ Thermal overload protection
- Soft Start Design
- Allows for a low starting current with a smooth and steady acceleration
- Low current draw helps reduce wear & provides ability to use smaller gauge wire
- Dry-Running Protection
- Helps extend pump life by preventing pump damage due to lack of water in well
- Highly-Efficient Stainless Steel Pump
- Polyamide reinforced hydraulic pump components for more efficient energy use
- "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
- Allows for high wear resistance to sand which extends pump life
- Top-Bearing Upthrust Protection
- Provides added protection to motor/pump during start-up
- Overvoltage & Undervoltage Protection
- Prevents damage to the motor if voltage moves outside rated range
- Overload Protection & Overtemperature Protection
- Reduces Motor RPM or turns off power to motor to prevent damage to motor
- Built-in temperature sensor ensures optimum operating conditions for the motor
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- 2-Year Warranty
Specifications
96160206
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
12
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
147 Feet
Discharge Port Size
1 Inch
Submersible
Yes
Series
SQE
Engine
Horsepower
0.5 hp
Overview
Product Category
Water Pump
Weight
12 Pounds
Consumer Warranty
2 Years
Product Length
30.4 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
