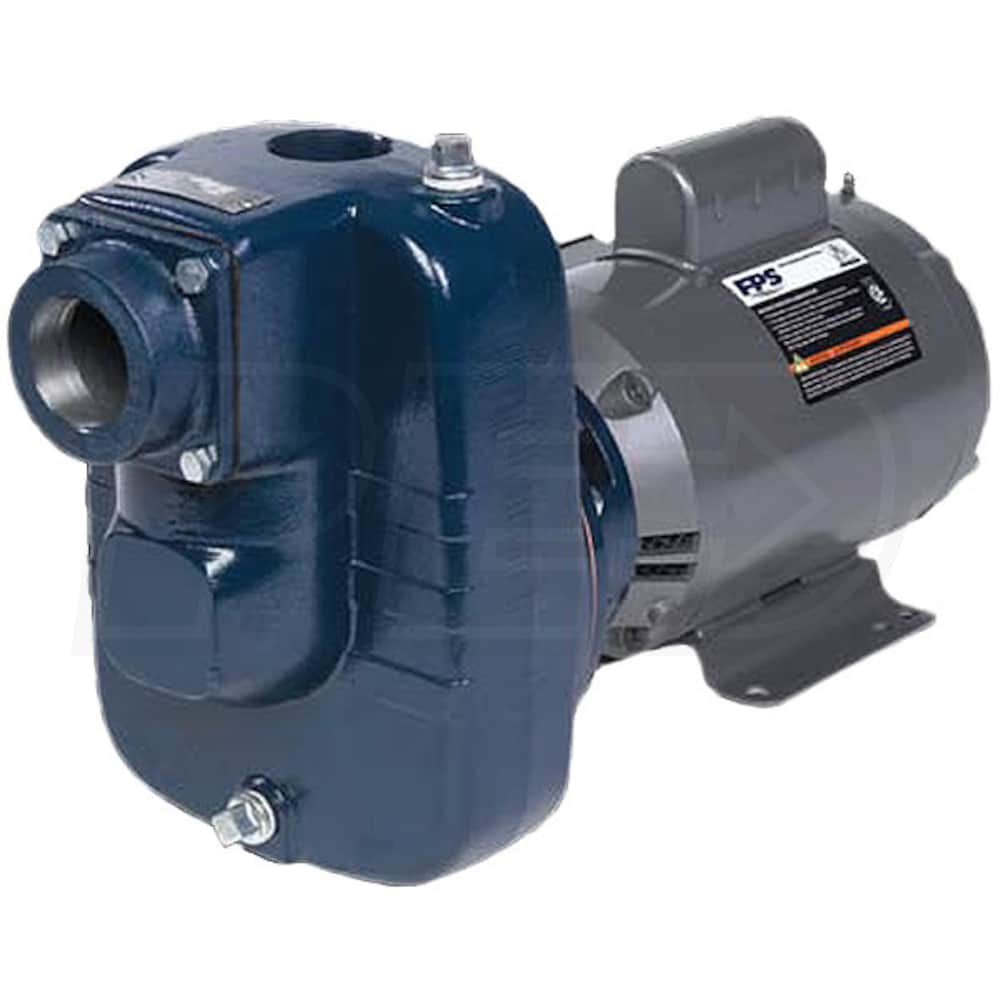

FPS Series Turf Boss 3 HP Sprinkler Pump (230V) •Designed for both high pressure & high capacity applications •Lawn/Turf irrigation, water transfer, construction & municipal use
Heavy Duty, Cast Iron Pump Housing •Highly durable, large design for easy self-priming & quiet operation
230V A.O. Smith JM Frame Motor (3600 RPM) •*Please Note* NOT A Dual Voltage Motor, Only works @ 230V
Heavy Duty Cast Iron Impeller & Diffuser •For maximum durability & efficient operation you can rely on
Lifts Water From A Depth Up To 25' - Self-Priming Design •Built-in suction check valve for fast priming & prevents back flow
Carbon/Ceramic/Stainless Steel Mechanical Seal & Viton Elastomers •Provides a reliable seal against water leakage
Engineered For Easy Service •Back pull-out design, leaves plumbing & base/case in place
2" FNPT Suction & Discharge •Allows for use in a variety of applications
60 PSI Max & Handles Water Temperatures up to 120°F
Q: I need to replace an irrigation pump that draws from a lake. Existing pump motor is a Baldor Industrial Cat. No. JL1323A. 3HP 230V 13amps 3450 rpm 60HZ 1phase. The setup is outside which leaves it exposed to the elements of Texas weather.
by Vernon Whisenhunt from Texas on July 04, 2016
A: Vernon,
All pumps that we sell here are going to need a vented housing for the Sprinkler and well pumps.
Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)-
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head-
Piping diameter on your suction and discharge (if already laid)-
Total GPM & PSI requirements-
Once you can provide this information, I'll be happy to assist you further.
100% of respondents would recommend this product to a friend
6 Reviews
Sort by
Kevin B. Faribault, MN
Purchased 7/24/17
Most Helpful Positive Review
REVIEWED
AUG.
17
2017
Product Is Excellent Once Pump Was Freed Up
The pump and motor were frozen when I received the pump. I was able to grab the motor shaft and free it up. Now the pump works great.
Pros:Quiet, I'd Buy It Again, Durable, Reliable
Cons:Frozen shaft when received
Kevin Recommends This Franklin Electric Product
Was this review helpful?
00
Mark S. Holly, MI
Purchased 8/12/17
REVIEWED
SEP.
05
2017
Very Happy With This Pump
It allowed me to expand my zones.
Pros:Quiet, I'd Buy It Again, Exceeded Expectations, High Quality
Cons:Heavy
Mark Recommends This Franklin Electric Product
This customer received compensation for their review. Read More
This customer recieved a small monetary compensation for their review. Customers are not required to write a positive review. The opinions they express are their own. This disclosure is in accordance with the Federal Trade Commission's 16 CFR, Part 255: Guides Concerning the Use of Endorsements and Testimonials in Advertising.
This customer recieved a small monetary compensation for their review. Customers are not required to write a positive review. The opinions they express are their own. This disclosure is in accordance with the Federal Trade Commission's 16 CFR, Part 255: Guides Concerning the Use of Endorsements and Testimonials in Advertising.
Was this review helpful?
01
Adam T. Pasadena, CA
Purchased 4/20/17
REVIEWED
JUN.
23
2017
Construction Project
Love it. Works great. Used for about 2 months and using for construction project.
Pump was delivered promptly and so far has met all expectations. The one SIGNIFICANT issue was the fact that the 3hp motor (single phase) came with wiring instructions that made the pump run backwards. Given that the motor direction was hard to determine as it is almost totally concealed and that there were no instructions as to how to reverse the motor direction, we wasted most of a day trying to get the thing to work properly. A ten minute call the following Monday morning had it all straightened out.
My complaint is that the seller KNOWS that Baldor motors typically come with wiring instructions that cause this problem and include NOTHING to give the installer direction on how to remedy it. Simply include alternate wiring instructions with the pump.
Also the pump design has the motor mounting plate approximately 3/4" higher than the pump housing, forcing the installer to create an elevated mount, but also the cast iron pump housing has a flat machined on its bottom that would appear to be intended to set on the floor, but it also has two tapped holes in it that would indicate that it might be a mount as well. No one at the pump manufacturer seemed to have a clue about actual physical mount instructions other than bolt it down. Not even a photo is available on the internet showing the pump actually installed, so it is left to your imagination.
Thanks you.
Pump was delivered promptly and so far has met all expectations. The one SIGNIFICANT issue was the fact that the 3hp motor (single phase) came with wiring instructions that made the pump run backwards. Given that the motor direction was hard to determine as it is almost totally concealed and that there were no instructions as to how to reverse the motor direction, we wasted most of a day trying to get the thing to work properly. A ten minute call the following Monday morning had it all... more
Pros:Durable, Quiet, I'd Buy It Again
Cons:Bad Instructions
Lisa Recommends This Franklin Electric Product
Was this review helpful?
11
Michael H. Cornville, AZ
Purchased 4/6/17
REVIEWED
APR.
28
2017
Completely Satisfied
Unsurpassed Made in U.S.A. Quality and fellow American technical support. This pump runs smooth, quiet, and strong. I expect it will still be running years beyond my time on this property. I wish I had bought this pump years ago, it would have saved me time, money, and maddening hassle. I am hauling the foreign made junk to the metal recycler.
Pros:Quiet, Price, High Quality, I'd Buy It Again
Michael Recommends This Franklin Electric Product
Michael's Experience With Water Pumps Direct
Web Site
5/5
Service
5/5
Shipping
5/5
"I had excellent help with making the correct selection for my application before the purchase and I had excellent help from technical support making the correct installation after it arrived. Awesome."
Water Pumps Direct Exactly Did What They Agreed To Do
I saved a 1/3 on the price versus local suppliers here in Dallas, plus no sales tax and shipping included. I installed the pump to pull water out of the lake for my sprinkler system within 24 hours and it works great. I thank you and my grass thanks you.
William Recommends This Franklin Electric Product
William's Experience With Water Pumps Direct
Web Site
4/5
Service
5/5
Shipping
5/5
"Doing what you say you will do is the glue that bonds relationships - Water Pumps Direct did that."
Shop for the Franklin Electric Turf Boss 120 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump at Water Pumps Direct. Research Franklin Electric electric sprinkler water pumps online. Find Franklin Electric 92980030 electric sprinkler water pumps & Franklin 3 HP Sprinkler features and specifications. Get the best deal; compare Franklin Electric FTB3CI prices now. Buy the 92980030 direct and save.
