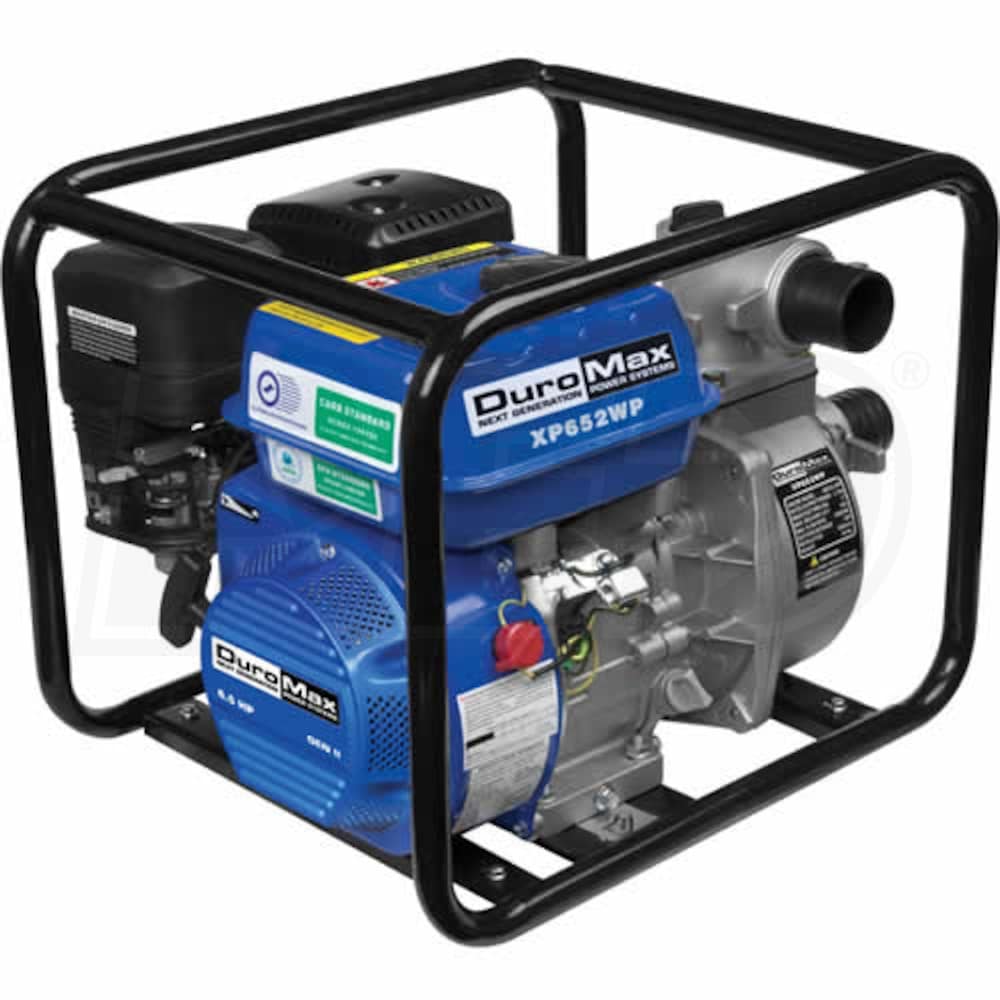

DuroMax XP652WP - 158 GPM (2") Water Pump

DuroMax XP652WP - 158 GPM (2") Water Pump
Model: XP652WP
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Model:
XP650WP
$249.99
Product Discontinued
Discontinued

(as of 06:07 CST - Details) Sales Tax Extra $202.51Visit Site
Sales Tax Extra $178.39Visit Site
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 20
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
2"
Style
Dewatering Pumps
GPM
158
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
158 Gallons
Engine
PowerMax
Features
Features
  • 6.5-HP OHV Four Stroke Engine
  • Easily drain any pool, basement or trench
  • Uses regular gasoline, no need for messy mixing
  • C.A.R.B. Compliant And EPA Approved
  • Meets even strict California emissions standards
  • Automatic Low Oil Shutoff
  • Prolongs engine life
  • Compact And Lightweight
  • Easy to transport and set up at home or on the job site
  • Move Clear Or Dirty Water Quickly And Effectively
  • Handles 9,500 Gallons per hour
  • 2" inlet and outlet
  • Cast Iron Cylinder Sleeve And Impeller
  • Built tough for a long service life
  • Back Flow Check Valve
  • Keeps dirty water out of the area you just cleared
  • Includes:
  • Intake strainer, threaded hose end connectors,
  • Hose clamps, and tool kit with spark plug wrench
Specifications
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Pump Housing Drain
No
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
91 Feet
Submersible
No
Engine
Engine Brand
PowerMax
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6.5 hp
Fuel Tank Size
1 Gallon
Consumer Engine Warranty
1 Year
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose
No
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
20 Inches
Product Width
16.5 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
UPC
891784001136

Inlet Size
2"
Style
Dewatering Pumps
GPM
158
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
158 Gallons
Engine
PowerMax
Features
Features
  • 6.5-HP OHV Four Stroke Engine
  • Easily drain any pool, basement or trench
  • Uses regular gasoline, no need for messy mixing
  • C.A.R.B. Compliant And EPA Approved
  • Meets even strict California emissions standards
  • Automatic Low Oil Shutoff
  • Prolongs engine life
  • Compact And Lightweight
  • Easy to transport and set up at home or on the job site
  • Move Clear Or Dirty Water Quickly And Effectively
  • Handles 9,500 Gallons per hour
  • 2" inlet and outlet
  • Cast Iron Cylinder Sleeve And Impeller
  • Built tough for a long service life
  • Back Flow Check Valve
  • Keeps dirty water out of the area you just cleared
  • Includes:
  • Intake strainer, threaded hose end connectors,
  • Hose clamps, and tool kit with spark plug wrench
Specifications
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Pump Housing Drain
No
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
91 Feet
Submersible
No
Engine
Engine Brand
PowerMax
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6.5 hp
Fuel Tank Size
1 Gallon
Consumer Engine Warranty
1 Year
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose
No
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
20 Inches
Product Width
16.5 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
UPC
891784001136
Product Specs
+−
Specifications
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Pump Head Material
Aluminum
Pump Housing Drain
No
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
91 Feet
Submersible
No
Engine
Engine Brand
PowerMax
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6.5 hp
Fuel Tank Size
1 Gallon
Consumer Engine Warranty
1 Year
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose
No
Hose Couplings
Yes
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
66 Pounds
Product Length
20 Inches
Product Width
16.5 Inches
Product Height
18 Inches
Consumer Warranty
1 Year
UPC
891784001136
Reviews
4.1 out of 54.1 out of 54.1 out of 54.1 out of 54.1 out of 5
(20)
+−
DuroMax XP652WP Reviews & Ratings
82% of Reviewers Recommend This Product
Product Q&A
(2)
+−
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+−
Are the default fittings for the inlet and outlet of this pump NPT/camlock?
Austin
from South Carolina
July 14, 2017
Answer
Hello Austin. The DuroMax XP652WP has 2" male NPT threaded fittings on both the suction and discharge ports. If you have any other questions about this or other products from our website, don't hesitate to give us a call. We're here to help.
+−
What pressure does this pump put out? Wondering if I can use solid pvc pipe to pipe a discharge line. I have been using this pump for a year to pump out of a pond and water my dirt bike track. I love it!
Michael R
from Massachusetts
April 24, 2016
Answer
Max pressure that you will get out of this DuroMax 2" XP652WP water pump would be 39 PSI. You can use hose or piping for your suction and discharge. Just make sure that all connections are tight!
If you have any other questions, please let me know.
