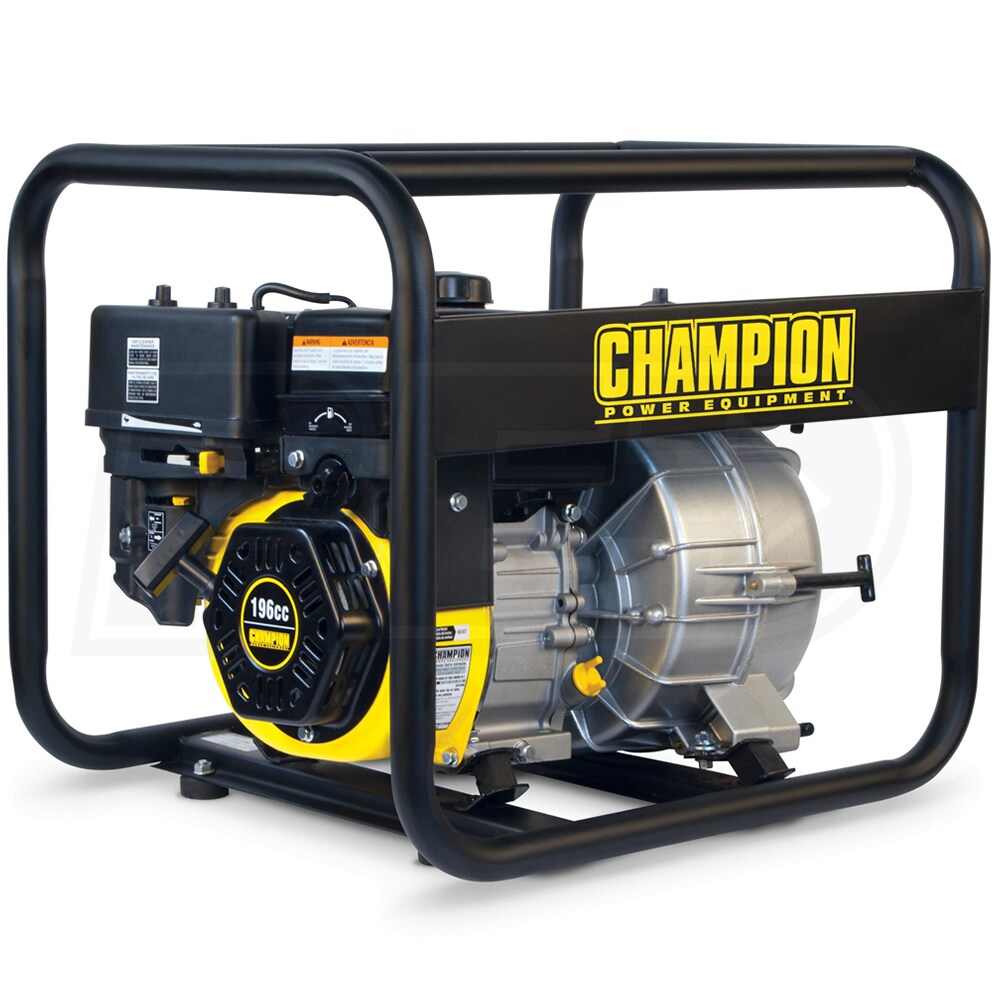

Champion 66525 - 343 GPM (3") Semi-Trash Water Pump
Champion 66525 - 343 GPM (3") Semi-Trash Water Pump
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style
GPM
343
Gallons
Engine
Inlet Size
3"
Style
Semi-Trash
GPM
343 Gallons
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 3" Semi-Trash Pump
- Able to pass solids up to 3/4" diameter
- 196cc OHV Champion Engine w/ Recoil Start
- Provides plenty of power to get the water moving
- Low-Oil Shutdown
- Provides added protection to extend the life of the pump
- Aluminum Pump Housing w/ Cast Iron Volute & Impeller
- Minimizes overall weight without compromising durability
- Self-Priming Design
- Requires initial priming to operate
- Silicon Carbide Shaft Seals
- Abrasion-resistant designed for extended wear
- Full Tubular Wrap-Around Frame
- Heavy-duty steel frame protects the pump/motor on all sides
- 1-Year Parts & Labor Warranty
Specifications
Pump
Gallons Per Minute
343 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
26 Feet
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
0.9 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
No
Overview
Weight
85 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
20 Inches
UPC
896682000106
Inlet Size
3"
Style
GPM
343
Gallons
Engine
Inlet Size
3"
Style
Semi-Trash
GPM
343 Gallons
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 3" Semi-Trash Pump
- Able to pass solids up to 3/4" diameter
- 196cc OHV Champion Engine w/ Recoil Start
- Provides plenty of power to get the water moving
- Low-Oil Shutdown
- Provides added protection to extend the life of the pump
- Aluminum Pump Housing w/ Cast Iron Volute & Impeller
- Minimizes overall weight without compromising durability
- Self-Priming Design
- Requires initial priming to operate
- Silicon Carbide Shaft Seals
- Abrasion-resistant designed for extended wear
- Full Tubular Wrap-Around Frame
- Heavy-duty steel frame protects the pump/motor on all sides
- 1-Year Parts & Labor Warranty
Specifications
Pump
Gallons Per Minute
343 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
26 Feet
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
0.9 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
No
Overview
Weight
85 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
20 Inches
UPC
896682000106
Product Specs
+−
Specifications
Pump
Gallons Per Minute
343 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
26 Feet
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
0.9 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
No
Overview
Weight
85 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
20 Inches
UPC
896682000106
