Features
Inlet Size
N/A
Style
Utility
GPM
12.3 Gallons
- Bur-Cam 1/6 HP Automatic Utility Pump
- Designed for a wide variety of dewatering applications
- Great for basement floors, pools, flat roofs and window wells
- Electronic Float Switch*
- Activates when water level reaches 1-3/4"
- Float switch descends and reaches low water level shut off
- Motor runs for an additional 30 seconds to complete drainage
- Non-Corrosive Pump Body & Stainless Steel Mechanical Rotary Seal
- Engineered for long life in submersible applications
- 1/6 HP, Water-Cooled Electric Motor
- Energy-efficient design, only draws .08-Amps during operation
- Thermal & Overload Protection
- Provides added safety and extends the life of the pump
- Garden Hose Discharge Thread w/ 3/4" Adapter Barb
- Allows for easy connection to discharge hoses
- Lightweight Design
- Combined with a built-in carry handle makes this pump easy to move
- 9-Foot Power Cord
- Makes this pump easy to use around the home and yard
- *Please See Manual & Spec Sheet For Additional Information
- 2-Year Limited Warranty
Specifications
300506S
General Information
Product Category
Water Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
0.8
Power Cord Length
9 Feet
Starting Amps
1.6
Pump
Gallons Per Minute
12.3 Gallons
Outlet Diameter
3/4 Inch
Mechanical Seal Material
Stainless Steel
Housing Material
Thermoplastic
Handles Solids
No
Total Head Lift
15 Feet
Float Type
Internal Switch
GPH @ 0 feet
740
GPH @ 5 feet
740
GPH @ 10 feet
500
GPH @ 15 feet
100
Float On
1-3/4"
Submersible
Yes
Engine
Horsepower
0.16 hp
Overview
Product Category
Water Pump
Weight
9 Pounds
Consumer Warranty
2 Years
Product Width
6.75 Inches
Product Height
10 Inches
UPC
772910035068
Accessories
Transport Handle
Yes
Reviews
(2)
Burcam 300506S Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

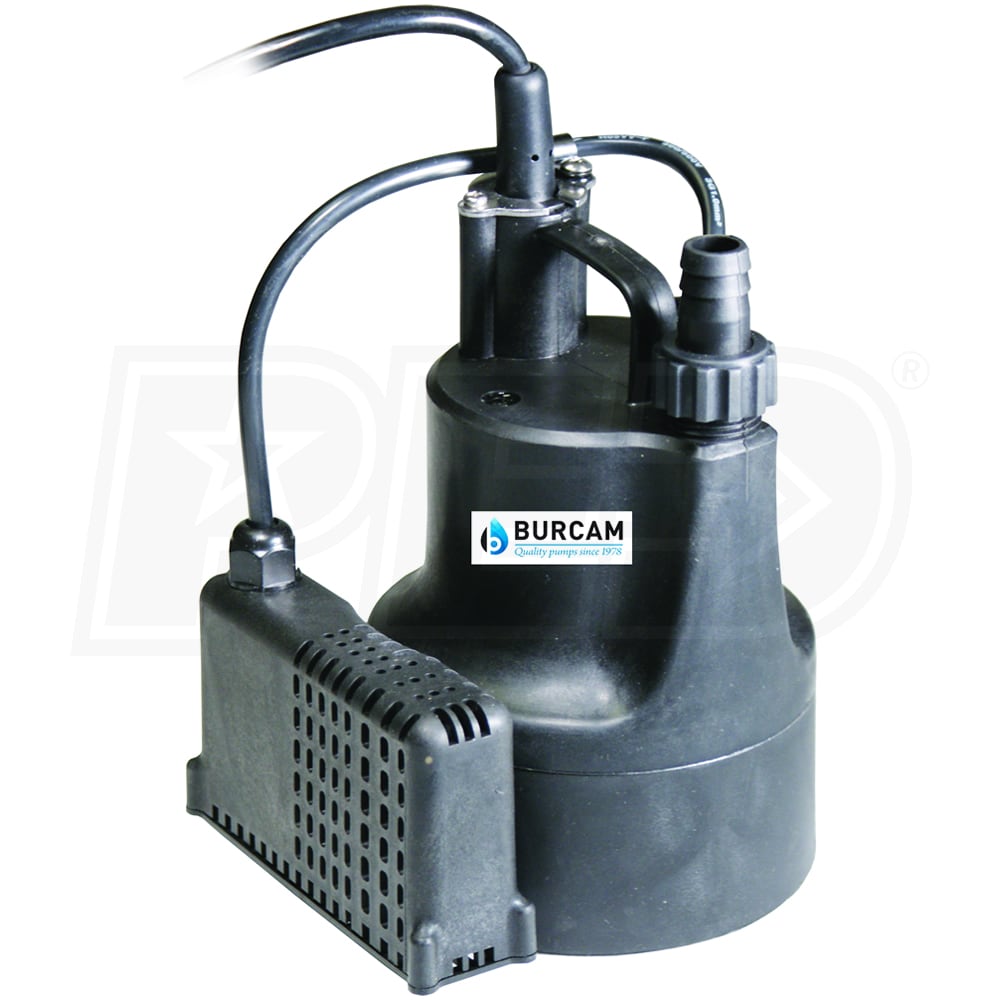

Burcam Pumps 300506S - 12.3 GPM 1/6 HP Automatic Utility Pump
