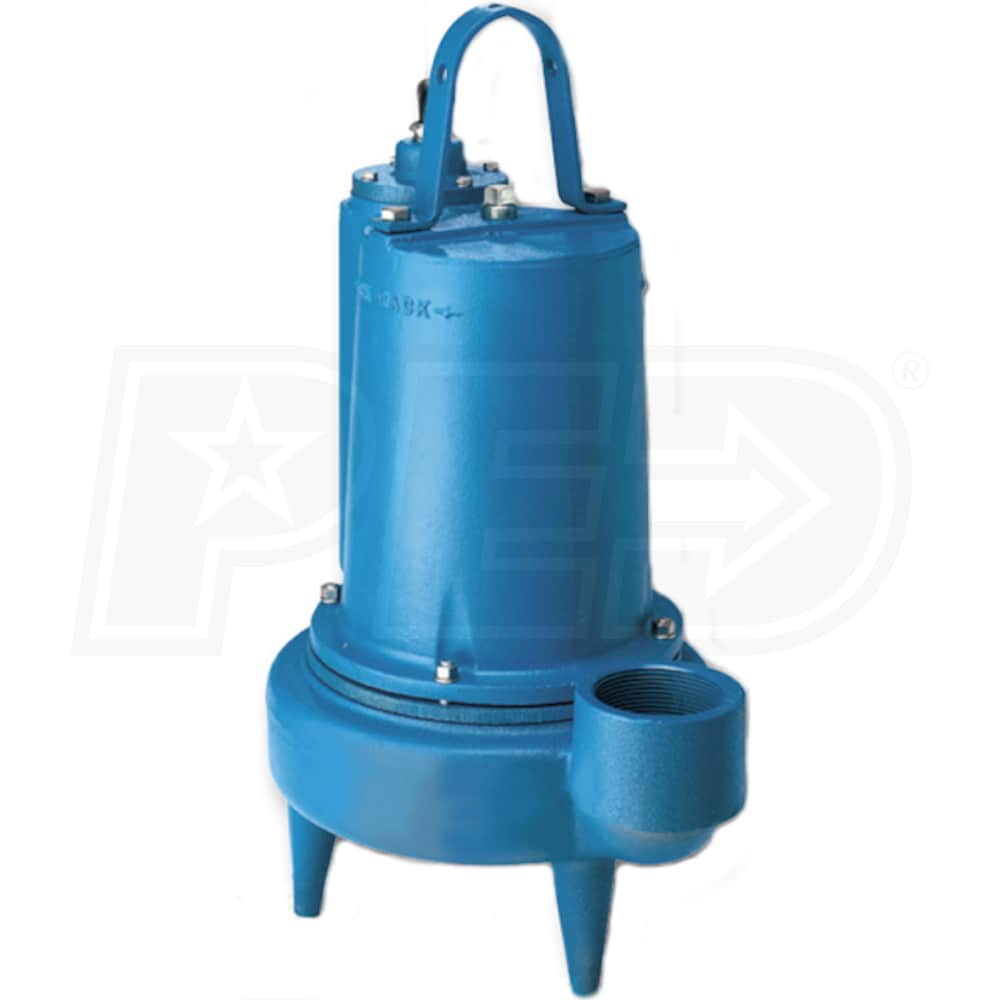

Barnes 3SF2024HD - 2 HP Submersible Fountain Pump (230V)

Model:

110953

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes 3SF2024HD - 2 HP Submersible Fountain Pump (230V)
Barnes 3SF2024HD - 2 HP Submersible Fountain Pump (230V)
Model: 110953
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Fountain

GPM

315 Gallons

  • Barnes 3SF2024HD - 3SF-L Series 2 HP Submersible Fountain Pump (230V)
  • Heavy-duty design for high-volume water features
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in aquatic conditions
  • 2 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor (230V)
  • Thermally protected, energy-efficient design, only draws 14.5 FLA
  • Cast Iron Vortex Impeller
  • Dynamically balanced design, provides up to a 52' head lift
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 3" NPT (Female) Discharge
  • Allows this pump to provide up to 315 GPM of output
  • 25-Foot, 10/3 SO Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

110953
specs product image PID-80855
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
14.5
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
29
Pump
Gallons Per Minute
315 Gallons
Outlet Diameter
3 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Total Head Lift
52 Feet
Submersible
Yes
Engine
Horsepower
2 hp
Overview
Weight
190 Pounds
Consumer Warranty
2 Years
Product Length
16.72 Inches
Product Width
12.63 Inches
Product Height
26.05 Inches
