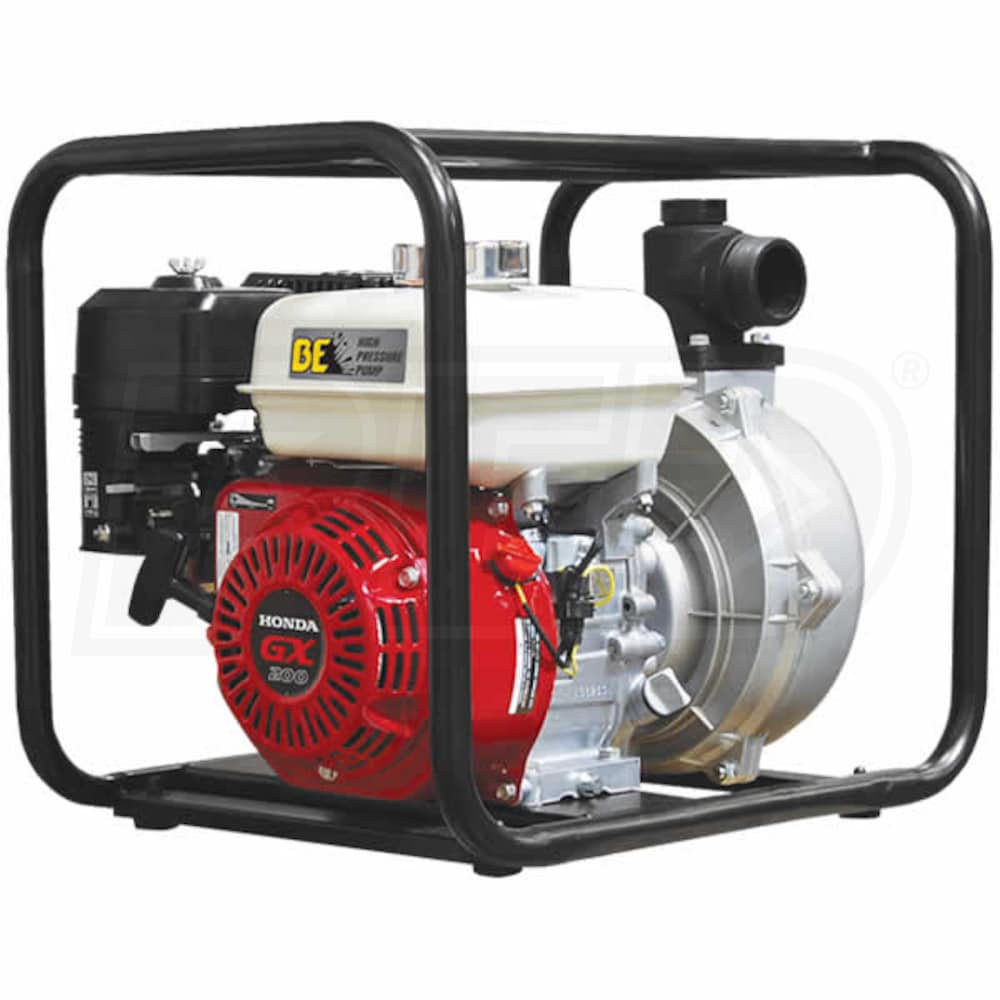

BE HP-2065HR - 126 GPM (2") High Pressure Water Pump w/ Honda GX Engine
Model: HP-2065HR
+
Share This Product
-
Product Description
-
10Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
126
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
126 Gallons
Engine
Honda GX
Features
Features
- 2" High-Pressure Water Pump
- Designed for moving water over extended distances or heights
- Great for firefighting applications
- Commercial Grade Honda GX200 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Aluminum Pump Housing & Impeller
- Extends the life of the pump
- Self-Priming Design
- Requires initial priming to operate
- Includes:
- Strainer & Clamps
- Excellent Consumer Warranty
- 1-Year Pump and 3-Year Honda GX Engine
- EPA Approved & CARB Compliant
Specifications
Pump
Gallons Per Minute
126 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
85
Total Head Lift
197 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
196 cc
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Strainer
Yes
Hose Bands
Yes
Overview
Weight
65 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
16 Inches
Product Height
17 Inches
Inlet Size
2"
Style
GPM
126
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
126 Gallons
Engine
Honda GX
Features
Features
- 2" High-Pressure Water Pump
- Designed for moving water over extended distances or heights
- Great for firefighting applications
- Commercial Grade Honda GX200 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Aluminum Pump Housing & Impeller
- Extends the life of the pump
- Self-Priming Design
- Requires initial priming to operate
- Includes:
- Strainer & Clamps
- Excellent Consumer Warranty
- 1-Year Pump and 3-Year Honda GX Engine
- EPA Approved & CARB Compliant
Specifications
Pump
Gallons Per Minute
126 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
85
Total Head Lift
197 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
196 cc
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Strainer
Yes
Hose Bands
Yes
Overview
Weight
65 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
16 Inches
Product Height
17 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
126 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
85
Total Head Lift
197 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
196 cc
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Strainer
Yes
Hose Bands
Yes
Overview
Weight
65 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
16 Inches
Product Height
17 Inches
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
How long can 1 full gas tank last for the BE-HP2065HR?
Man H.
from California
July 02, 2019
Answer
That is a very difficult question to answer, as it really has to do with how hard or easy you are working the pump. Just like driving a car, you can get "good or bad gas mileage." The higher and further you are pumping, the worse "mileage" you will get. On average, however, you should see a good 60-90 minutes of runtime.
Was this answer helpful?
Yes
0
No
0
+−
Hi Jim Is it okay to have the input 2 inch in and reduce the output to a 1 1/2? that would probably increase the PSI a little bit more too, right? or do I have to match both input and output with the same size hose? Thank you.
Marc D
from Minnesota
January 22, 2014
Answer
It is always recommended that you use the same diameter hose/piping as the suction and discharge ports on the pump. While it is sometimes necessary to reduce that diameter, it is NOT recommended that you do so by more than one size. In this case, 1-1/2" hose or piping would be the maximum reduction, While you may see an increased pressure due to the reduced piping, the pump will also see an increased backpressure on the pump. The more you reduce the hose/piping diameter, the more you increase this backpressure AND increase premature pump failure that would NOT be covered under warranty.
Was this answer helpful?
Yes
4
No
0
