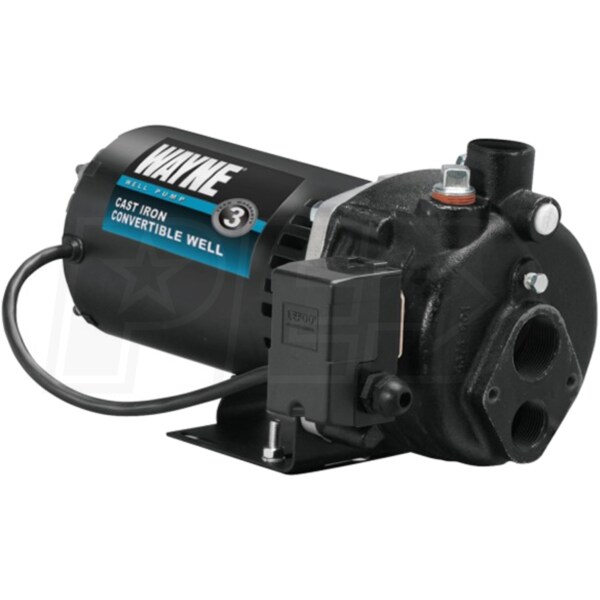

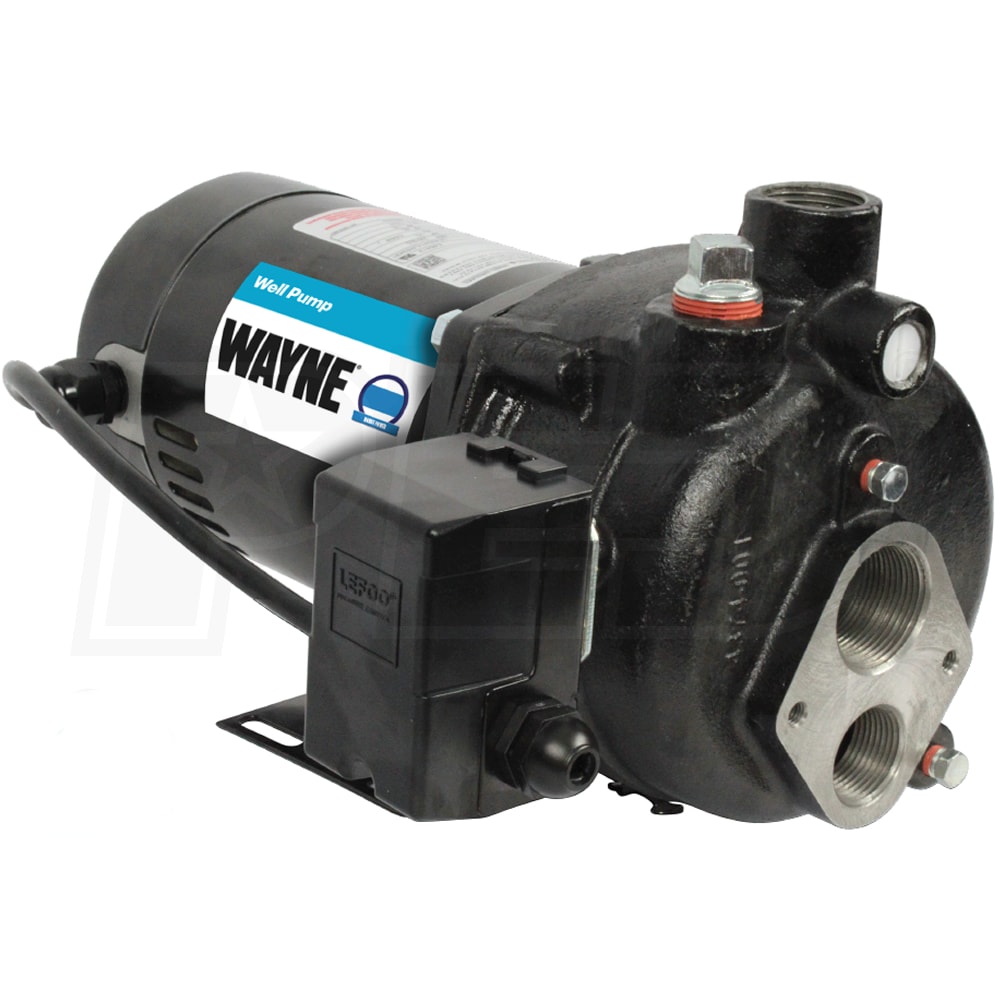

Wayne CWS75 - 3/4 HP Cast Iron Convertible Well Jet Pump

Model:

CWS75

Write a Review
$255.00
Free Shipping
  Learn More About Free Freight
Only 5 In-Stock
Ships Monday, May 10th
Shipping to60601

Wayne CWS75 - 3/4 HP Cast Iron Convertible Well Jet Pump
Wayne CWS75 - 3/4 HP Cast Iron Convertible Well Jet Pump
Model: CWS75
$255.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1-1/4"

Style

Convertible Jet

GPM

15.8 Gallons

  • Wayne Cast Iron Convertible Well Jet Pump*
  • Assembled in the US with foreign and domestic parts
  • *Requires Jet Assembly For Operation
  • Designed For Wells 0' - 90' In Depth
  • Pumps up to 330 GPH @ 10' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 3/4 HP Dual Voltage Motor (120/240V)**
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • **No Power Cord Included
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

CWS75
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
15.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066105950

Reviews

(11)
Wayne CWS75 Reviews & Ratings

Product Q&A

(3)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
Can this pump be used with a 40 - 60 pressure switch?
John H
from Virginia
March 23, 2016
Answer
Thank you for your interest in Water Pumps Direct, John! The Wayne CWS75 3/4HP pump does include a 30/50 pressure switch, but you could change it out with a 40/60 switch if you prefer. Please note that you would be responsible for this replacement.
If you have any other questions, please let me know.
Was this answer helpful?
Yes
0
No
0
Question
+
We have to find a well pump asap. Flotec 1HP is what we have to replace. Will the Wayne 3/4 hp or Simer pump be interchangeable or should we stay with the Flotec ?
Debi Sue
from Florida
July 30, 2014
Answer
You may find that you have to make some slight modifications but should be pretty close to the same fittings and size. I would highly suggest matching the horsepower of your old pump and getting the 1HP.1 HP Wayne Convertible Well Jet Pump
Was this answer helpful?
Yes
0
No
0
Question
+
Hey Jim, I have a old windmill that I pulled the rusted pump out to find out how deep it was. Total depth is 32ft. You can see water about 10-15ft down. I had used a small 12volt sub pump and retrieved over 100gal. I don't have elect. except for a 1000watt inverter or 12volt. The little pump didn't last. Can you suggest a pump that I can use that is more dependable? We are in the desert area of W. Texas near Terlingua. Also we don't go out very often so I would need to pull the pipe back out to take the pump back home. Thanks, Russell
Russell Bell
from Texas
April 01, 2011
Answer
You do not mention what you are using the water for. If it's for anything but drinking, the only possibility would be some of our 2" trash pumps. They have a maximum suction of 26 feet, so while you may not get to the bottom, you will reach the water.
Was this answer helpful?
Yes
0
No
0

Recommended Accessories

Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

How-To Articles

How to Pick the Perfect Well Pump
The days of using a bucket and rope to retrieve water from a well are long gone...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water.   But there are s...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Wayne CWS75 - 3/4 HP Cast Iron Convertible Well Jet Pump
Wayne CWS75
+
Reset View
Wayne CWS75
Wayne CWS75
Wayne CWS75

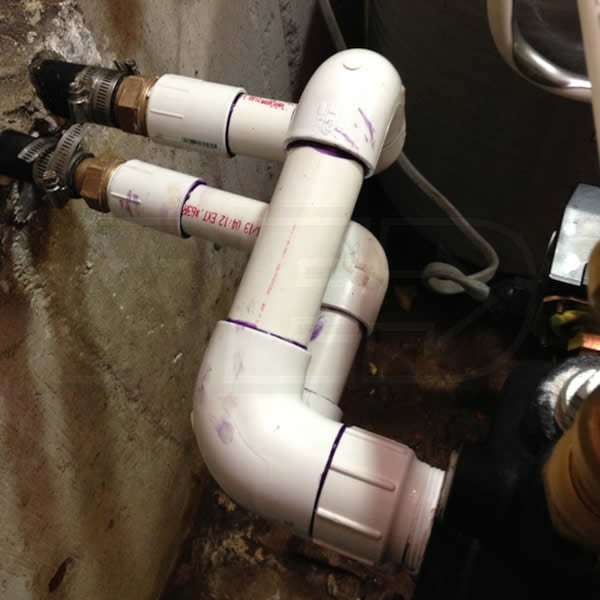

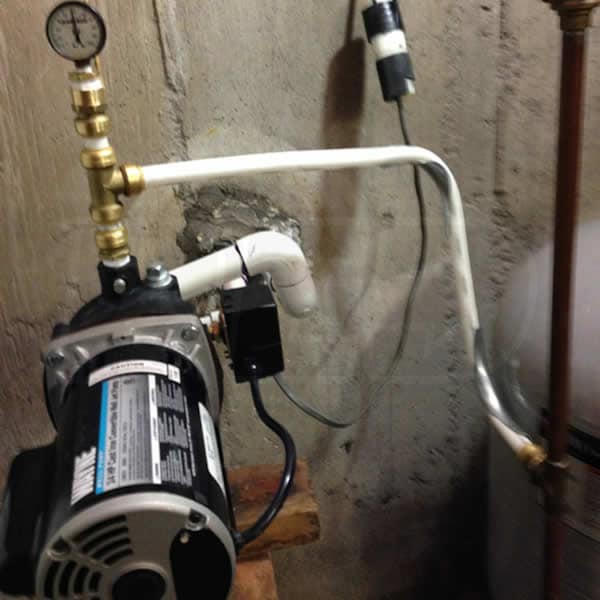

Customer Review Images
