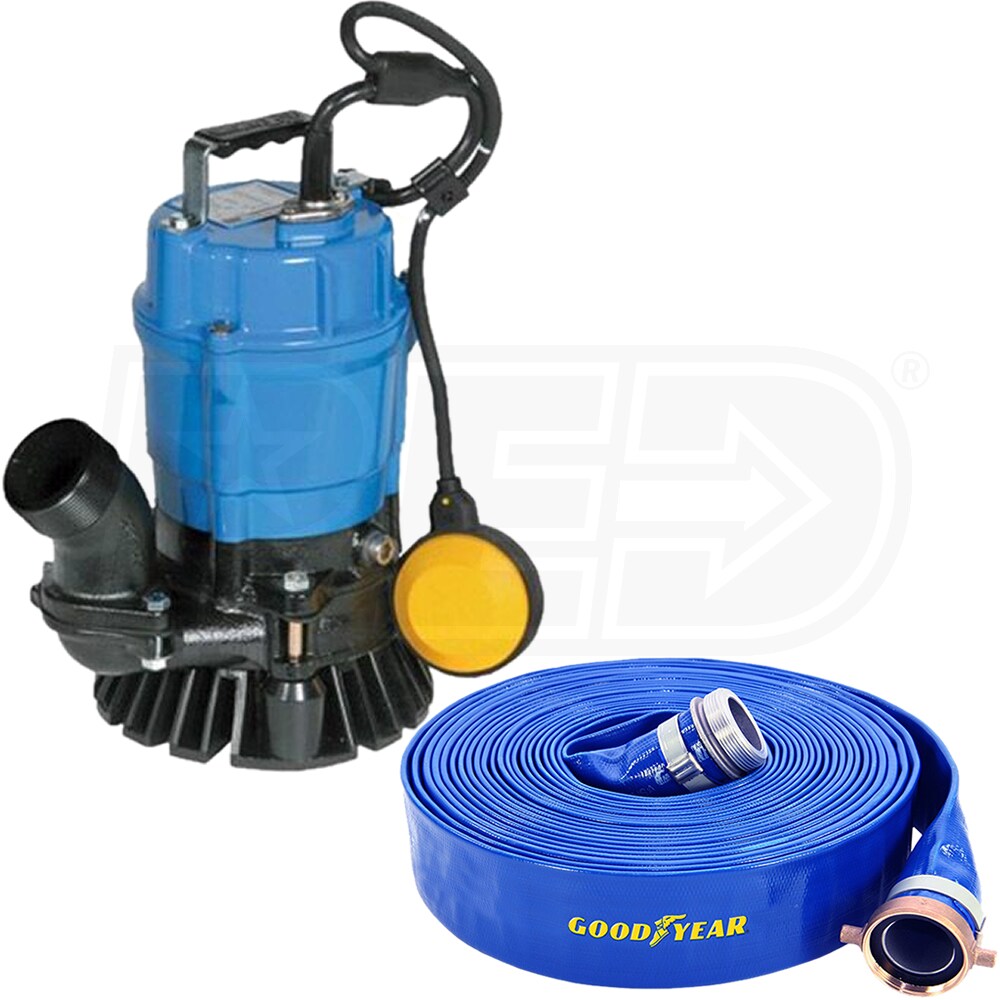

Tsurumi HSZ2.4S-62 - 53 GPM (2") Submersible Trash Pump w/ Float Switch & 25' Discharge Hose
Model: WPD-HSZ2.4S-62-DH25
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$331.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 5 In-Stock
Ships Wednesday, Jan 20th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
N/A
Style
Trash Pumps
GPM
53
Gallons
Inlet Size
N/A
Style
Trash
GPM
53 Gallons
Features
Features
  • Submersible Trash Pump w/ Float Switch
  • Easily handles sand, debris, and solids up to 1/4"
  • 1/2-HP 5.4-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
  • Continuous duty rated, capable of pumping up to 3180 GPH
  • Grey Iron Casting Case
  • Lightweight & durable design resists corrosion
  • Built-In Shaft Mounted Agitator
  • Suspends solids to provide minimal wear and clogging
  • Urethane Semi-Vortex Impeller
  • Designed for maximum durability and performance
  • Double Inside Mechanical Seal w/ Silicon Faces
  • Provides the longest operational life of any seal available
  • Oil Lifter
  • Provides lubrication of the seal faces
  • V-Ring Seal Design
  • Protects mechanical seal from abrasive particles
  • 45° Angled Discharge Connector
  • Provides a more stable installation for discharge hoses
  • 20' Heavy-Duty Cord
  • 2-Year Limited Warranty
  • Includes:
  • Abbott 2" x 25' Blue PVC Lay Flat Discharge Hose (M&F NPSH)
    • Product Includes
    • (1) Tsurumi HSZ2.4S-62 - 53 GPM (2") Submersible Trash Pump w/ Float Switch (HSZ2.4S-62)
    • (1) Abbott Rubber 2" x 25' Blue PVC Lay Flat Discharge Hose (M&F NPSH) (1148-2000-25-NPSH)
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Hose
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
HSZ2.4S Specifications+
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
1148-2000-25-NPSH Specifications+
Pump
Inlet Diameter
2"
Outlet Diameter
2"
Accessories
Hose Couplings
Yes
Overview
Weight
5.3 Pounds
Product Length
300 Inches
Product Width
2 Inches

Inlet Size
N/A
Style
Trash Pumps
GPM
53
Gallons
Inlet Size
N/A
Style
Trash
GPM
53 Gallons
Features
Features
  • Submersible Trash Pump w/ Float Switch
  • Easily handles sand, debris, and solids up to 1/4"
  • 1/2-HP 5.4-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
  • Continuous duty rated, capable of pumping up to 3180 GPH
  • Grey Iron Casting Case
  • Lightweight & durable design resists corrosion
  • Built-In Shaft Mounted Agitator
  • Suspends solids to provide minimal wear and clogging
  • Urethane Semi-Vortex Impeller
  • Designed for maximum durability and performance
  • Double Inside Mechanical Seal w/ Silicon Faces
  • Provides the longest operational life of any seal available
  • Oil Lifter
  • Provides lubrication of the seal faces
  • V-Ring Seal Design
  • Protects mechanical seal from abrasive particles
  • 45° Angled Discharge Connector
  • Provides a more stable installation for discharge hoses
  • 20' Heavy-Duty Cord
  • 2-Year Limited Warranty
  • Includes:
  • Abbott 2" x 25' Blue PVC Lay Flat Discharge Hose (M&F NPSH)
    • Product Includes
    • (1) Tsurumi HSZ2.4S-62 - 53 GPM (2") Submersible Trash Pump w/ Float Switch (HSZ2.4S-62)
    • (1) Abbott Rubber 2" x 25' Blue PVC Lay Flat Discharge Hose (M&F NPSH) (1148-2000-25-NPSH)
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Hose
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
HSZ2.4S Specifications+
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
1148-2000-25-NPSH Specifications+
Pump
Inlet Diameter
2"
Outlet Diameter
2"
Accessories
Hose Couplings
Yes
Overview
Weight
5.3 Pounds
Product Length
300 Inches
Product Width
2 Inches
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Hose
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
HSZ2.4S Specifications+
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
1148-2000-25-NPSH Specifications+
Pump
Inlet Diameter
2"
Outlet Diameter
2"
Accessories
Hose Couplings
Yes
Overview
Weight
5.3 Pounds
Product Length
300 Inches
Product Width
2 Inches
