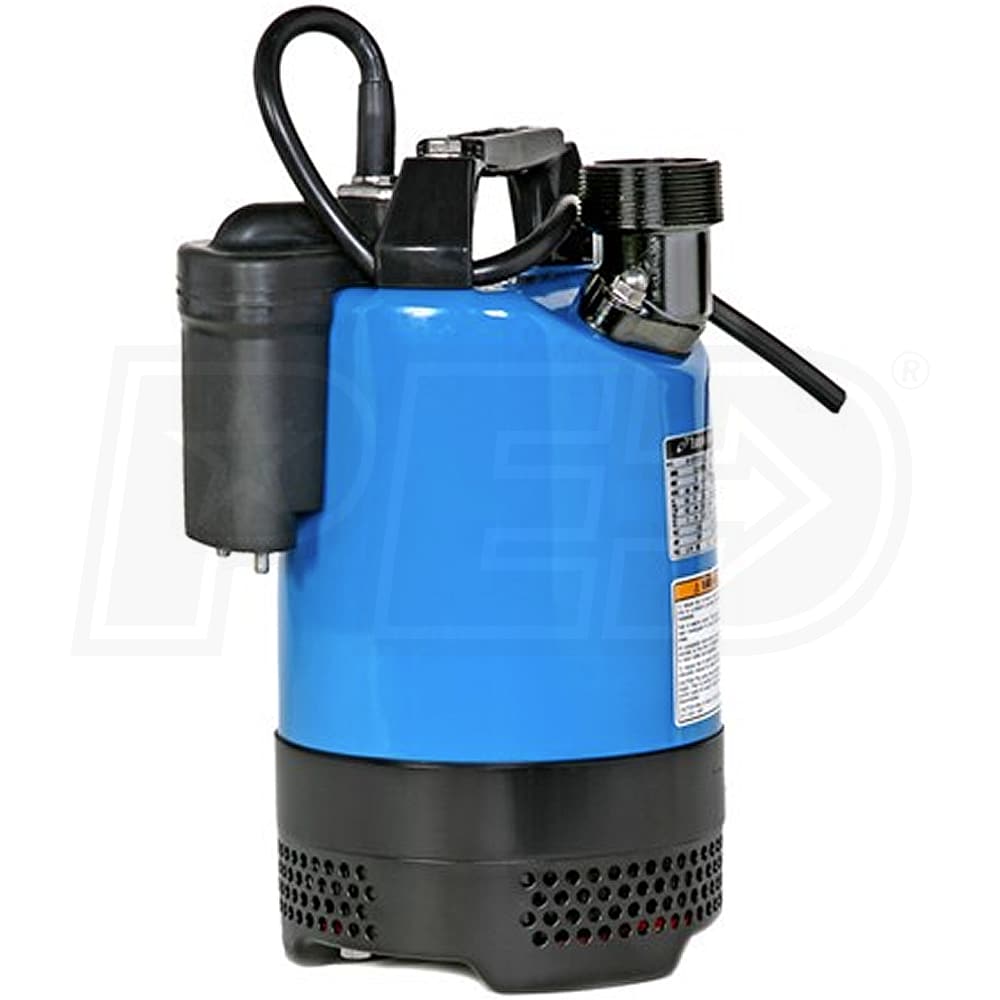

Tsurumi LB-800A - 82 GPM (2") Automatic Submersible Utility Pump
Model:
LB-800A
Number of Reviews
(0)
Write A Review
Ask a Question
$830.00
Free Shipping
×
Free Shipping
*This product qualifies for
Free Shipping
anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Monday, Mar 27th
Shipping to
60601
Update Shipping Details
Shipping Details
ZIP Code
Update
Free to Lower 48 States
Standard Rates to
Alaska
,
Hawaii
Expedited Shipping Available - Shipping rates calculated at Checkout.

Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
+
Available Add-Ons
Local Pickup
# In-Stock
Out of Stock at
Pick Up Location Name
# mi
Pick Up Address
5 Available Nearby
# mi
Change Pickup Location
Learn More About Local Pickup
Ship To Me
Tsurumi LB-800A - 82 GPM (2") Automatic Submersible Utility Pump
Model: LB-800A
Number of Reviews
(0)
Ask a Question
$830.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Inlet Size
N/A
Style
Utility
GPM
82 Gallons
Slimline Submersible Automatic Utility Pump w/ 2" Discharge
Allows pump to operate in spaces 8-3/4" diameter or larger
Molded Resin, Rubber Protected EL-1 Relay (Req. 6.75" - On)
No control panel/float, electrodes detect water to start pump
Internal timer eliminates frequent on/off in rough conditions
1-HP 9.6-Amp Motor (22.1-Amp Starting) w/ Thermal Protection
Continuous duty rated, capable of pumping up to 4920 GPH
Top Discharge Provides Maximum Motor Cooling Efficiency
Provides max motor cooling efficiency & extended dry run time
Urethane Semi-Vortex Impeller & Wear Plates
Designed for maximum durability & pump performance
Double Inside Mechanical Seal w/ Silicon Faces
Provides the longest operational life of any seal available
Oil Lifter
Provides lubrication of the seal faces
V-Ring Seal Design
Protects mechanical seal from abrasive particles
50' Power Cord
Great for outdoor applications
2-Year Limited Warranty
California residents see
Prop 65 WARNINGS
Show All Features
×
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
LB-800A
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
9.6
Power Cord Length
50 Feet
Pump
Gallons Per Minute
82 Gallons
Outlet Diameter
2 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
59 Feet
Float Type
Electronic
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 hp
Overview
Product Category
Water Pump
Weight
36 Pounds
Consumer Warranty
2 Years
Product Width
8.75 Inches
Product Height
13.4375 Inches
Additional Model Numbers
LB800A, LB-800A
Accessories
Float Switch
Yes
Pressure Switch
Yes
