Product Description
+−
Inlet Size
N/A
Style

GPM
62.4
Gallons
Inlet Size
N/A
Style
Utility
GPM
62.4 Gallons
Features
Features
- Slimline Submersible Utility Pump w/ 2" Discharge
- Allows pump to fit into 8" pipes
- 2/3-HP 6.1-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3744 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 32' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
6.1
Power Cord Length
32 Feet
Pump
Gallons Per Minute
62.4 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39.5 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.66 hp
Overview
Weight
28 Pounds
Consumer Warranty
2 Years
Product Width
7.375 Inches
Product Height
11.25 Inches
UPC
894787000267
Additional Model Numbers
LB480, LB-480
Inlet Size
N/A
Style

GPM
62.4
Gallons
Inlet Size
N/A
Style
Utility
GPM
62.4 Gallons
Features
Features
- Slimline Submersible Utility Pump w/ 2" Discharge
- Allows pump to fit into 8" pipes
- 2/3-HP 6.1-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3744 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 32' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
6.1
Power Cord Length
32 Feet
Pump
Gallons Per Minute
62.4 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39.5 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.66 hp
Overview
Weight
28 Pounds
Consumer Warranty
2 Years
Product Width
7.375 Inches
Product Height
11.25 Inches
UPC
894787000267
Additional Model Numbers
LB480, LB-480
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
6.1
Power Cord Length
32 Feet
Pump
Gallons Per Minute
62.4 Gallons
Outlet Diameter
2"
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39.5 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.66 hp
Overview
Weight
28 Pounds
Consumer Warranty
2 Years
Product Width
7.375 Inches
Product Height
11.25 Inches
UPC
894787000267
Additional Model Numbers
LB480, LB-480
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Can this be left plugged in and in use without running water?
Dennis
from Pennsylvania
April 07, 2017
Answer
That's definitely NOT recommended Dennis, as running it dry will damage the pump and that would NOT be a warrantied failure. If you prefer to have something automatic, you might then consider the LB480A.
Was this answer helpful?
Yes

0
No

0
+−
Would this pump provide enough pressure to run a couple lawn sprinklers 150' away from pond?
Jason
from Illinois
July 04, 2016
Answer
Jason,
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)-
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head-
Piping diameter on your suction and discharge (if already laid)-
Total GPM & PSI requirements-
Once you can provide this information, I'll be happy to assist you further.
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)-
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head-
Piping diameter on your suction and discharge (if already laid)-
Total GPM & PSI requirements-
Once you can provide this information, I'll be happy to assist you further.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

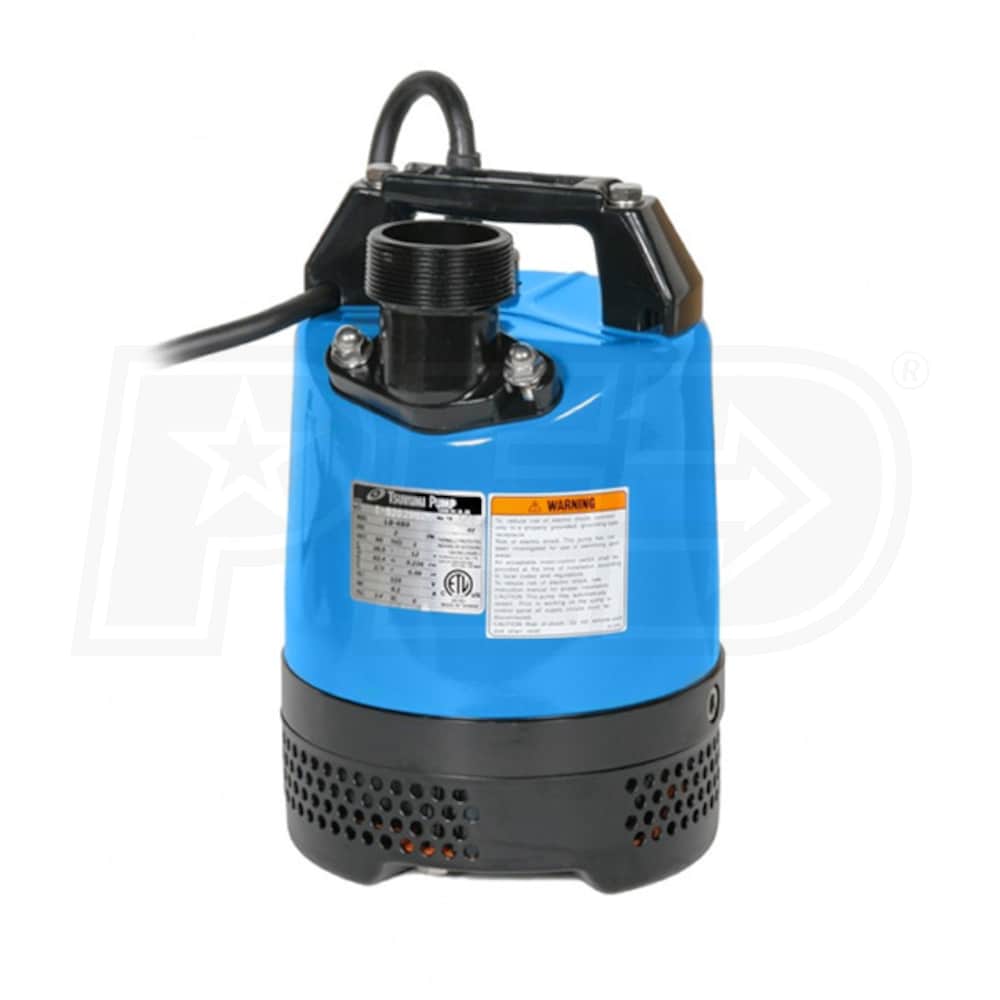

Tsurumi LB-480 - 62.4 GPM (2") Submersible Utility Pump




×
