Features
Inlet Size
N/A
Style
Trash
GPM
60 Gallons
- Submersible Trash Pump
- Easily handles sand, debris, and solids up to 1/4"
- 1-HP 9.6-Amp Motor (26-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3600 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 32' Heavy-Duty Cord
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HS3.75S
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
9.6
Thermal Protection
Yes
Power Cord Length
32 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
60 Gallons
Outlet Diameter
3 Inch
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
62 Feet
Max Head
62 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 hp
Overview
Product Category
Water Pump
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
12..4375 Inches
Product Height
15.25 Inches
UPC
894787000403
Additional Model Numbers
HS3.75S-62, HS3.75S
Reviews
(4)
Tsurumi Pump HS3.75S Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
I need to pump out green sludgy swimming pools.
should I use 0.5HP Tsurumi HS2.4S
or the 1HP Tsurumi HS3.75S
and can I use either a 2 or 3" adapter to discharge through a regular tough garden hose instead of spending $$$ on hoses.
plz help. thank you
sean
Sean
from California
July 04, 2016
How-To Articles
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

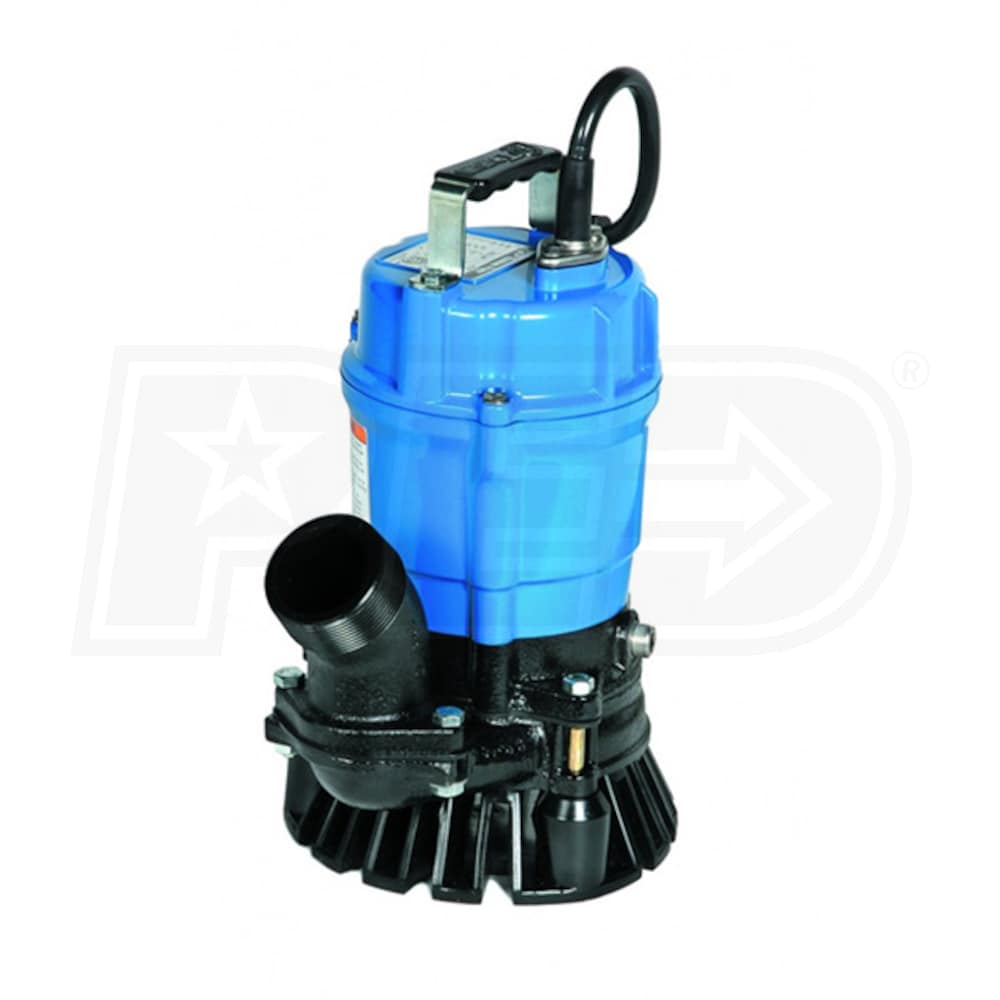

Tsurumi HS3.75S-62- 60 GPM (3") Submersible Trash Pump
