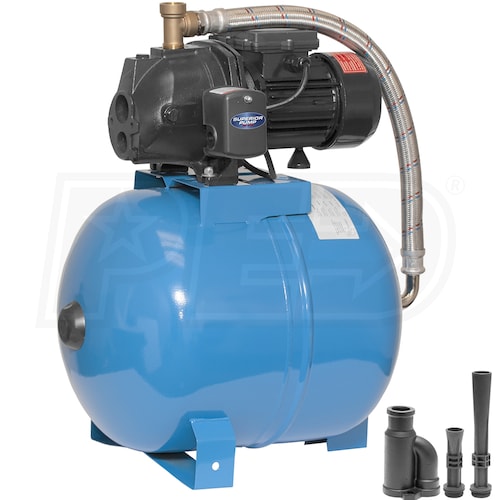

Superior Pump 12.4 GPM 3/4 HP Cast Iron Convertible Jet Pump w/ 13.2-Gallon Tank & Injector Kit
Model: 94713
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
12.4
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
12.4 Gallons
Features
Features
- Superior 3/4 HP Convertible Well Jet Pump System
- For shallow well applications up to 25' depth
- For deep well applications 25' to 90' depths
- Provides up to 12.4 GPM
- Includes Injector Kit
- Provides the flexibility to perform in shallow and deep well applications
- 13.2 Gallon (50L) Pressure Tank
- For efficiency and high performance
- Cast Iron Pump Body & Seal Plate
- Robust design, extends pump life
- 115/230V Dual Voltage 3/4 HP Electric Motor w/ Overload Protection
- Factory set @ 115V for easy installation
- Permanently lubricated ball bearings for smoother operation
- Pre-mounted Pressure Switch (20/40 Factory Preset)
- Fully adjustable design makes it easy to adapt to your current plumbing system
- Allows for a maximum of 61 PSI
- Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
- Corrosion-resistant design provides excellent pump performance
- 1-1/4" FNPT - Intake/Suction & 1" Discharge
- Compatible with most residential plumbing applications
- 1-Year Pump & 3-Year Motor Limited Warranty
- *Please Note - Requires 20-Amp Breaker
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.8/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
12.4 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25-90 Feet
Maximum PSI
61
Submersible
No
Engine
Horsepower
0.75 hp
Consumer Engine Warranty
3 Years
Accessories
Pressure Switch
Yes
Injector Kit
Yes
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
UPC
725113947133
Inlet Size
1-1/4"
Style

GPM
12.4
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
12.4 Gallons
Features
Features
- Superior 3/4 HP Convertible Well Jet Pump System
- For shallow well applications up to 25' depth
- For deep well applications 25' to 90' depths
- Provides up to 12.4 GPM
- Includes Injector Kit
- Provides the flexibility to perform in shallow and deep well applications
- 13.2 Gallon (50L) Pressure Tank
- For efficiency and high performance
- Cast Iron Pump Body & Seal Plate
- Robust design, extends pump life
- 115/230V Dual Voltage 3/4 HP Electric Motor w/ Overload Protection
- Factory set @ 115V for easy installation
- Permanently lubricated ball bearings for smoother operation
- Pre-mounted Pressure Switch (20/40 Factory Preset)
- Fully adjustable design makes it easy to adapt to your current plumbing system
- Allows for a maximum of 61 PSI
- Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
- Corrosion-resistant design provides excellent pump performance
- 1-1/4" FNPT - Intake/Suction & 1" Discharge
- Compatible with most residential plumbing applications
- 1-Year Pump & 3-Year Motor Limited Warranty
- *Please Note - Requires 20-Amp Breaker
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.8/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
12.4 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25-90 Feet
Maximum PSI
61
Submersible
No
Engine
Horsepower
0.75 hp
Consumer Engine Warranty
3 Years
Accessories
Pressure Switch
Yes
Injector Kit
Yes
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
UPC
725113947133
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.8/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
12.4 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25-90 Feet
Maximum PSI
61
Submersible
No
Engine
Horsepower
0.75 hp
Consumer Engine Warranty
3 Years
Accessories
Pressure Switch
Yes
Injector Kit
Yes
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
UPC
725113947133
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

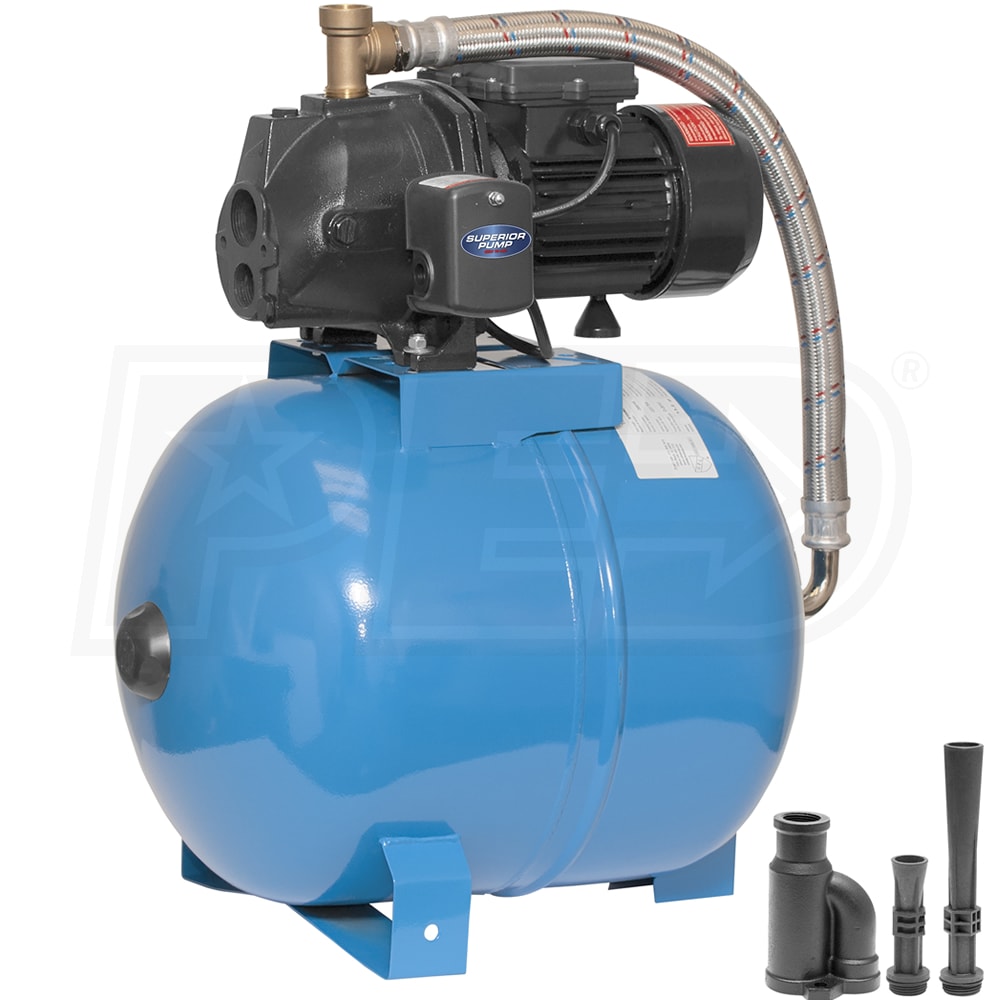

Superior Pump 12.4 GPM 3/4 HP Cast Iron Convertible Jet Pump w/ 13.2-Gallon Tank & Injector Kit








×
