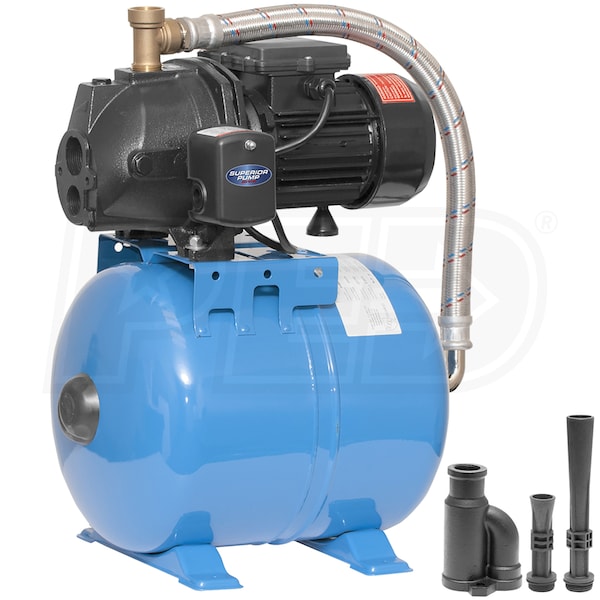

Superior Pump 9.9 GPM 1/2 HP Cast Iron Convertible Jet Pump System w/ 6.3-Gallon Tank & Injector Kit

Model:

94520-0

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Superior Pump 9.9 GPM 1/2 HP Cast Iron Convertible Jet Pump System w/ 6.3-Gallon Tank & Injector Kit
Superior Pump 9.9 GPM 1/2 HP Cast Iron Convertible Jet Pump System w/ 6.3-Gallon Tank & Injector Kit
Model: 94520-0
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Convertible Jet

GPM

9.9 Gallons

  • Superior 1/2 HP Convertible Well Jet Pump System
  • For shallow well applications up to 25' depth
  • For deep well applications 25' to 90' depths
  • Provides up to 9.9 GPM
  • Includes Injector Kit
  • Provides the flexibility to perform in shallow and deep well applications
  • 6.3 Gallon (24L) Pressure Tank
  • For efficiency and high performance
  • Cast Iron Pump Body & Seal Plate
  • Robust design, extends pump life
  • 115/230V Dual Voltage 1/2 HP Electric Motor w/ Overload Protection
  • Factory set @ 115V for easy installation
  • Permanently lubricated ball bearings for smoother operation
  • Pre-mounted Pressure Switch (20/40 Factory Preset)
  • Fully adjustable design makes it easy to adapt to your current plumbing system
  • Allows for a maximum of 58 PSI
  • Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
  • Corrosion-resistant design provides excellent pump performance
  • 1-1/4" FNPT - Intake/Suction & 1" Discharge
  • Compatible with most residential plumbing applications
  • 1-Year Pump & 3-Year Motor Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

94520-0
specs product image PID-75234
Motor
Voltage
120/240 Volt
Running Amps
6.4/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
9.9 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25-90 Feet
Maximum PSI
58
Submersible
No
Engine
Horsepower
0.5 hp
Consumer Engine Warranty
3 Years
Overview
Weight
53 Pounds
Consumer Warranty
1 Year
UPC
725113945207
Accessories
Pressure Switch
Yes
Injector Kit
Yes
