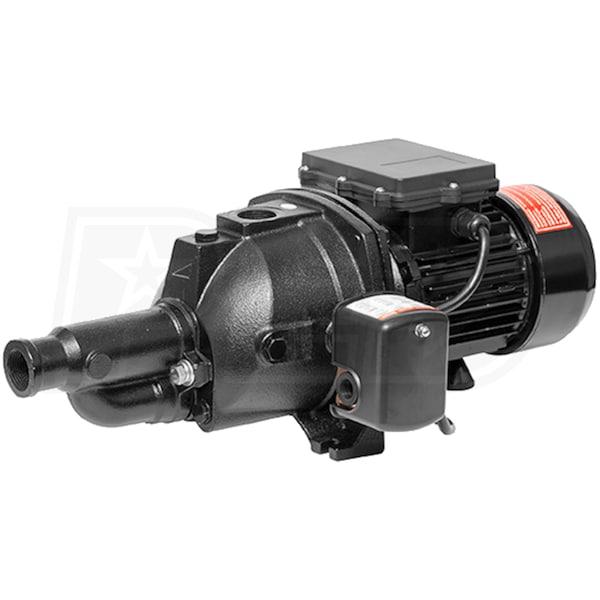

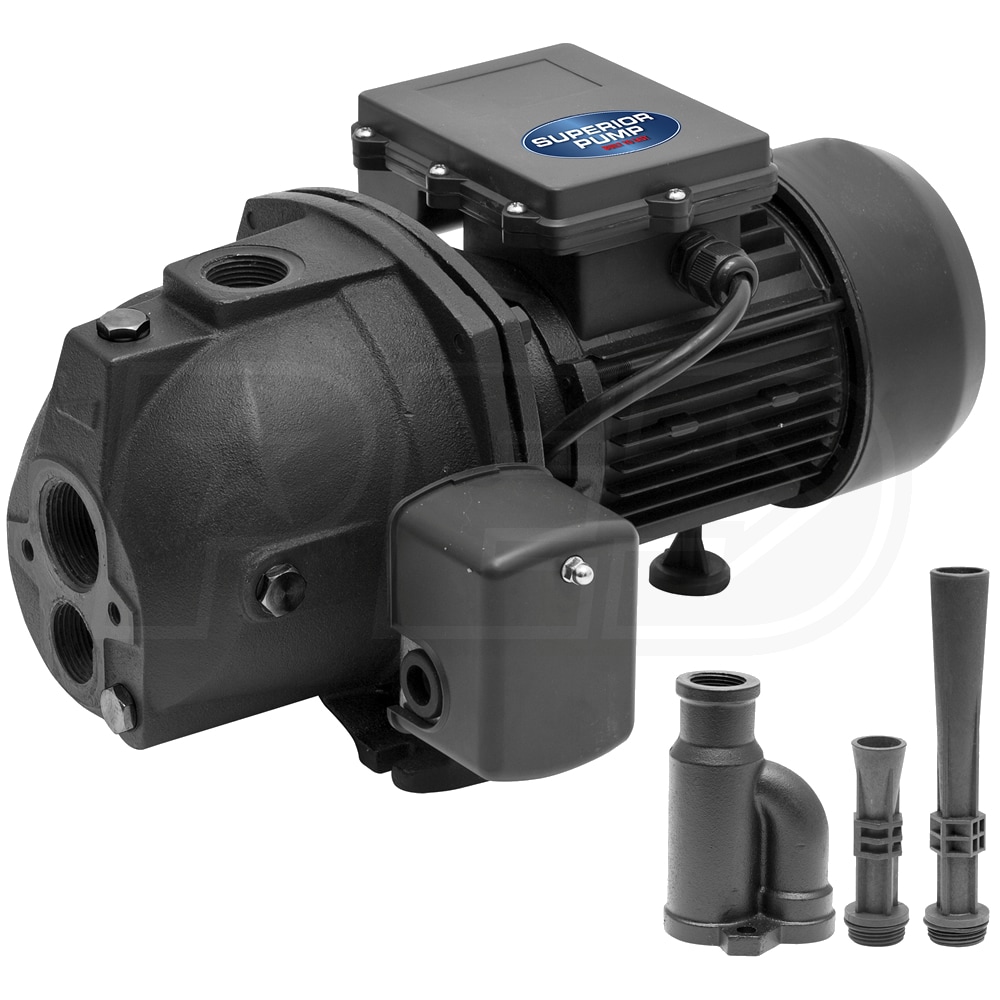

Superior Pump 9.9 GPM 1/2 HP Cast Iron Convertible Jet Pump w/ Injector Kit
Model:
94515
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
9.9 Gallons
- Superior 1/2 HP Convertible Well Jet Pump
- For shallow well applications up to 25' depth
- For deep well applications 25' to 90' depths
- Provides up to 9.9 GPM

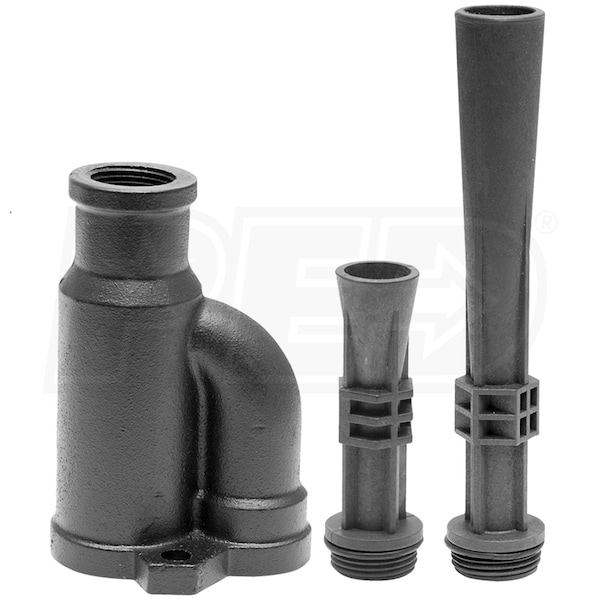

- Includes Injector Kit
- Provides the flexibility to perform in shallow and deep well applications
- Cast Iron Pump Body & Seal Plate
- Robust design, extends pump life

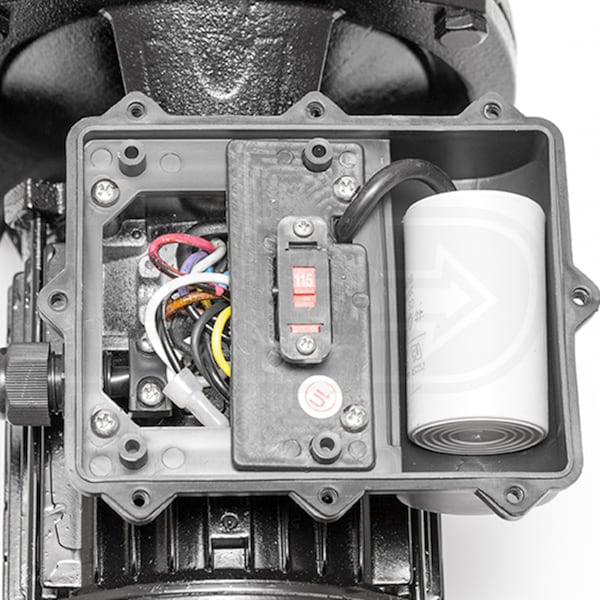

- 115/230V Dual Voltage 1/2 HP Electric Motor w/ Overload Protection
- Factory set @ 115V for easy installation
- Permanently lubricated ball bearings for smoother operation

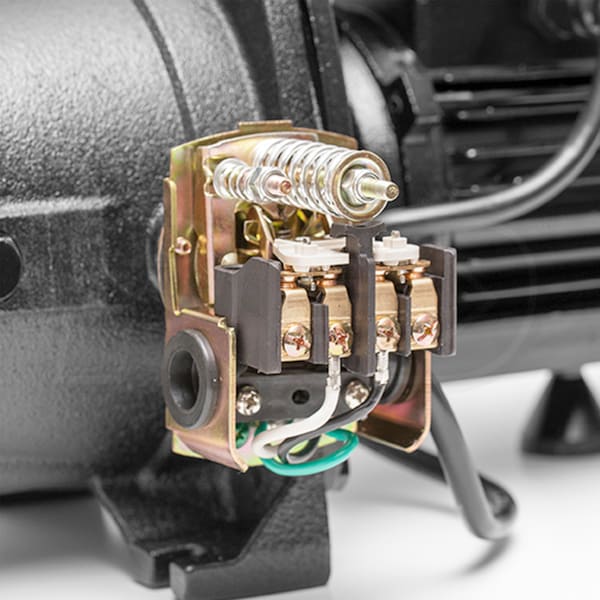

- Pre-mounted Pressure Switch (20/40 Factory Preset)
- Fully adjustable design makes it easy to adapt to your current plumbing system
- Allows for a maximum of 58 PSI
- Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
- Corrosion-resistant design provides excellent pump performance
- 1-1/4" FNPT - Intake/Suction & 1" Discharge
- Compatible with most residential plumbing applications
- 1-Year Pump & 3-Year Motor Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
94515
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
6.4/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
9.9 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25-90 Feet
Maximum PSI
58
Submersible
No
Engine
Horsepower
0.5 hp
Consumer Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
33 Pounds
Consumer Warranty
1 Year
UPC
725113945153
Accessories
Pressure Switch
Yes
Injector Kit
Yes
