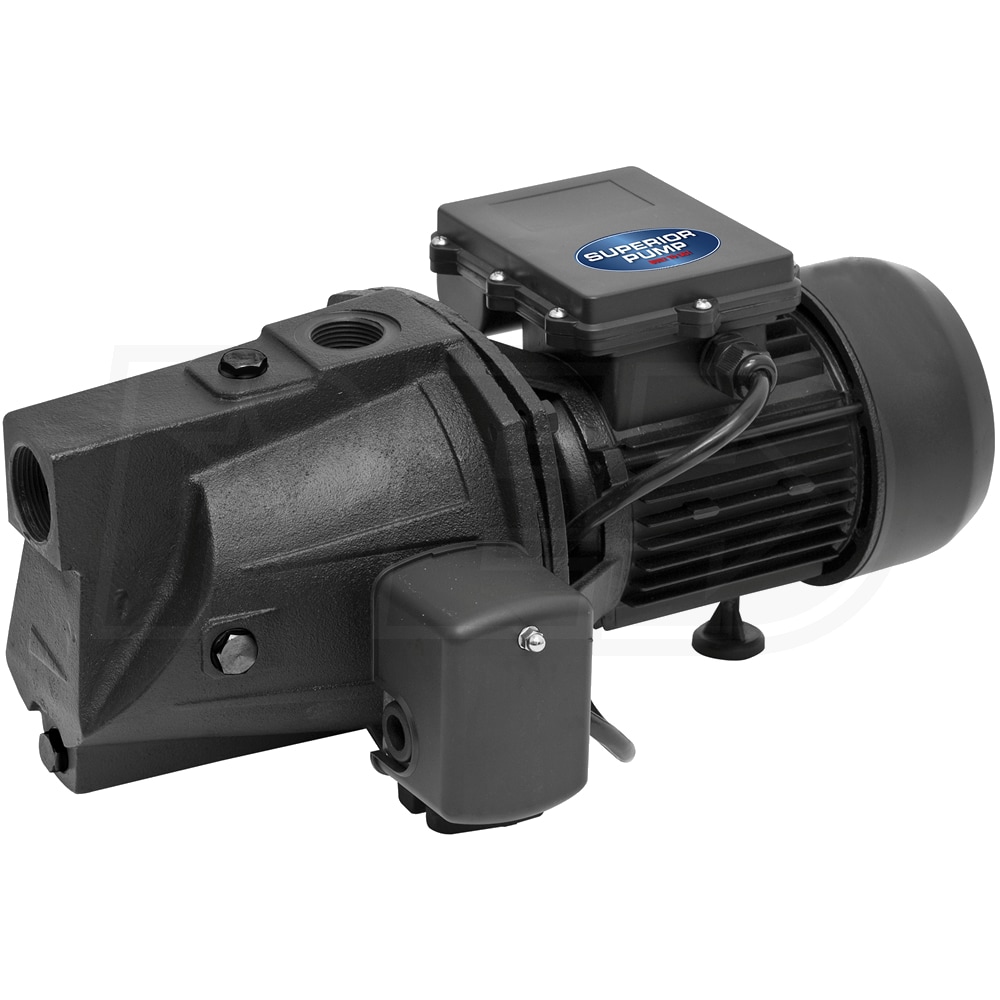

Superior Pump 12.5 GPM 1/2 HP Cast Iron Shallow Well Jet Pump

Superior Pump 12.5 GPM 1/2 HP Cast Iron Shallow Well Jet Pump
Model: 94505-0
$159.00
Only 4 In-Stock
Ships Monday, Jun 25th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$159.00Buy Now
No Sales Tax* (Except IL)$159.00Visit Site

(as of 11:12 CST - Details) Sales Tax Extra $185.06Visit Site
Only 4 In-Stock
Ships Monday, Jun 25th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
GPM
12.5
Gallons
Inlet Size
1-1/4"
GPM
12.5 Gallons
Features
Features
  • Superior 1/2 HP Shallow Well Jet Pump
  • For shallow well applications up to 25' depth
  • Provides up to 12.5 GPM
  • Cast Iron Pump Body & Seal Plate
  • Robust design, extends pump life
  • 115/230V Dual Voltage 1/2 HP Electric Motor w/ Overload Protection
  • Factory set @ 115V for easy installation
  • Permanently lubricated ball bearings for smoother operation
  • Pre-mounted Pressure Switch (20/40 Factory Preset)
  • Fully adjustable design makes it easy to adapt to your current plumbing system
  • Allows for a maximum of 67 PSI
  • Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
  • Corrosion-resistant design provides excellent pump performance
  • 1-1/4" FNPT - Intake/Suction & 1" Discharge
  • Compatible with most residential plumbing applications
  • 1-Year Pump & 3-Year Motor Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6.4/3.2
Thermal Protection
Yes
Engine
Horsepower
0.5 hp
Consumer Engine Warranty
3 Years
Pump
Gallons Per Minute
12.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
67
Submersible
No
Accessories
Pressure Switch
Yes
Overview
Weight
34 Pounds
Consumer Warranty
1 Year
UPC
725113945054

Inlet Size
1-1/4"
Style
GPM
12.5
Gallons
Inlet Size
1-1/4"
GPM
12.5 Gallons
Features
Features
  • Superior 1/2 HP Shallow Well Jet Pump
  • For shallow well applications up to 25' depth
  • Provides up to 12.5 GPM
  • Cast Iron Pump Body & Seal Plate
  • Robust design, extends pump life
  • 115/230V Dual Voltage 1/2 HP Electric Motor w/ Overload Protection
  • Factory set @ 115V for easy installation
  • Permanently lubricated ball bearings for smoother operation
  • Pre-mounted Pressure Switch (20/40 Factory Preset)
  • Fully adjustable design makes it easy to adapt to your current plumbing system
  • Allows for a maximum of 67 PSI
  • Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
  • Corrosion-resistant design provides excellent pump performance
  • 1-1/4" FNPT - Intake/Suction & 1" Discharge
  • Compatible with most residential plumbing applications
  • 1-Year Pump & 3-Year Motor Limited Warranty
